Explore Auto Master

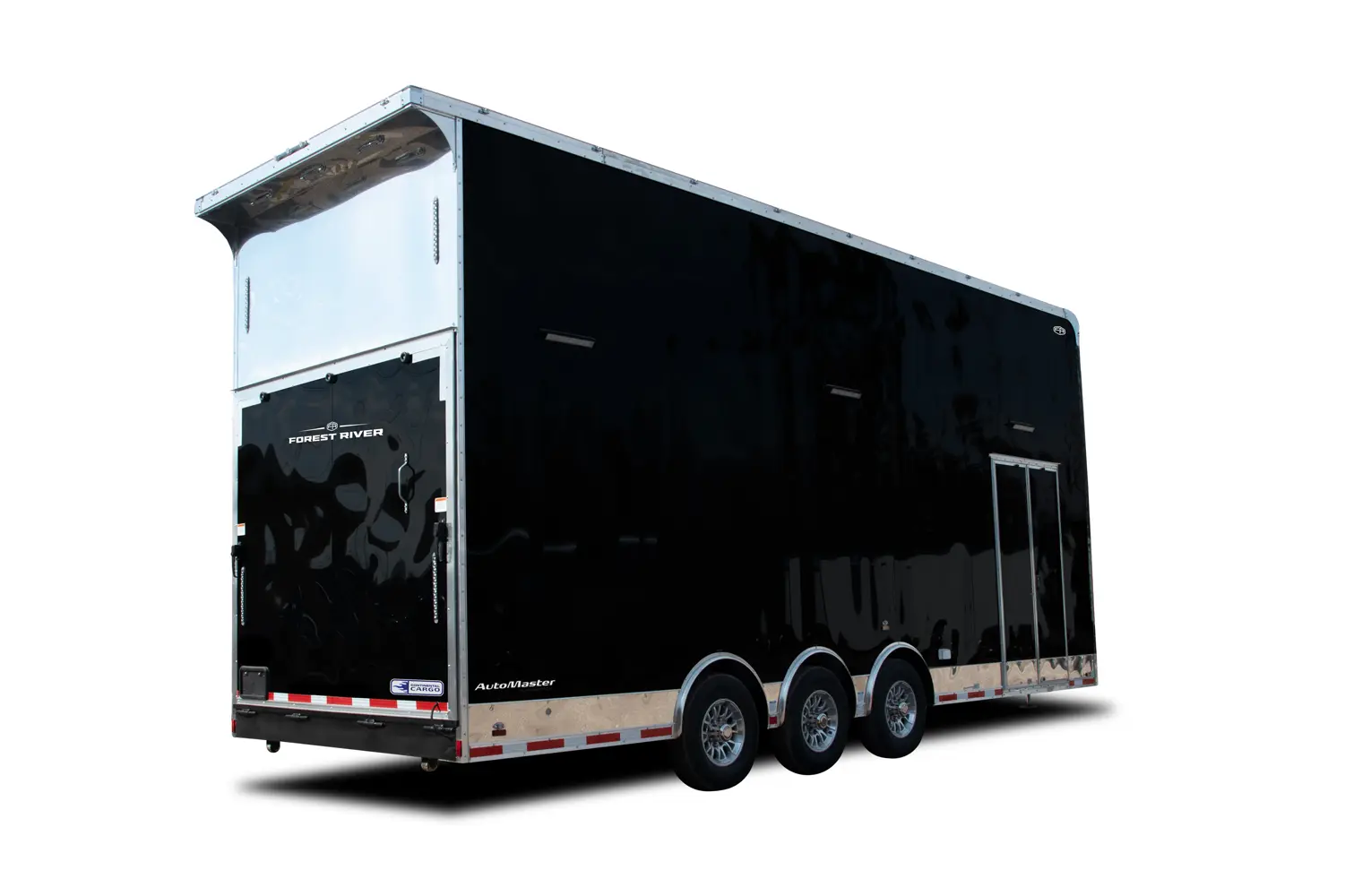

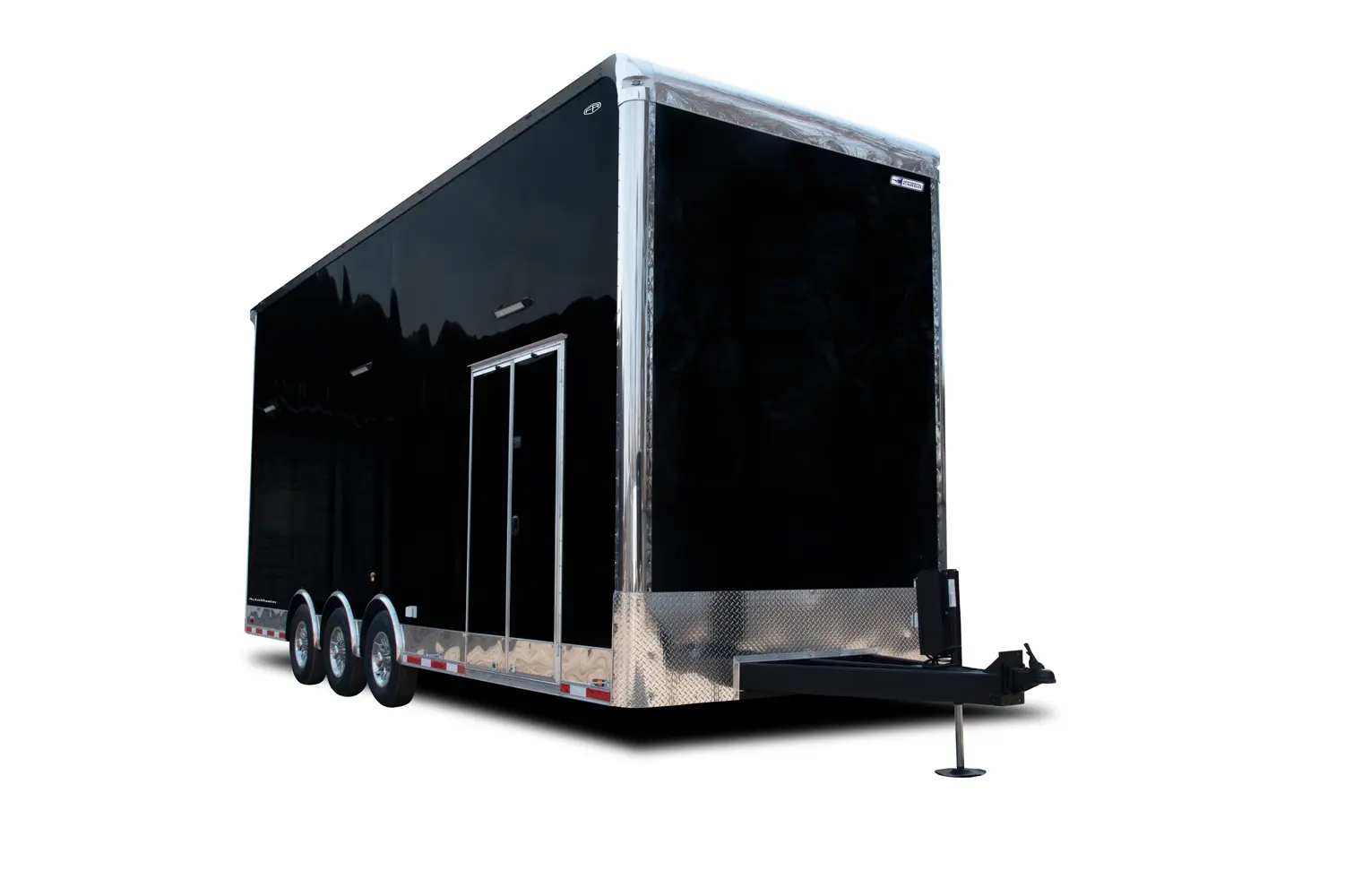

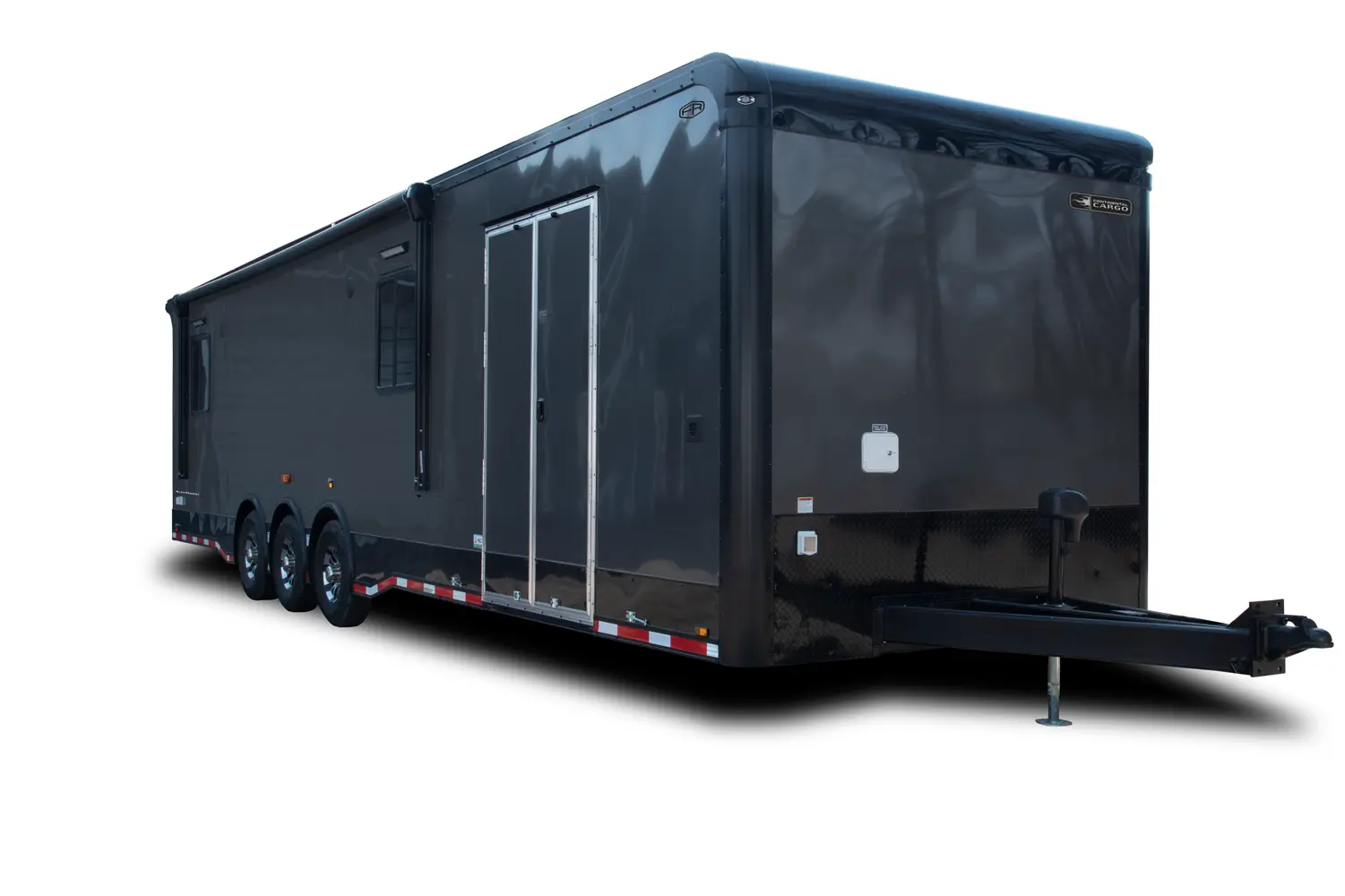

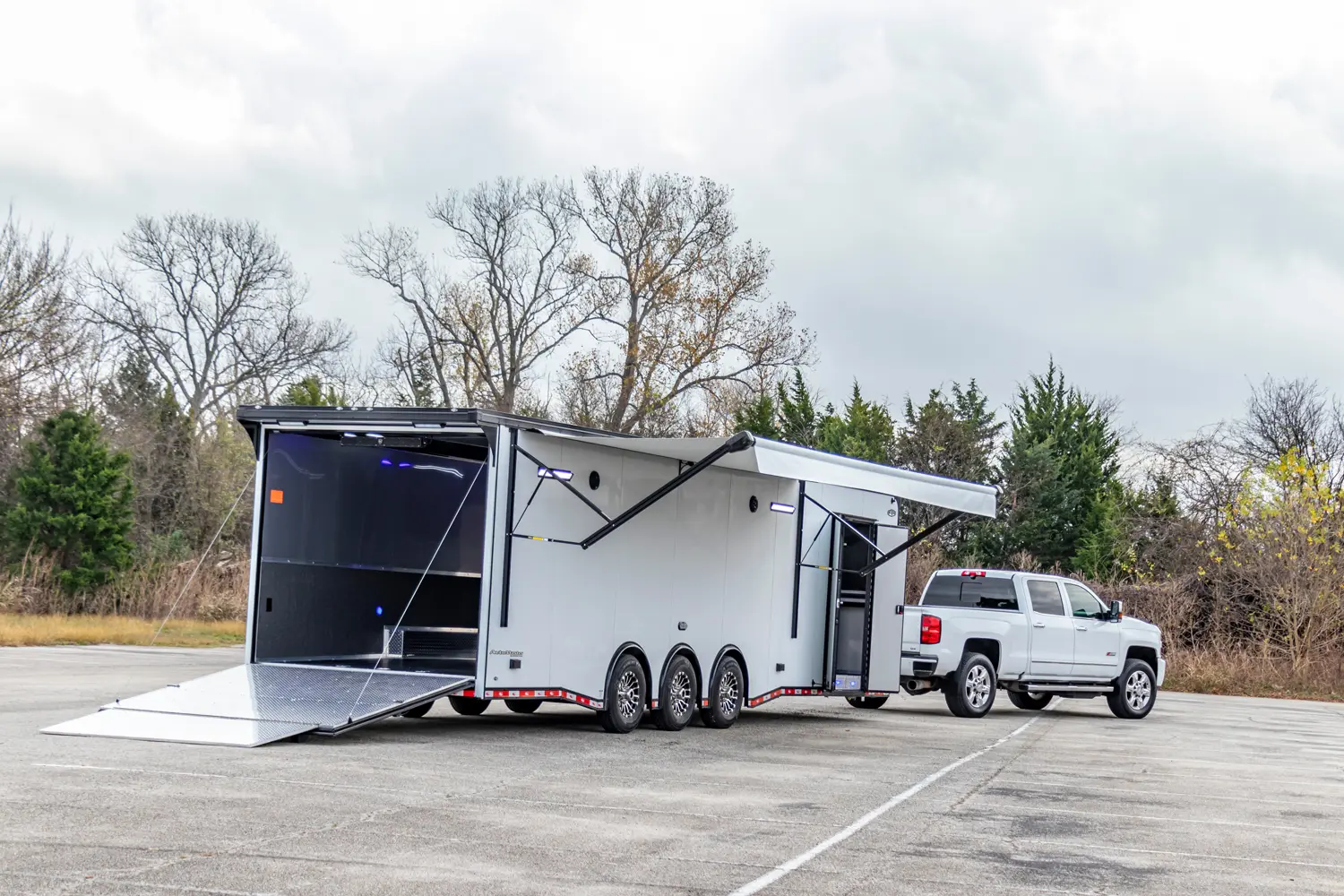

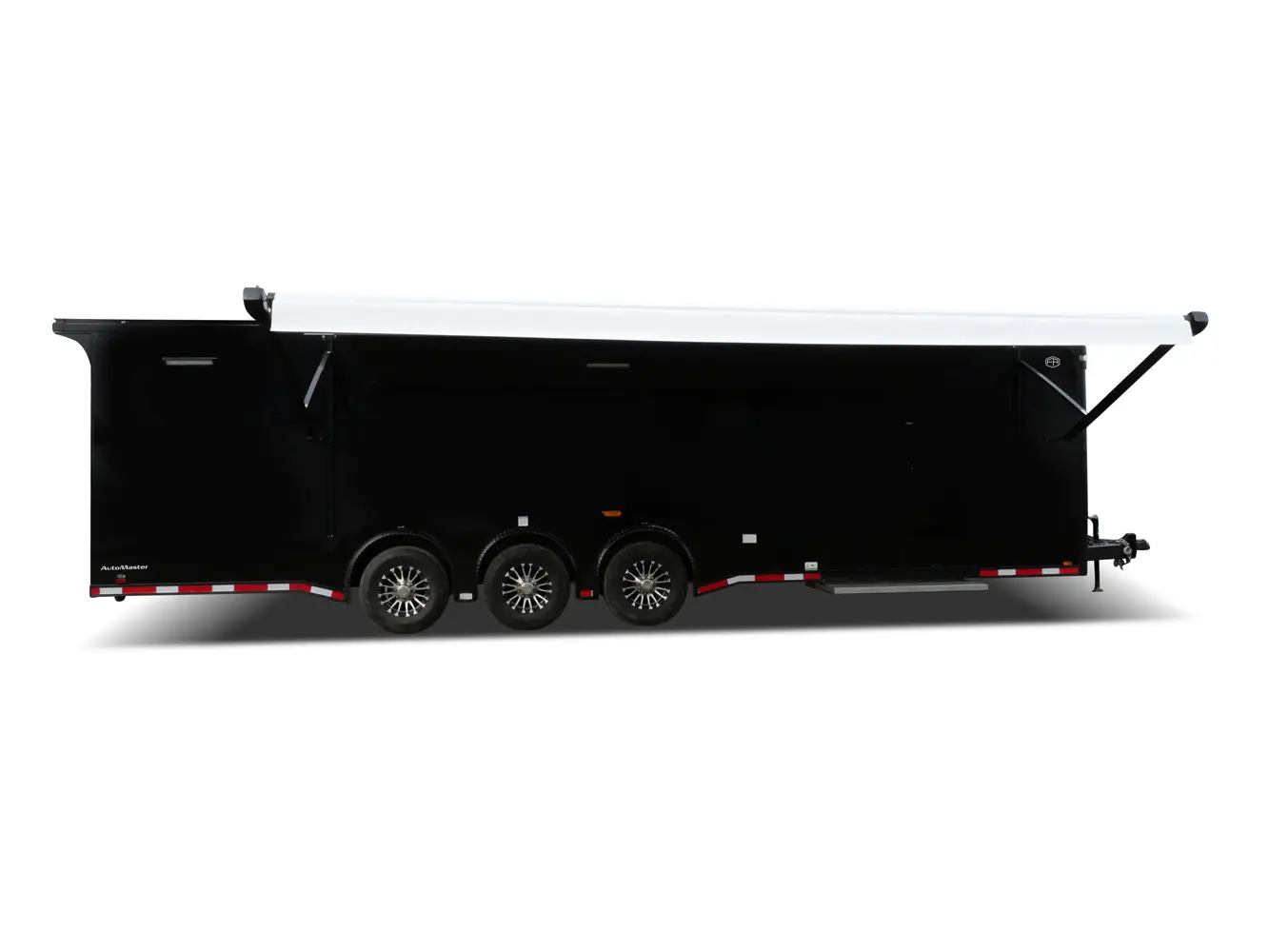

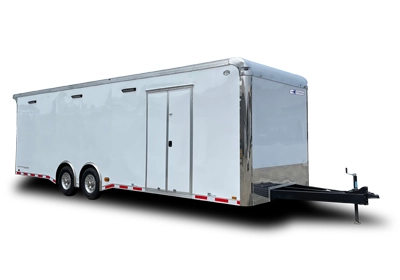

Auto Master auto haulers range in size from a 8.5’ x 18’ tandem axle to a 8.5’ x 48’ triple axle model. Electric brakes are standard on all Auto Master models. The standard payload capacities range from 2,680 to 6,674 lb. on tandem axle bumper pull models to 7,900 to 10,000 lb. on triple axle gooseneck models. A ramp door with no-show beavertail is standard on all Auto Master auto haulers.
-
- 102" Wide Body Design

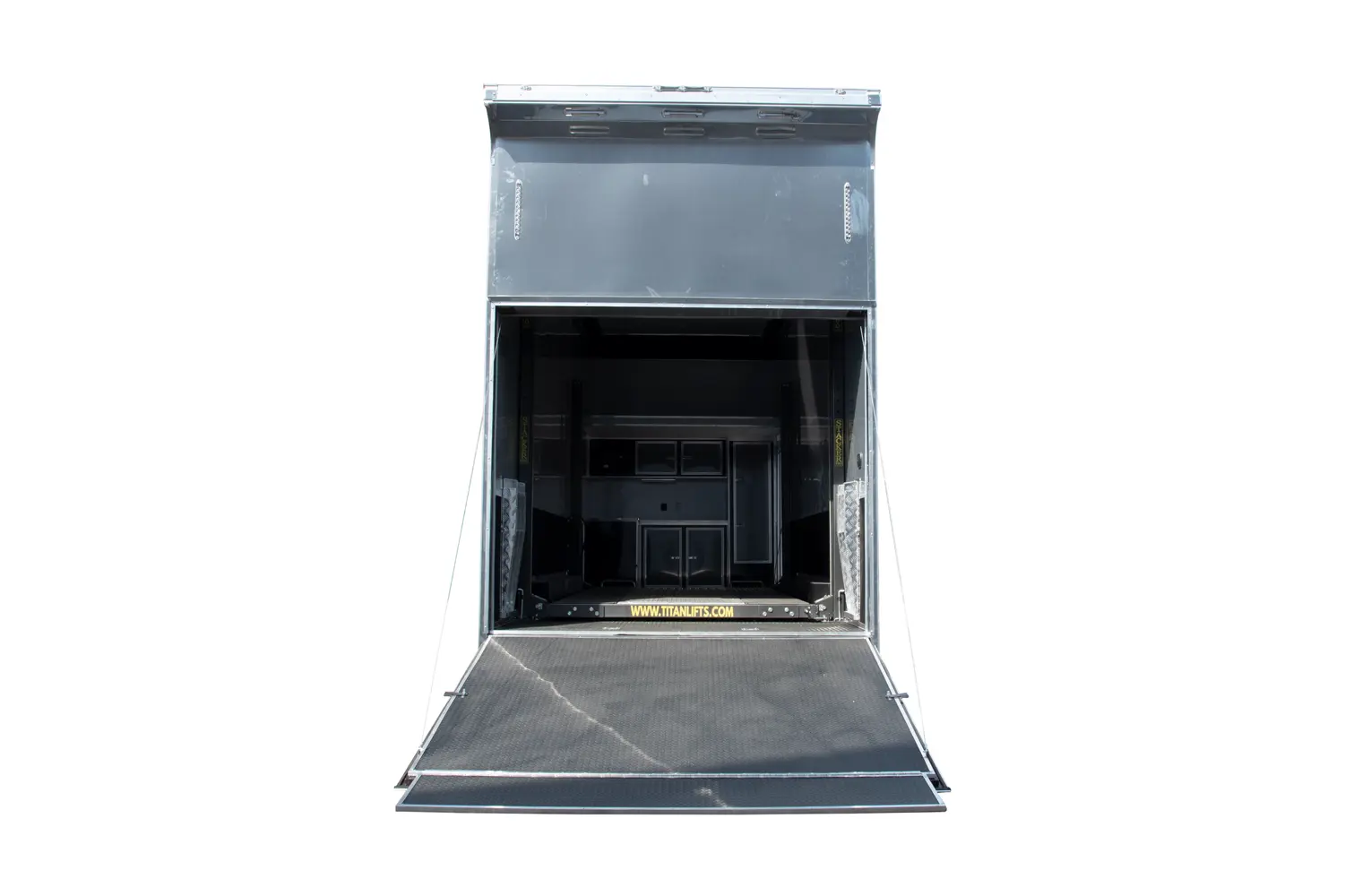

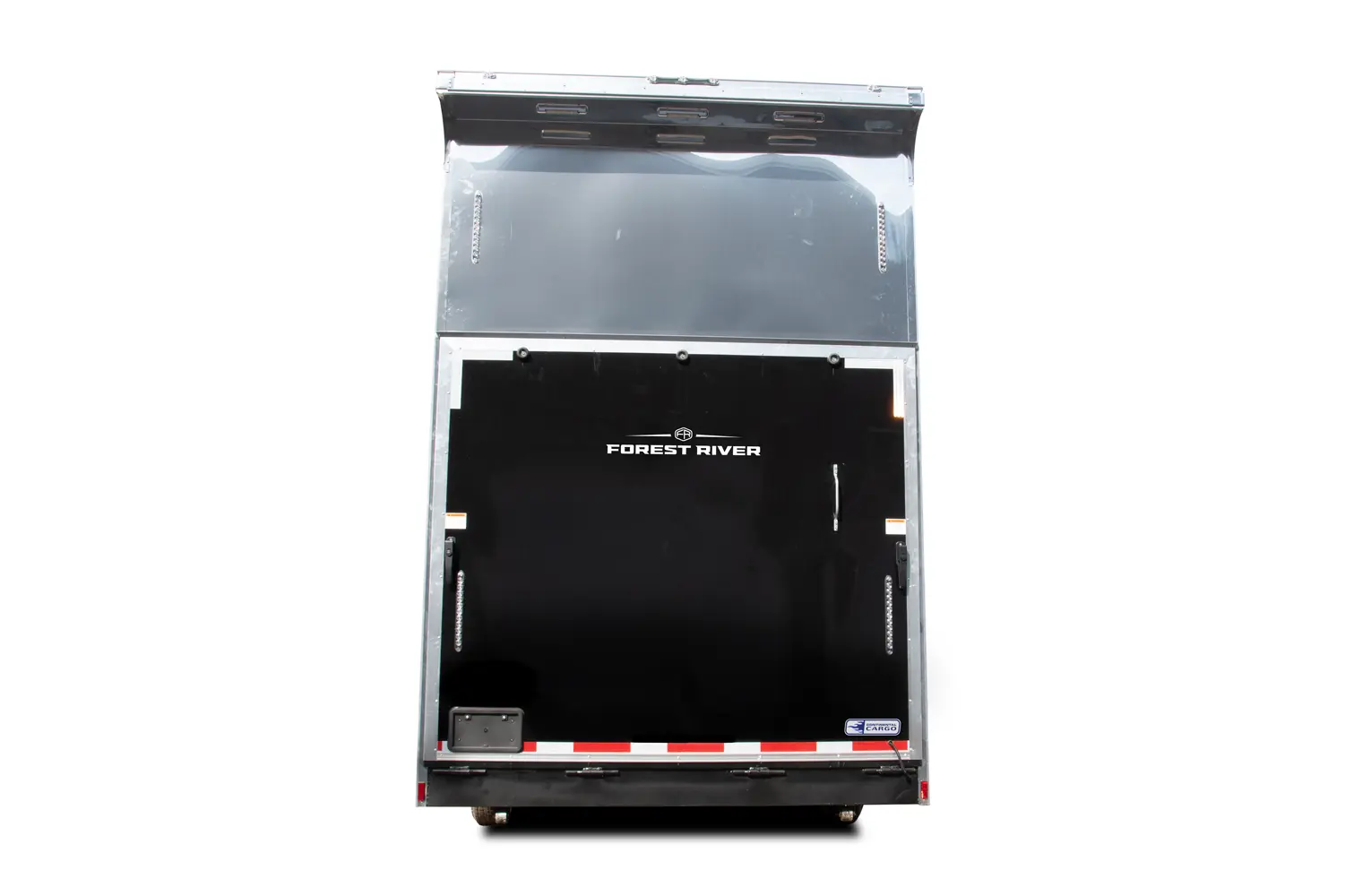

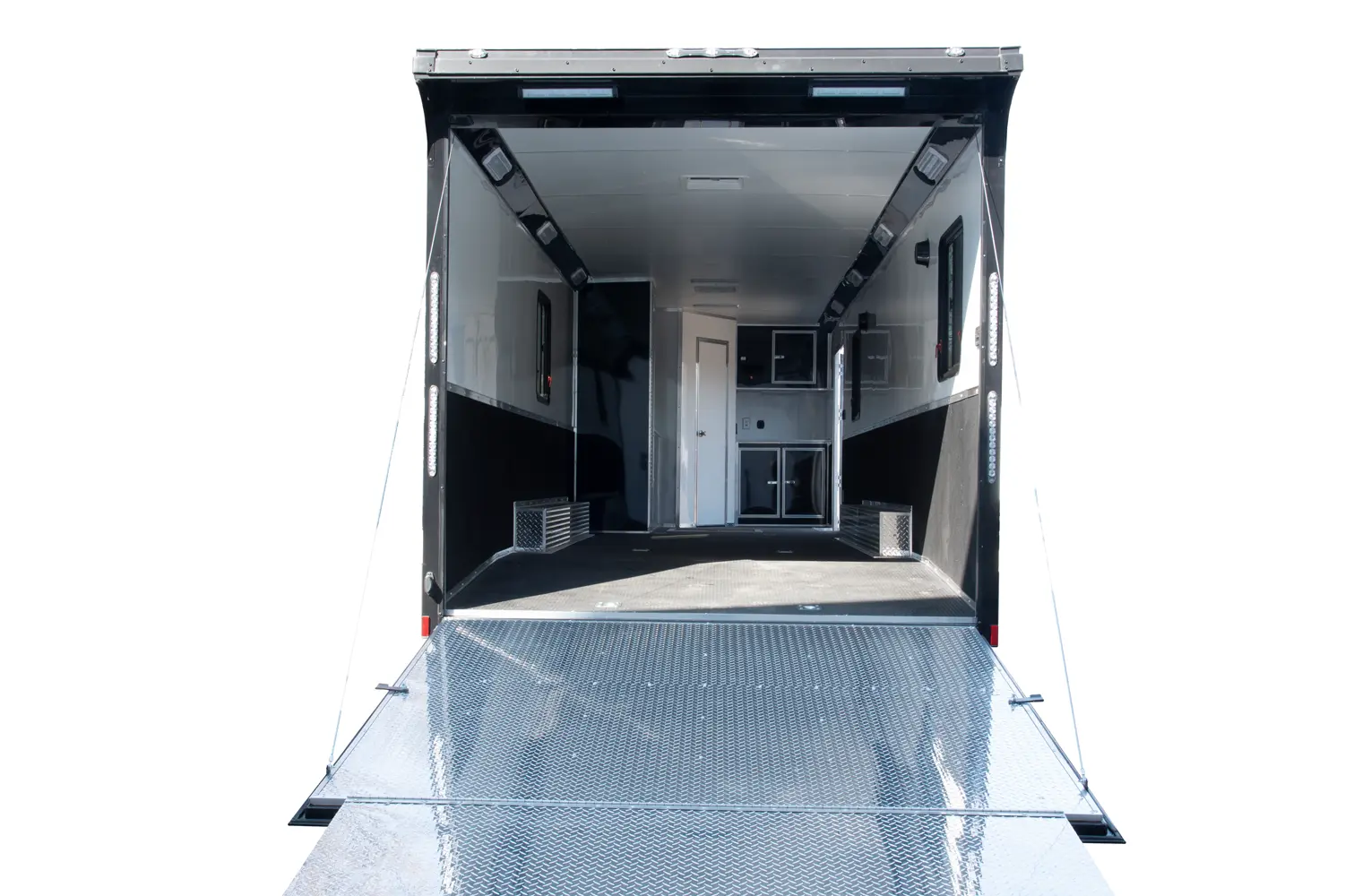

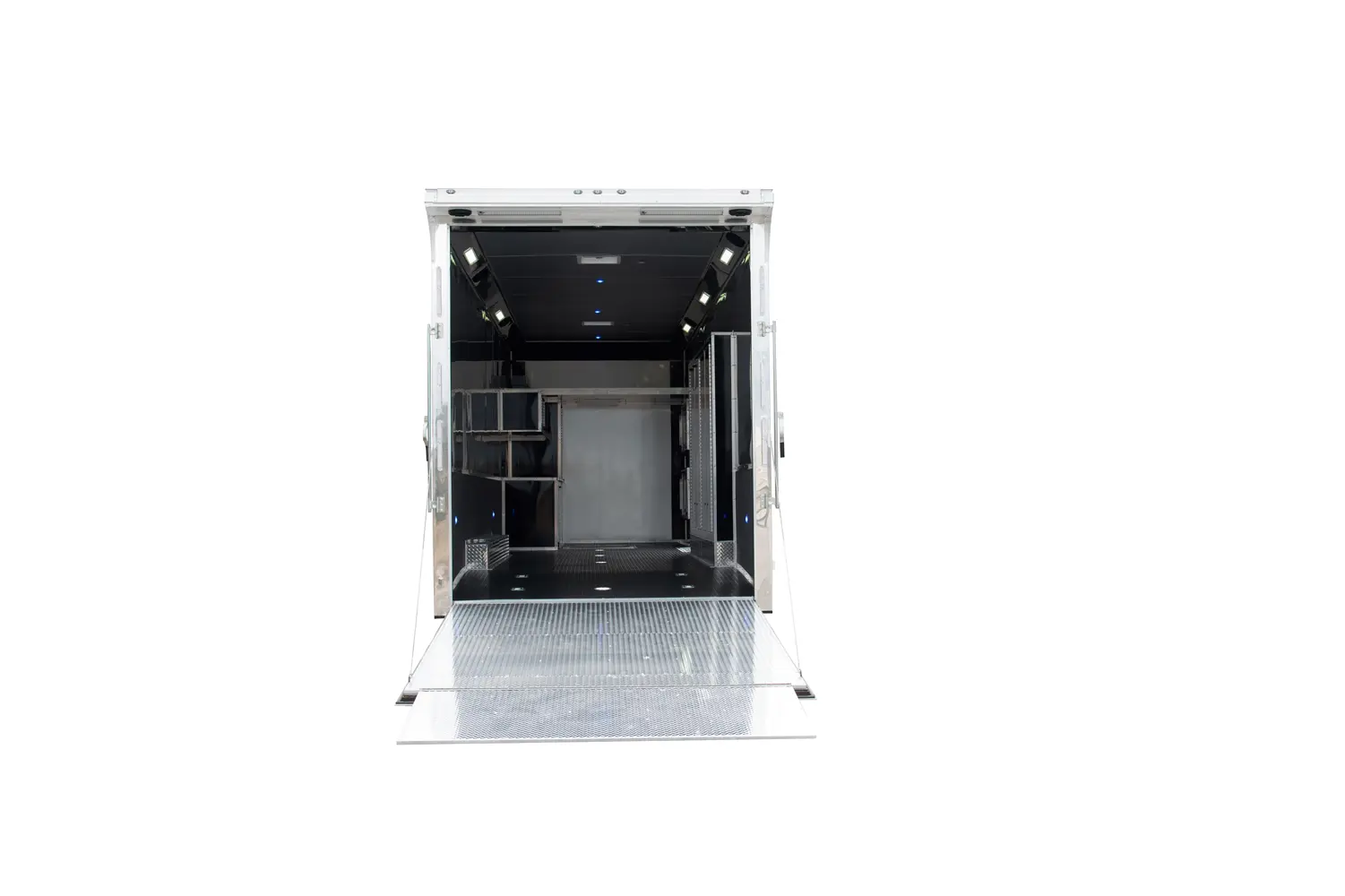

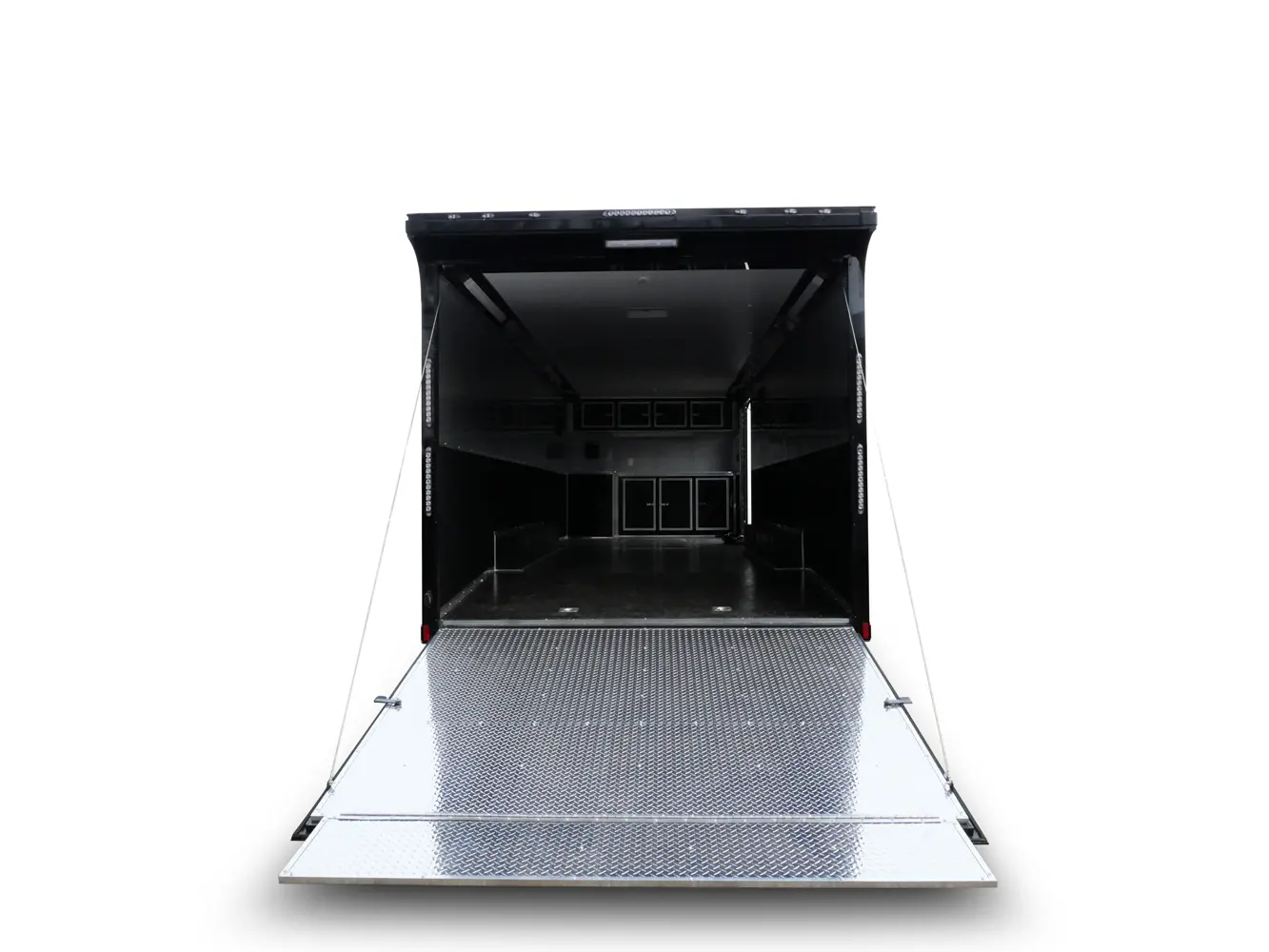

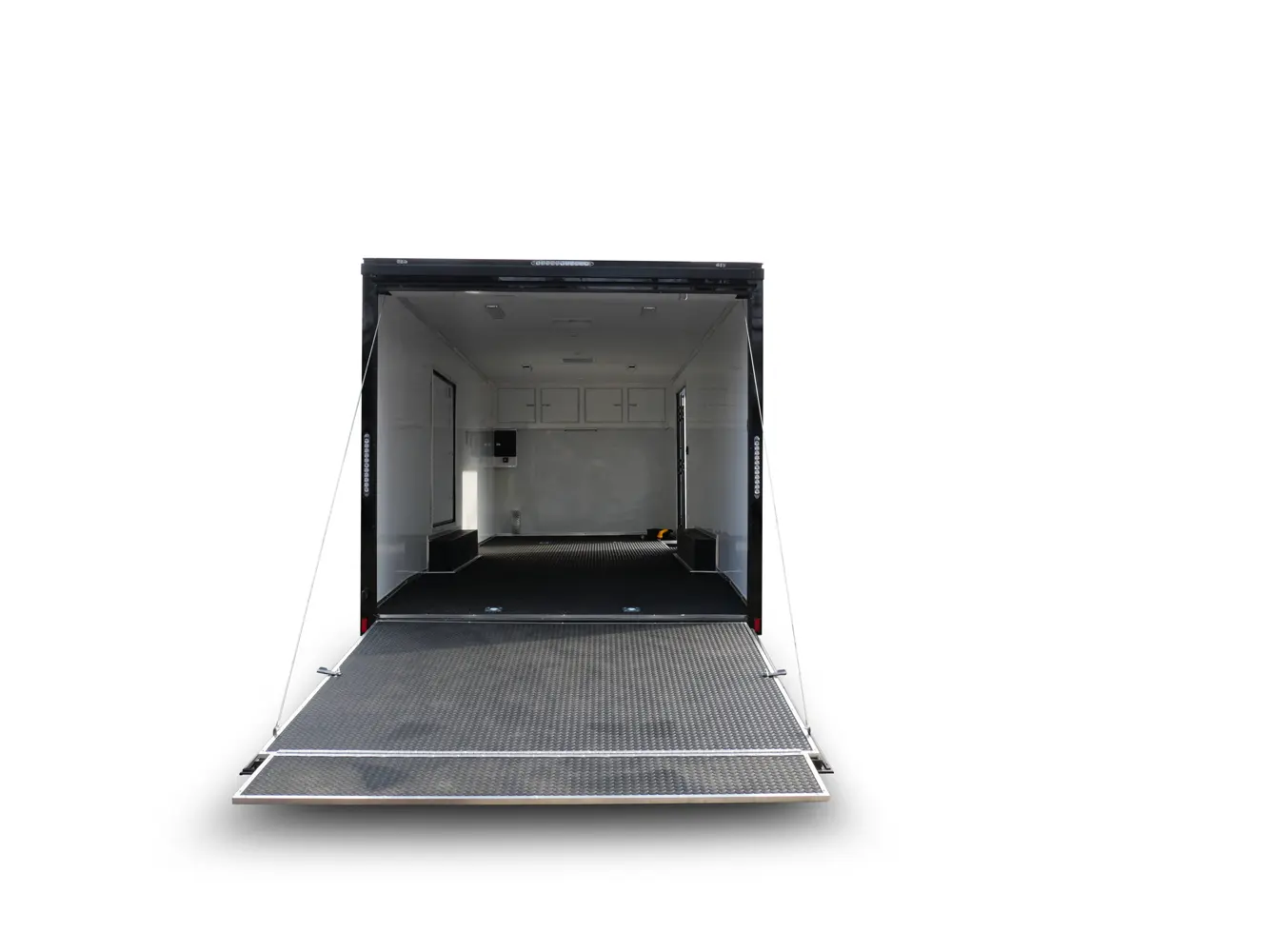

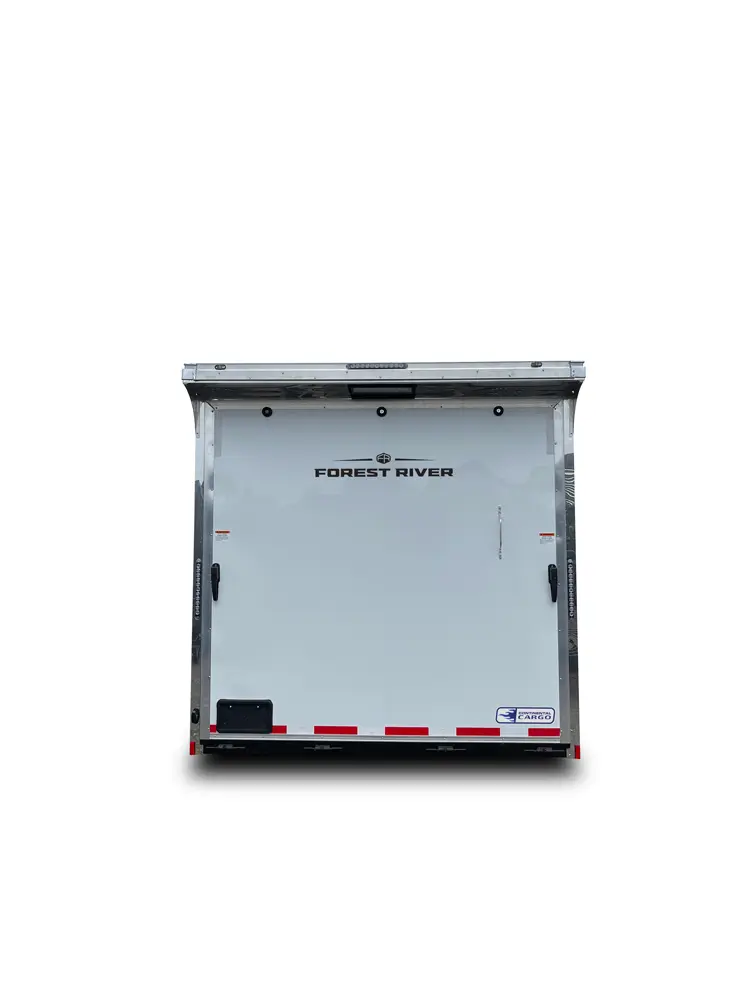

- Ramp Door with Spring Assist
- No-Show Beavertail

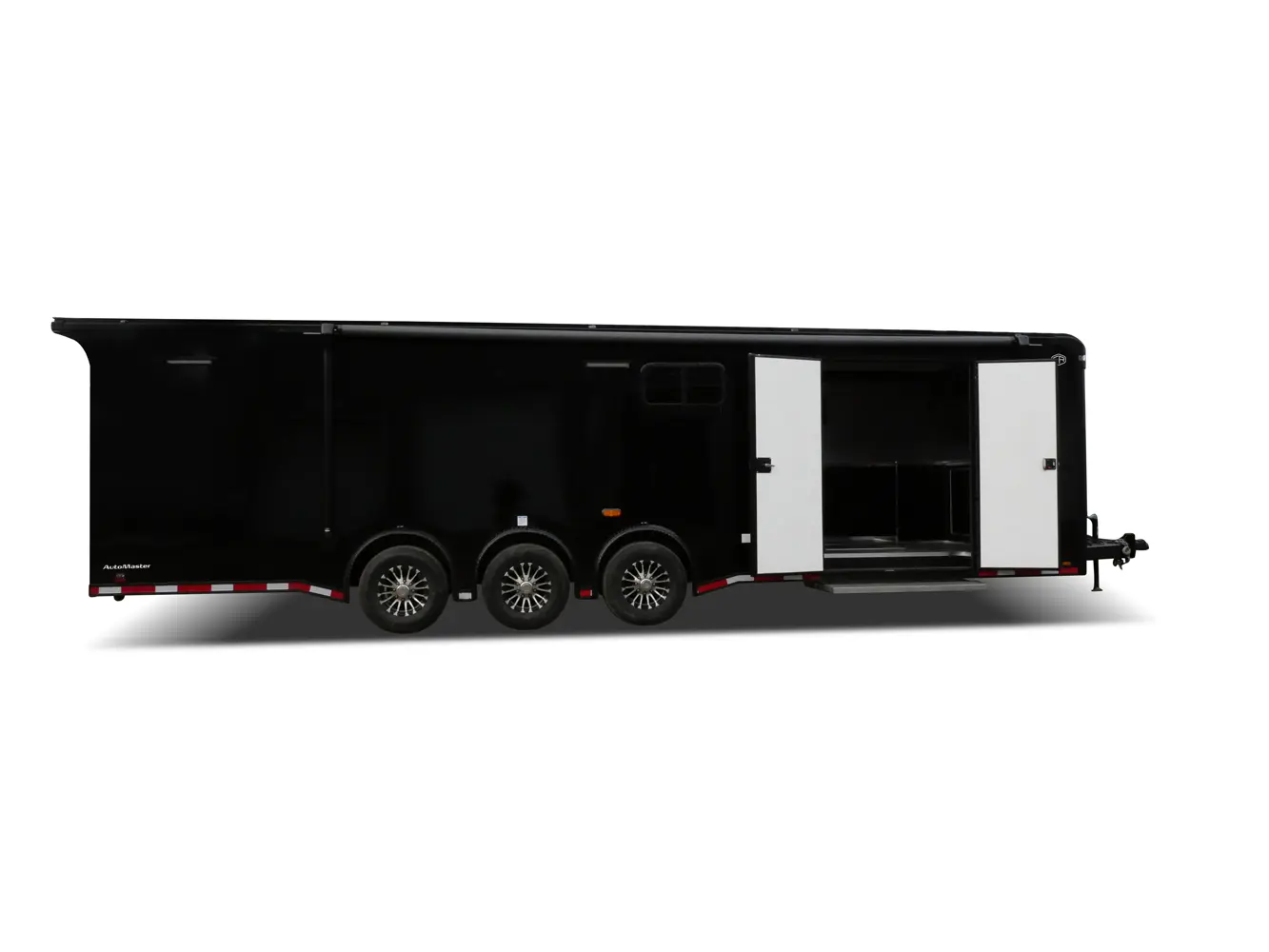

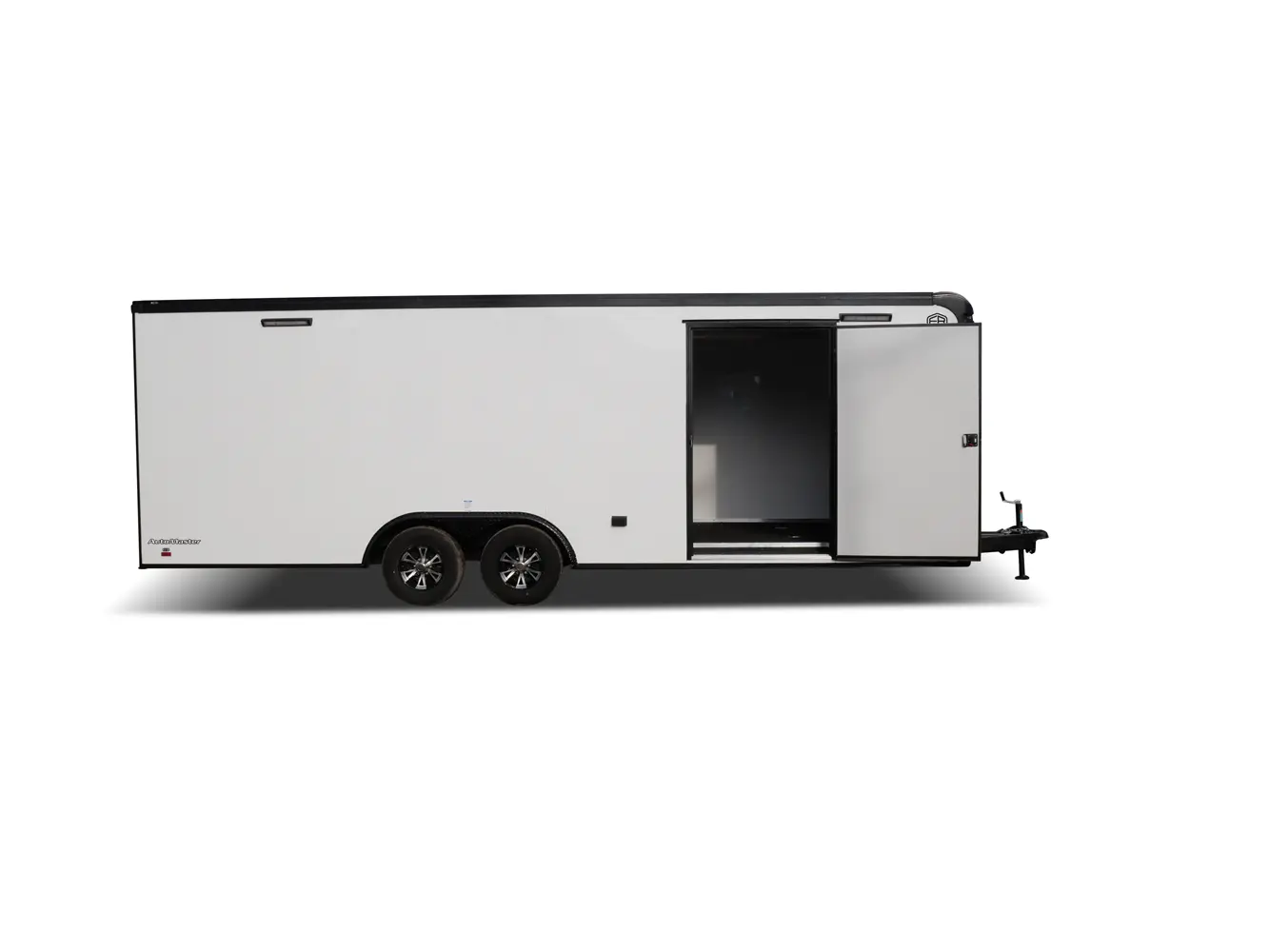

- 48" Side Door with Flushlock & Steel Step

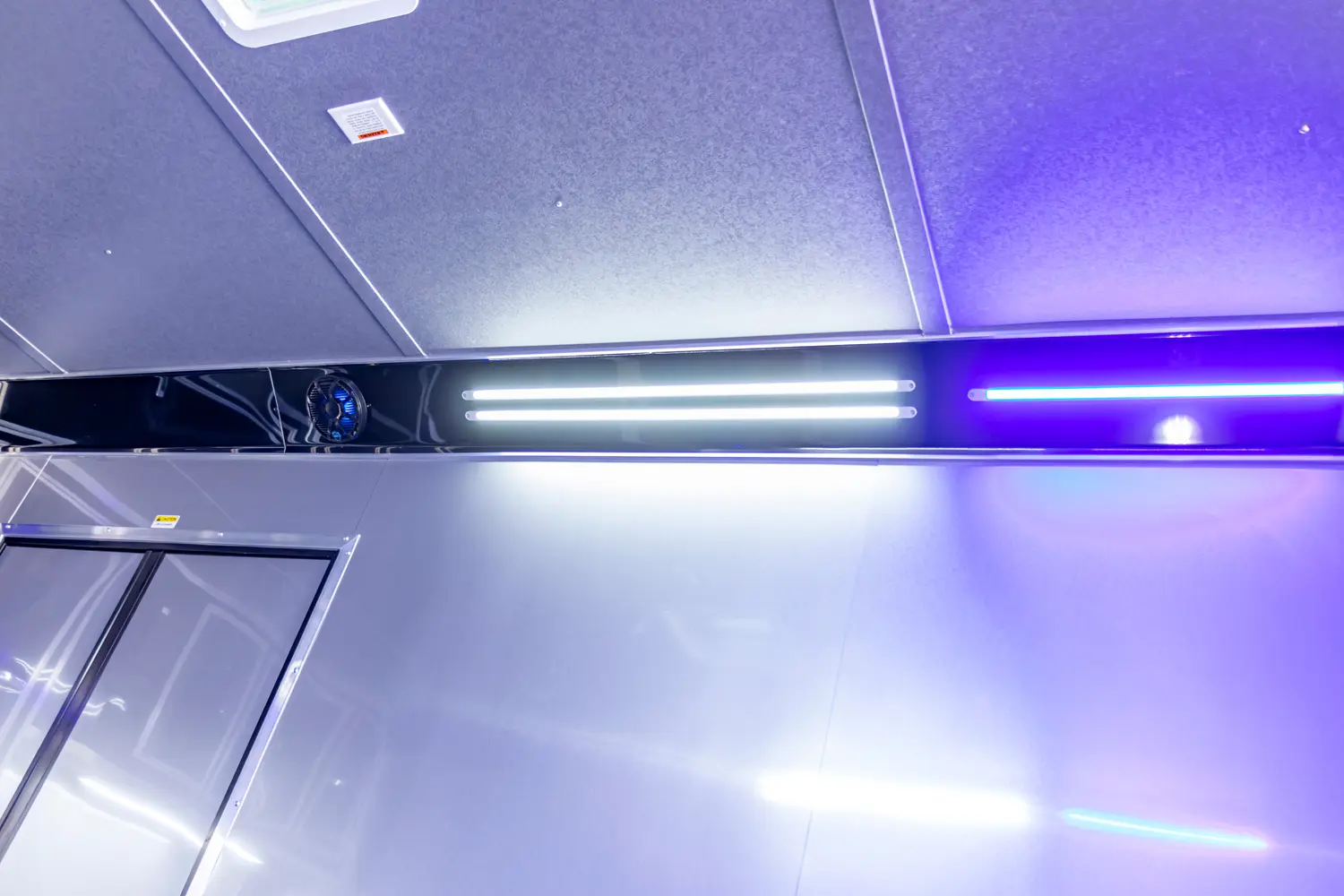

- (4) LED Dome Lights w/ (2) Switches
- Semi-Style Camlock Door Latches
- Safety-Spring Chains on Side Door
- Door Hold-Backs on All Doors
- Torsion Wide-Track Axle
- All-Wheel Electric Brakes with Breakaway
- 12-Volt Breakaway Switch with Battery
- E-Z Lube Hubs with Grease Caps
- Aluminum Wheels
- Chrome Center Caps
- Radial Tires
- 1-Piece Aluminum Roof
- Mill-Finish Aluminum Top Rails
- Insulated White Vinyl Ceiling w/ Metal Trim
- Steel Sealed Sidewalls
- (2) Non-Powered Roof Vents
- 3/8" Plywood Wall Liner with Lauan Trim
- 3/4" Plywood Floor w/ 4 – 5,000 lb. D-Rings
- Exterior ATP Fenders
- Stainless Steel Front Corner Posts
- Cast Aluminum Front & Rear Corners
- Clear Lens LED Clearance Lights
- Clear Lens LED Strip Tail Lights
- Molded License Plate Holder and Light
- .030 Aluminum Exterior (Avail. in 14 Colors)
- Screwless Exterior Metal
- Anodized Aluminum Wrap on rear
- Urethane Coating on Tongue and Rear Member
- Tongue Jack w/ Sand Pad
- Welded Safety Chains
- Full-Color Decals
- Grease Zerks on Rear Ramp Hinges
- 24" ATP Stoneguard
-
- Adds All Items in the 110V Racer’s Package
- Adds All Items in the Aluminum Package
- .040 Exterior Metal (White or Black)

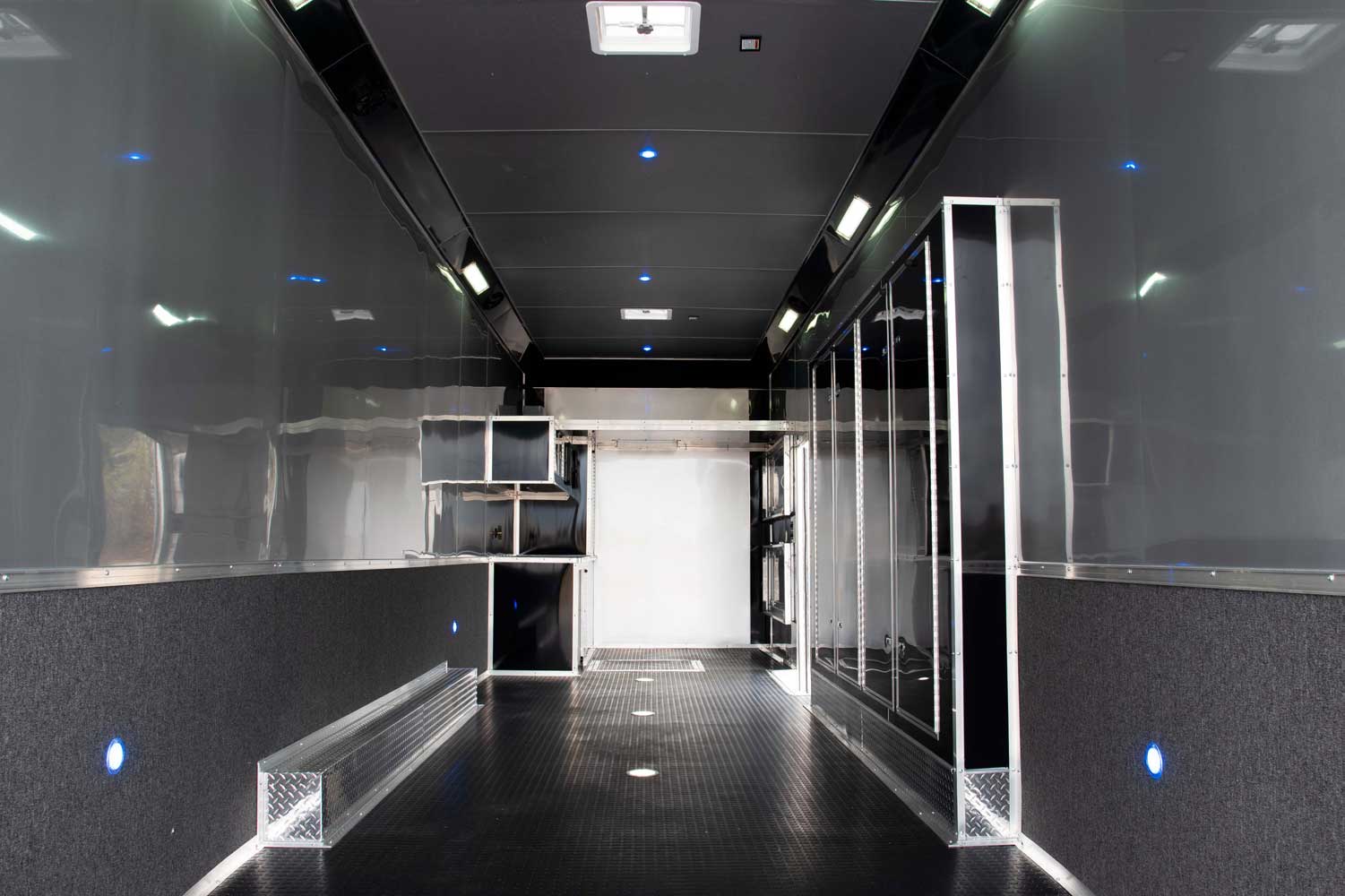

- Rubber Floor Covering Front 8’ w/ ATP Rear and on Ramp
- Double 24” RV Doors with Piano Hinges and Flush Lock

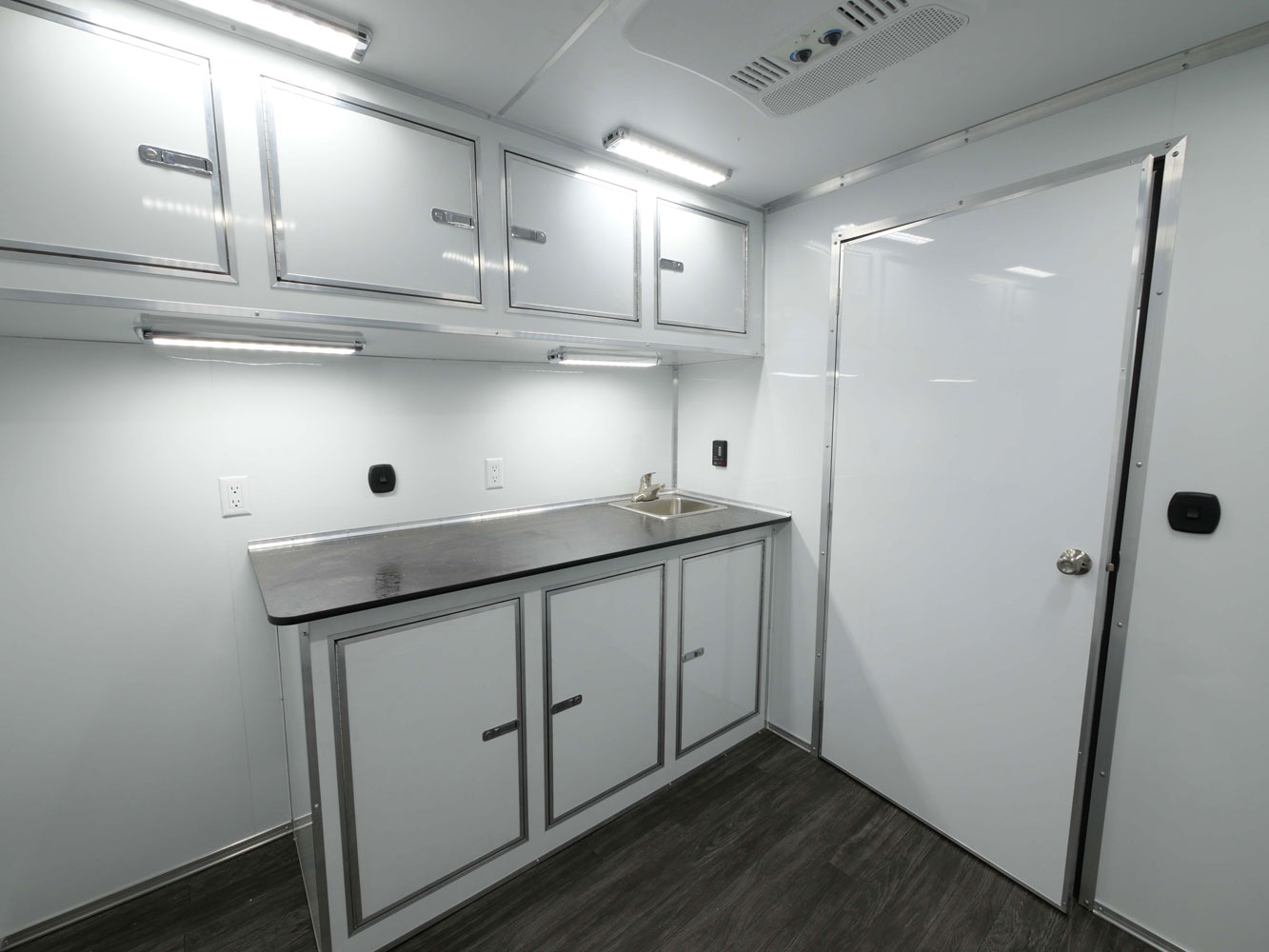

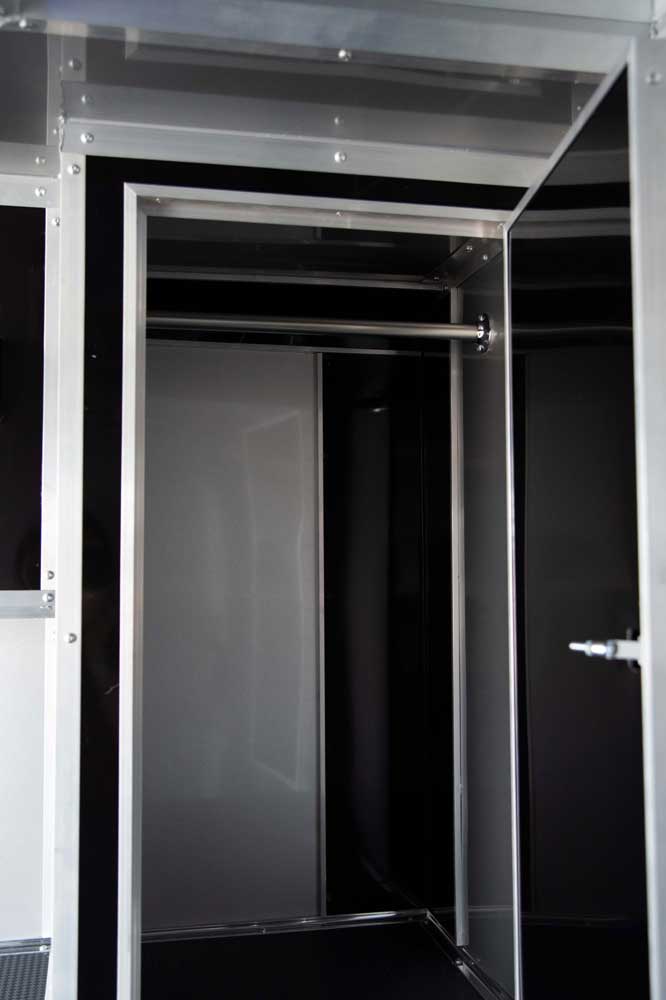

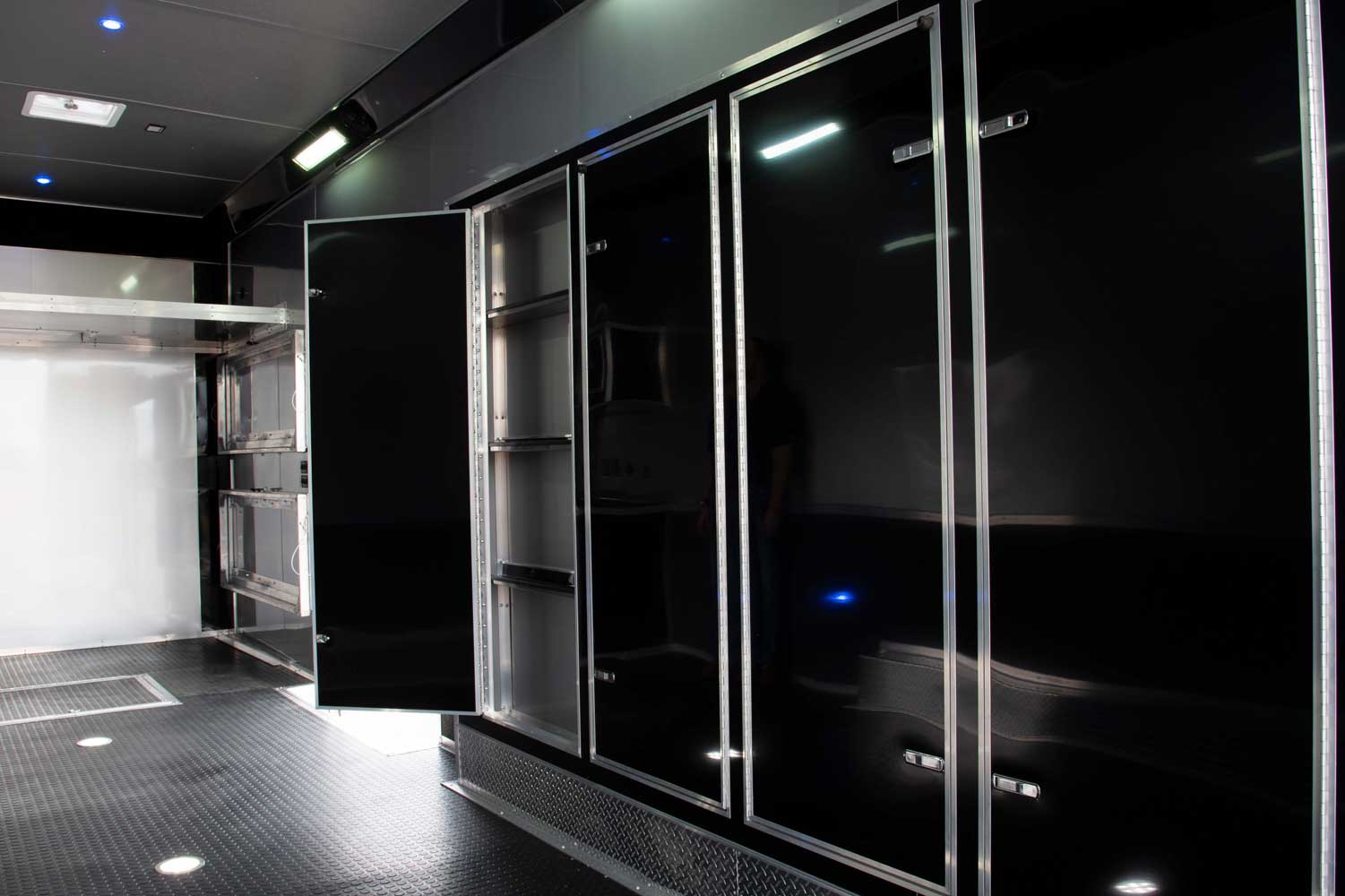

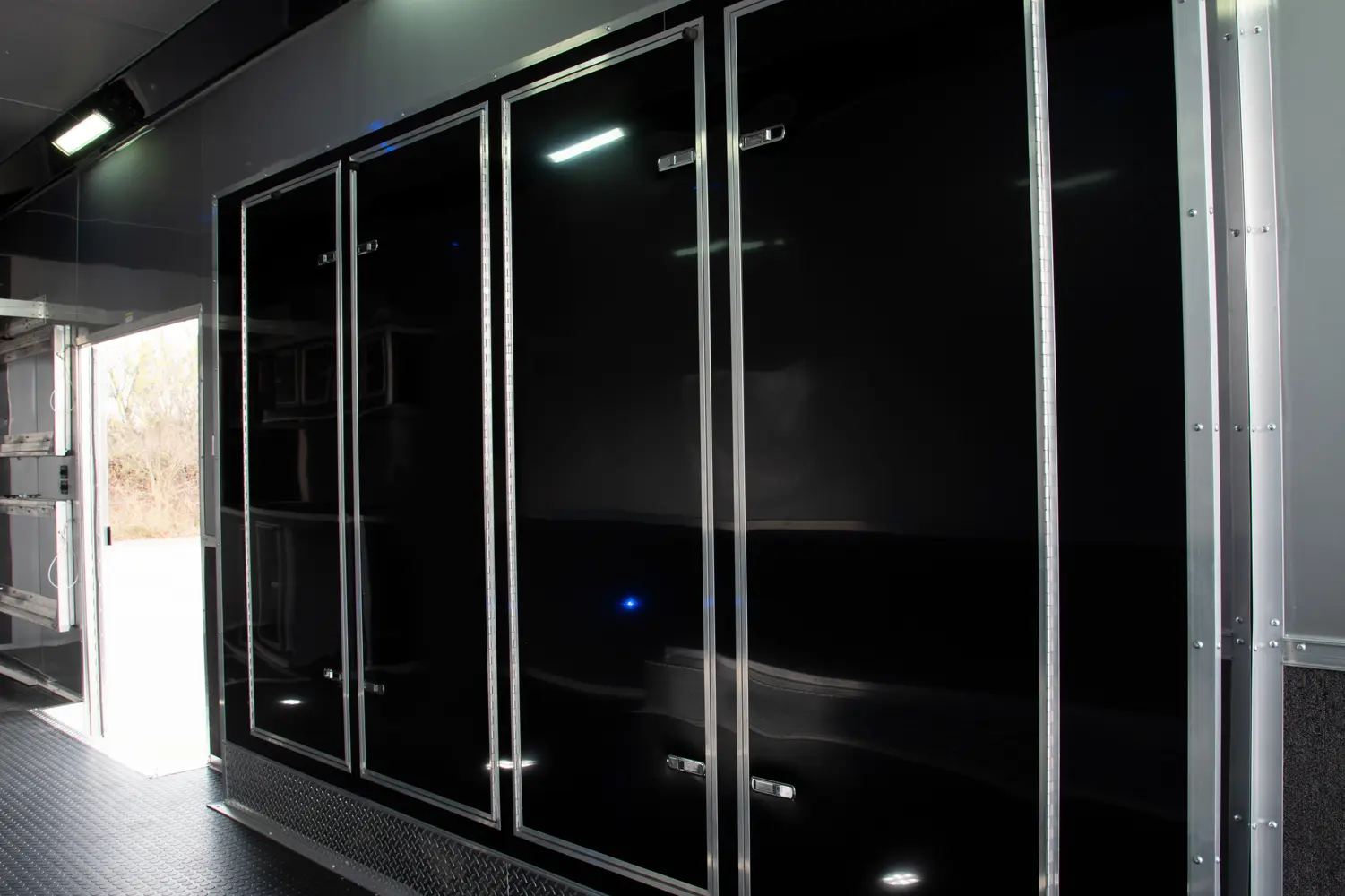

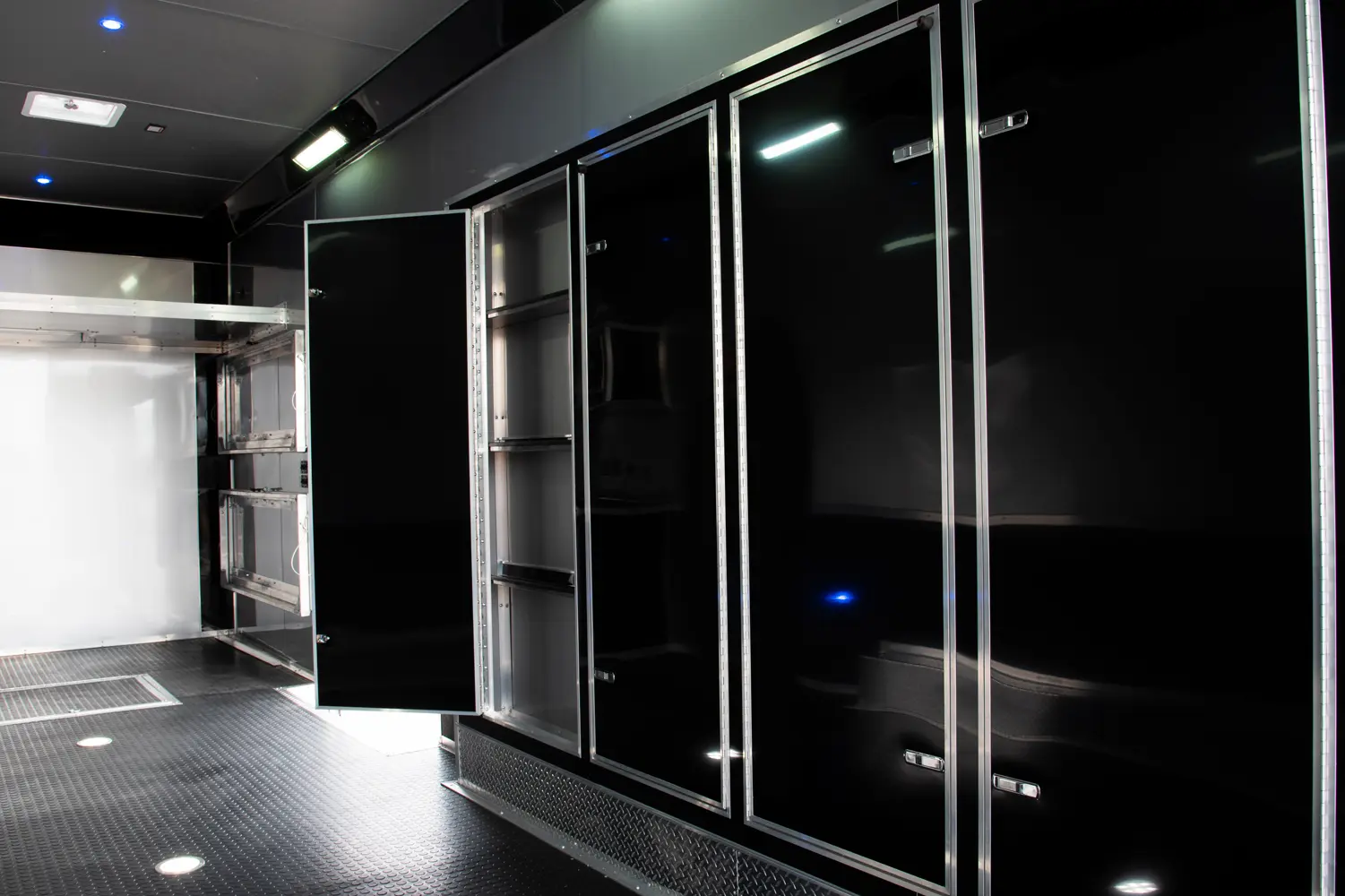

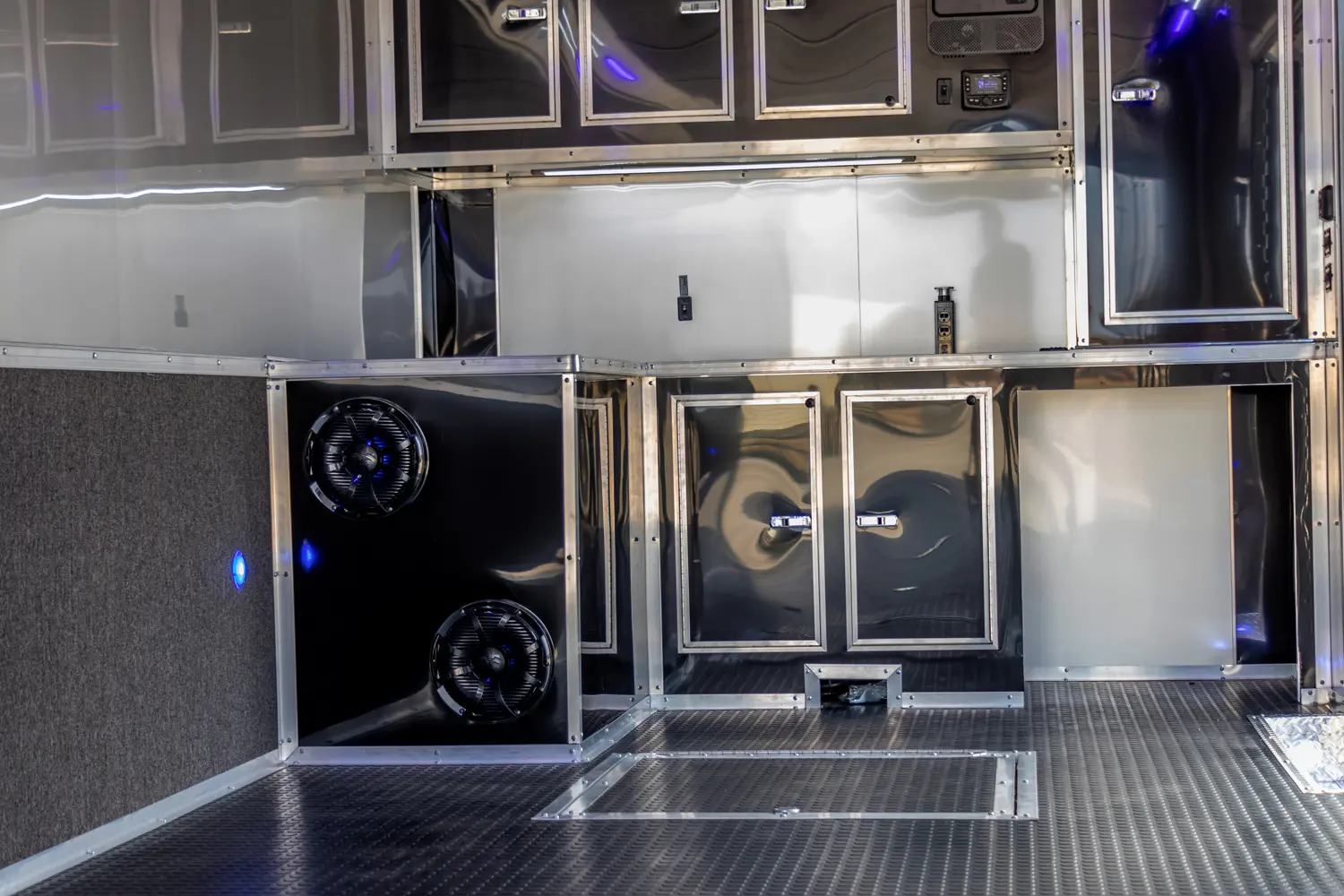

- L-Shaped Base Cabinet with Overhead and Wardrobe
- Glued Interior Aluminum Wall Panels
- Freezer-Type Ramp Door Latches
- Race Mate (4) Piece Accessory Pack
- 36” x 24” Vented Generator Door
Specifications
| AM8518TA2 | AM8520TA2 | AM8522TA2 | AM8524TA2 | AM8518TA3 | AM8520TA3 | AM8522TA3 | AM8524TA3 | AM8526TA3 | AM8528TA3 | AM8530TA3 | AM8532TA3 | AMG/F8526TTA3 | AMG/F8528TTA3 | AMG/F8530TTA3 | AMG/F8532TTA3 | AMG/F8534TTA3 | AMG/F8536TTA3 | AMG/F8538TTA3 | AMG/F8540TTA4 | AMG/F8542TTA4 | AMG/F8544TTA4 | AMG/F8546TTA4 | AMG/F8548TTA4 | |
| GVWR: | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 14700 lb. | 14700 lb. | 14700 lb. | 14700 lb. | 14700 lb. | 14700 lb. | 14700 lb. | 18000 lb. | 18000 lb. | 18000 lb. | 18000 lb. | 18000 lb. |
| Payload Capacity: | 3760 | 3400 | 3040 | 2680 | 6524 | 6160 | 5796 | 5420 | 5068 | 4704 | 4340 | 3976 | 8100 | 7900 | 7700 | 7500 | 7300 | 7150 | 7000 | 10000 | 9700 | 9400 | 9100 | 8760 |
| Exterior Length: | 21' 10" | 23' 10" | 25' 10" | 27' 10" | 21' 10" | 23' 10" | 25' 10" | 27' 10" | 29' 10" | 31' 10" | 33' 10" | 35' 10" | 26' 6" | 28' 6" | 30' 6" | 32' 6" | 34' 6" | 36' 6" | 38' 6" | 40' 6" | 42' 6" | 44' 6" | 46' 6" | 48' 6" |
| Exterior Width: | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" |
| Exterior Height: | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 10" | 8' 10" | 8' 10" | 8' 10" | 8' 10" |
| Interior Length: | 17' 10" | 19' 10" | 21' 10" | 23' 10" | 17' 10" | 19' 10" | 21' 10" | 23' 10" | 25' 10" | 27' 10" | 29' 10" | 31' 10" | 26' 4" | 28' 4" | 30' 4" | 32' 4" | 34' 4" | 36' 4" | 38' 4" | 40' 4" | 42' 4" | 44' 4" | 46' 4" | 48' 4" |
| Interior Width: | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" |
| Interior Height: | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" |
| Rear Door Type: | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp |
| Rear Door Width: | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" |
| Rear Door Height: | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 10" | 6' 10" | 6' 10" | 6' 10" | 6' 10" |
| Coupler Size: | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" |
| Curb Weight: | 3240 | 3600 | 3960 | 4320 | 3276 | 3640 | 4004 | 4380 | 4732 | 5096 | 5460 | 5824 | 6600 | 6800 | 7000 | 7200 | 7400 | 7550 | 7700 | 8000 | 8300 | 8600 | 8900 | 9240 |
| Hitch Weight: | 324 | 360 | 396 | 432 | 327 | 364 | 400 | 450 | 473 | 509 | 546 | 580 | 1320 | 1360 | 1400 | 1440 | 1480 | 1510 | 1540 | 1600 | 1660 | 1720 | 1780 | 1848 |
| Hitch Height: | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 40" | 40" | 40" | 40" | 40" | 40" | 40" | 40" | 40" | 40" | 40" | 40" |
| Platform Height: | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 20 |
| Axle: | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 3-5,200 | 3-5,200 | 3-5,200 | 3-6,000 | 3-6,000 | 3-6,000 | 3-6,000 | 3-6,000 |
| Suspension: | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion |
| Brakes: | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric |
| Tires: | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST235/80R16/E | ST235/80R16/E | ST235/80R16/E | ST235/80R16/E | ST235/80R16/E |
| Wheels: | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 8 Bolt | 8 Bolt | 8 Bolt | 8 Bolt | 8 Bolt |
| Main Frame: | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 10" I-Beam | 8" I-Beam | 10" I-Beam | 10" I-Beam | 10" I-Beam | 10" I-Beam | 10" I-Beam |
| Floor (16" O/C): | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood |
| Walls (16" O/C): | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood |
