Explore Snow King

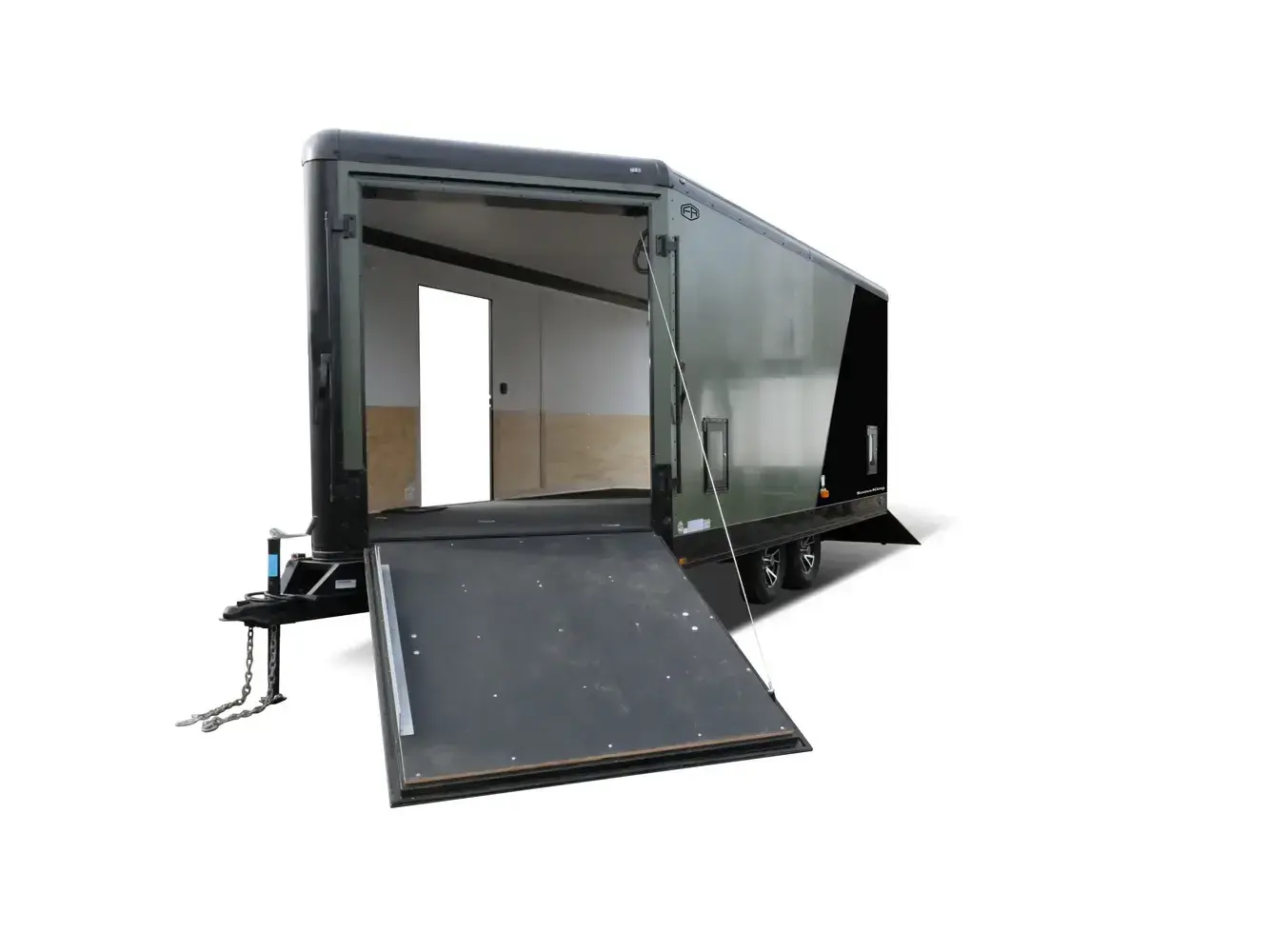

Snow King snowmobile trailers are available with a steel frame. The sizes range from a 7’ x 22’ tandem axle to 8.5’ x 24’ tandem axle model. Electric brakes are standard on all Snow King models. The standard payload capacities range from 1,220 to 4,640 lb. depending on the trailer model. A ramp door in the front and rear are standard on Snow King models.
-
- 5' Front Wedge Nose

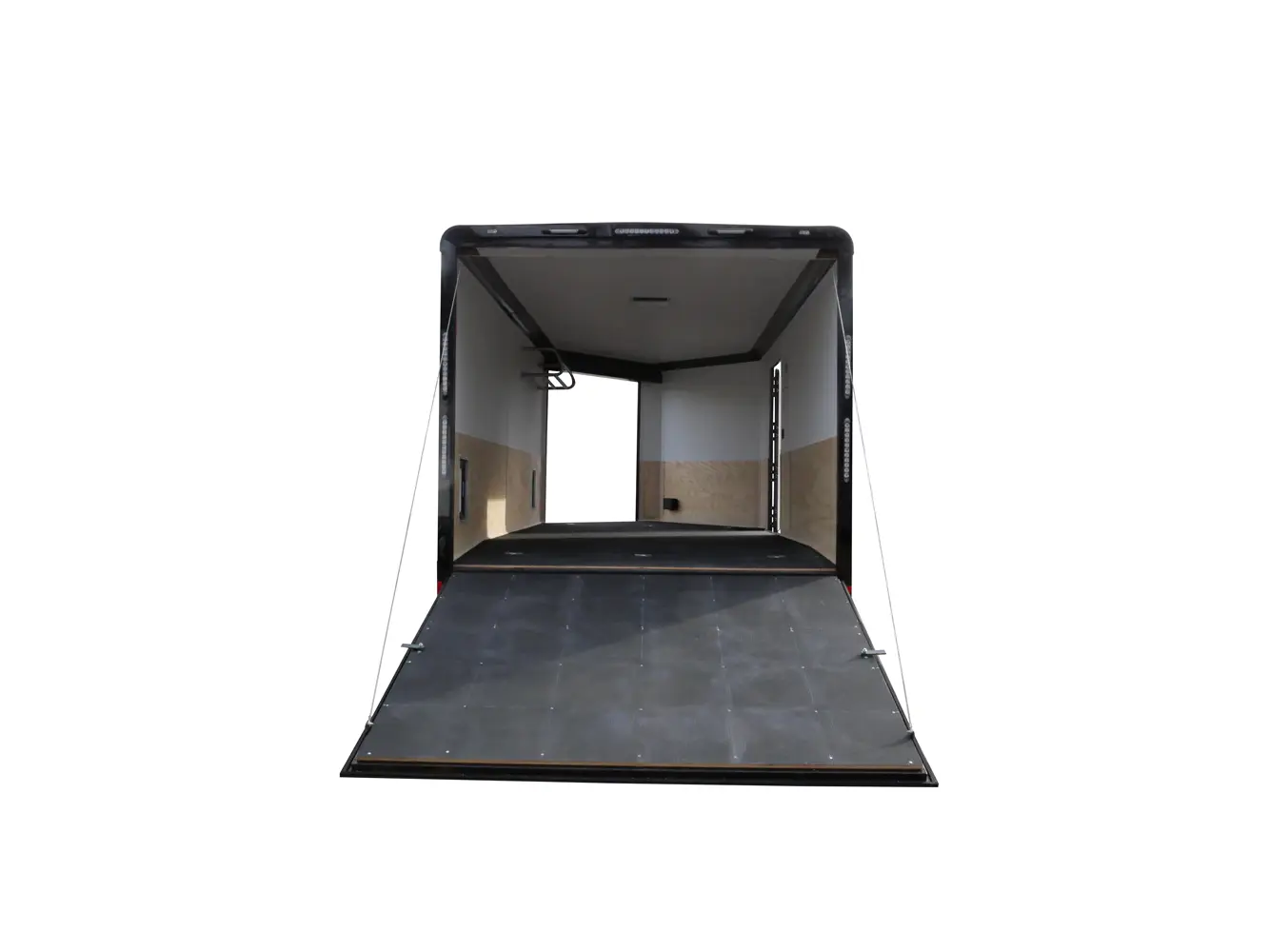

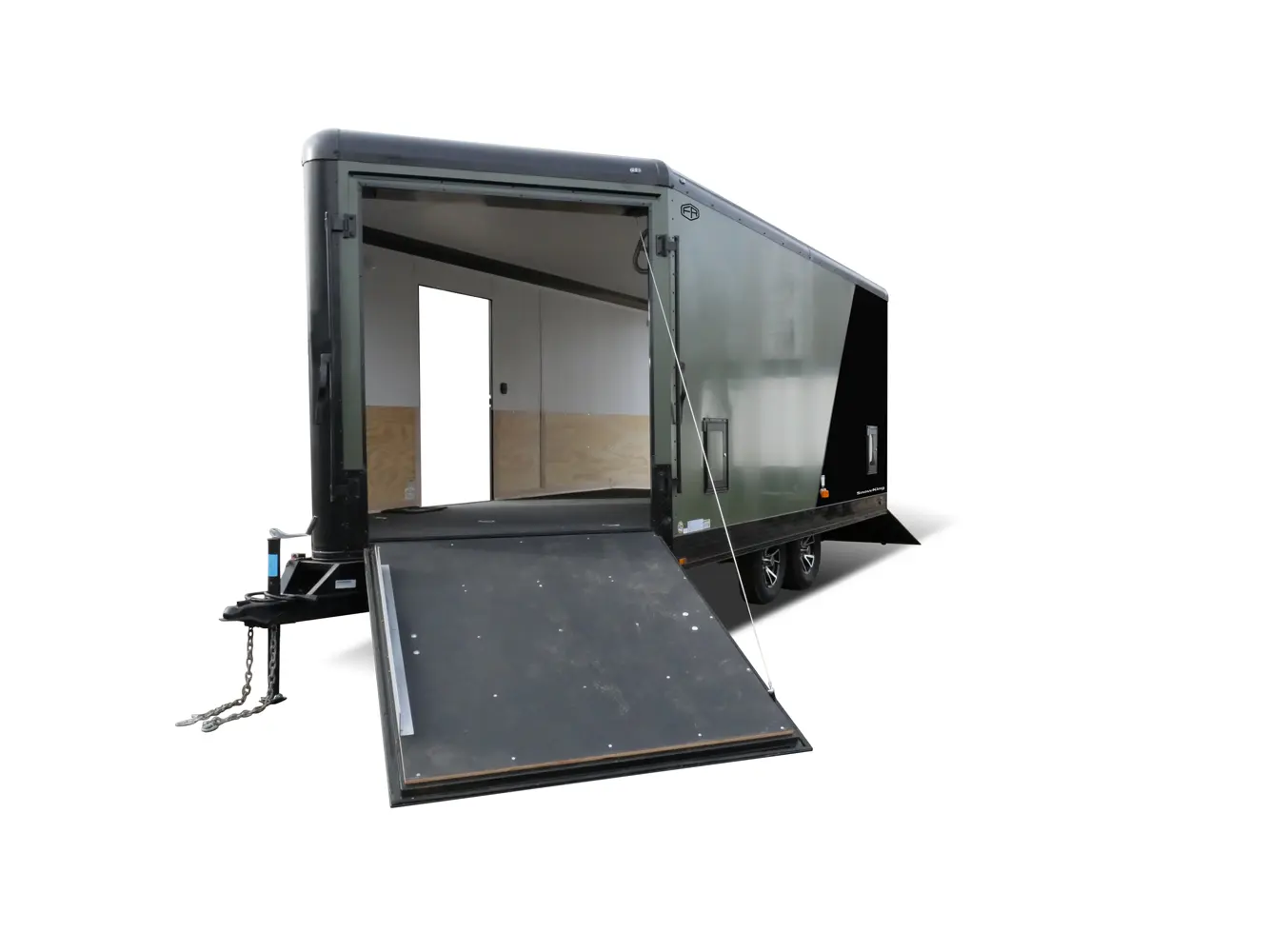

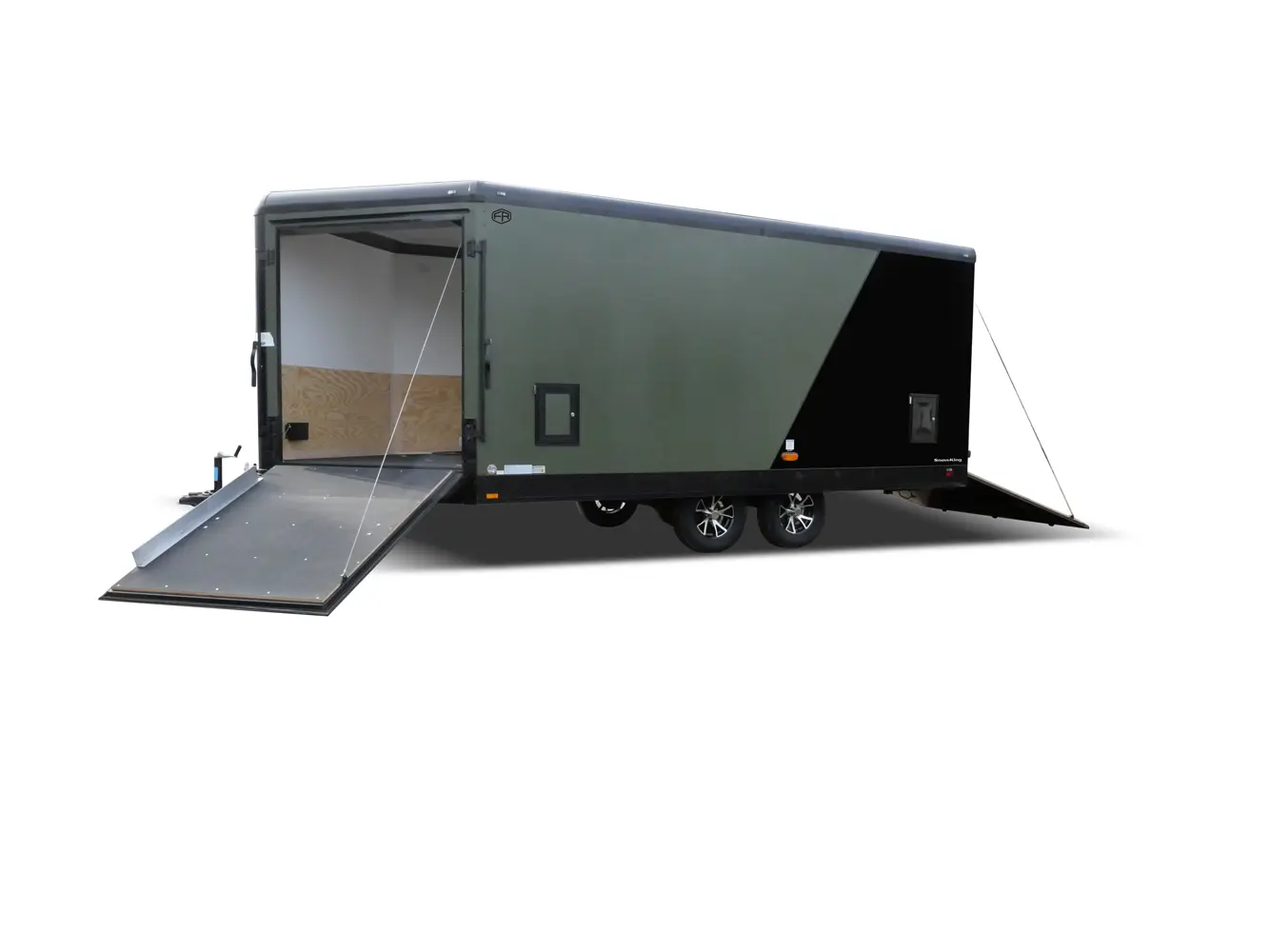

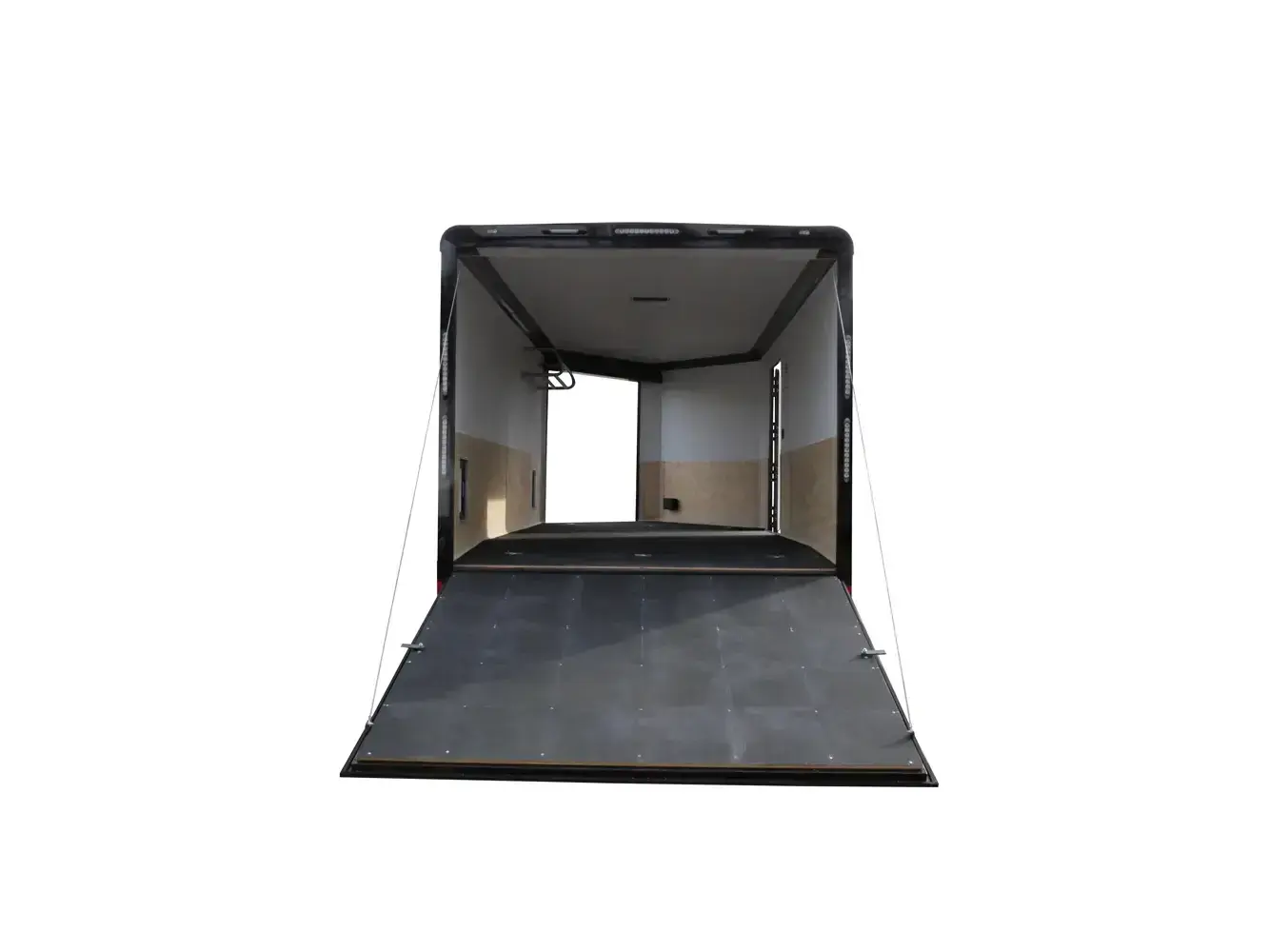

- Front and Rear Ramp Doors with Spring Assist

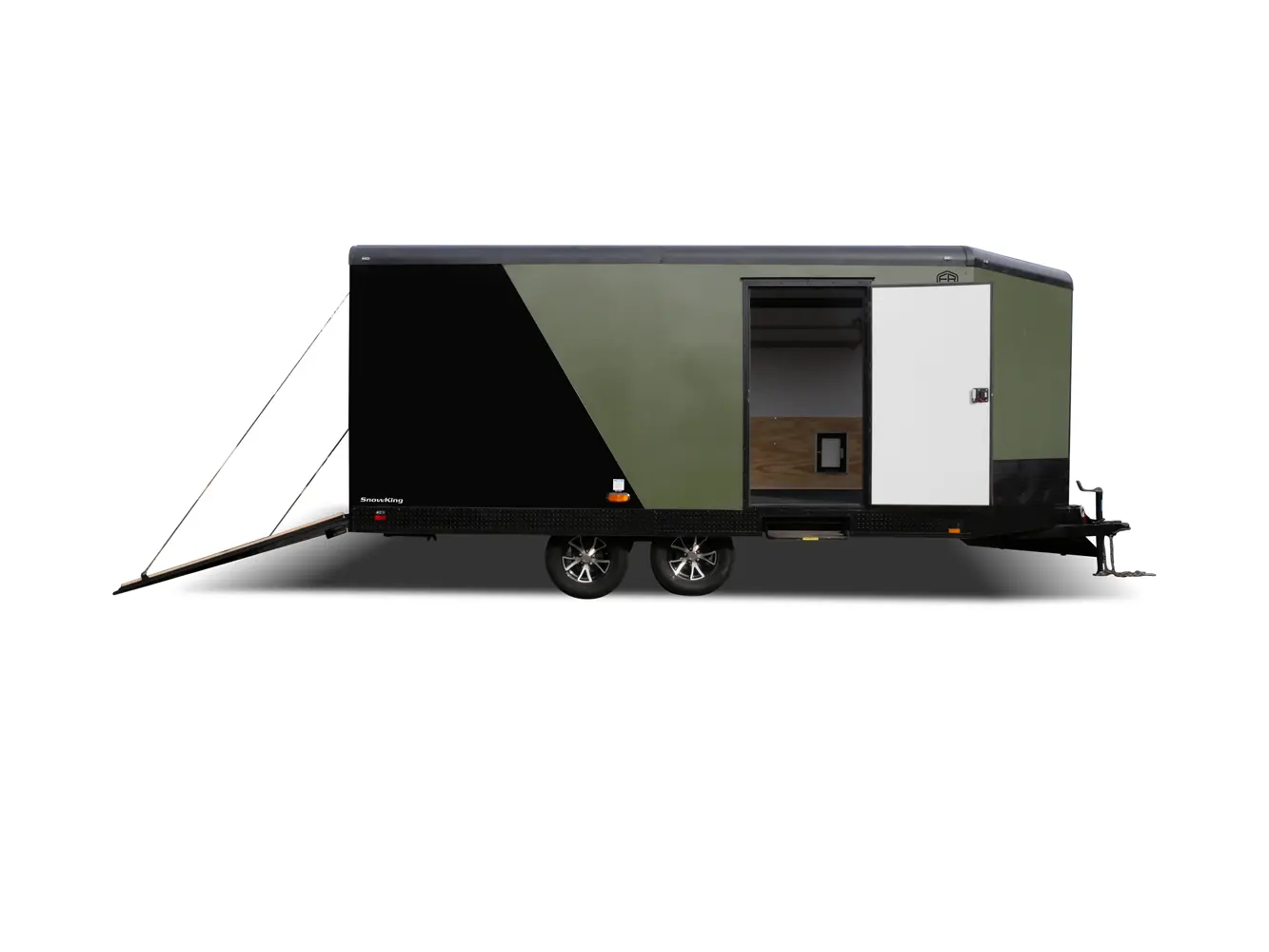

- 36" Side Door with Flush Lock
- Semi-Style Camlock Door Latches
- Safety-Spring Chains on Side Door
- Door Hold-Backs on All Doors
- Torsion Wide-Track Axle
- All-Wheel Electric Brakes with Breakaway
- 12-Volt Breakaway Switch with Battery
- E-Z Lube Hubs with Grease Caps
- TPO Wedge Cap
- Steel Sealed Sidewalls
- Aluminum Wheels
- Chrome Center Caps
- Radial Tires
- Aluminum Roof (16" O/C)
- .080 Mill-Finish Aluminum Top Wrap
- 3/8" Plywood Kickplate on Interior Walls
- 3/16" White Vinyl Wall and Ceiling Liner
- Aluminum Tread Plate Stoneguard
- Molded License Plate Holderand Light
- .030 Alum. Exterior (Avail. in 14 Colors)
- Screwless Exterior Metal
- Anodized Aluminum Wrap on rear
- Urethane Coating on Tongue and Rear Member
- Tongue Jack w/ Sand Pad
- Welded Safety Chains
- Full-Color Decals
- Grease Zerks on Rear Ramp Hinges
- Clear Lens LED Clearance Lights
- (2) 12 Volt LED Dome Lights
- (1) Switch
- (1) Non-Powered Roof Vent
- (6) 2,000 lb. Floor Mount D-Rings
- (4) 12Volt Dome Lights
- (2) Switch
- (2) Non-Powered Roof Vent
- (9) 2,000 lb. Floor Mount D-Rings
-
- Clear Lens LED Strip Tail Lights
- 102" Wide Body Design
- 4' Front Wedge Nose
- Front and Rear Ramp Doors with Spring Assist
- No-Show Beavertail
- 36" Side Door with Flush Lock and Fold-Out RV-Style Step
- Semi-Style Camlock Door Latches
- Safety-Spring Chains on Side Door
- Door Hold-Backs on All Doors
- Torsion Wide-Track Axle
- All-Wheel Electric Brakes with Breakaway
- 12-Volt Breakaway Switch with Battery
- E-Z Lube Hubs with Grease Caps
- Steel Sealed Sidewalls
- Aluminum Wheels
- Chrome Center Caps
- Radial Tires
- Aluminum Roof
- .080 Mill-Finish Aluminum Top Wrapwith Cast 45° Corners and Ball Cap
- 3/8" Plywood Kickplate on Interior Walls
- 3/16" White Vinyl Wall and Ceiling Liner
- Aluminum Tread Plate Stoneguard
- Molded License Plate Holderand Light
- .030 Alum. Exterior (Avail. in 14 Colors)
- Screwless Exterior Metal
- Anodized Aluminum Wrap on rear
- Urethane Coating on Tongue and Rear Member
- Z- Tech Undercoated Frame
- Tongue Jack w/ Sand Pad
- Welded Safety Chains
- Full-Color Decals
- Grease Zerks on Rear Ramp Hinges
- Clear Lens LED Clearance Lights
- Clear Lens LED Strip Tail Lights
- (2) 12 Volt LED Dome Lights
- (1) Switch
- (1) Non-Powered Roof Vent
- (6) 2,000 lb. Floor Mount D-Rings
- (4) 12Volt Dome Lights
- (2) Switch
- (2) Non-Powered Roof Vent
- (9) 2,000 lb. Floor Mount D-Rings
Specifications
| SK722TA2 | SK728TA2 | SK8516TA2 | SK8524TA2 | |
| GVWR: | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. |
| Payload Capacity: | 3925 | 3433 | 4220 | 3500 |
| Exterior Length: | 24' 0" | 30' 0" | 18' 6" | 26' 6" |
| Exterior Width: | 8' 6" | 8' 6" | 8' 6" | 8' 6" |
| Exterior Height: | 8' 1" | 8' 1" | 9' 0" | 9' 0" |
| Interior Length: | 21' 5" | 27' 5" | 15' 7" | 23' 7" |
| Interior Width: | 6' 6" | 6' 6" | 8' 0" | 8' 0" |
| Interior Height: | 6' 3" | 6' 3" | 6' 0" | 6' 0" |
| Rear Door Type: | Ramp | Ramp | Ramp | Ramp |
| Rear Door Width: | TBD | TBD | 7' 5" | 7' 5" |
| Rear Door Height: | TBD | TBD | 6' 0" | 6' 0" |
| Coupler Size: | 2-5/16"" | 2-5/16"" | 2-5/16"" | 2-5/16"" |
| Curb Weight: | 3075 | 3567 | 2780 | 3500 |
| Hitch Weight: | 310 | 360 | 278 | 350 |
| Hitch Height: | 19" | 19" | 23" | 23" |
| Platform Height: | 20 | 20 | 29 | 29 |
| Axle: | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 |
| Suspension: | Torsion | Torsion | Torsion | Torsion |
| Brakes: | Electric | Electric | Electric | Electric |
| Tires: | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C |
| Wheels: | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt |
| Main Frame: | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam |
| Floor (16" O/C): | 3/4" Treated Plywood | 3/4" Treated Plywood | 3/4" Treated Plywood | 3/4" Treated Plywood |
| Walls (16" O/C): | 3/16" White Vinyl | 3/16" White Vinyl | 3/16" White Vinyl | 3/16" White Vinyl |
