Explore Tailwind

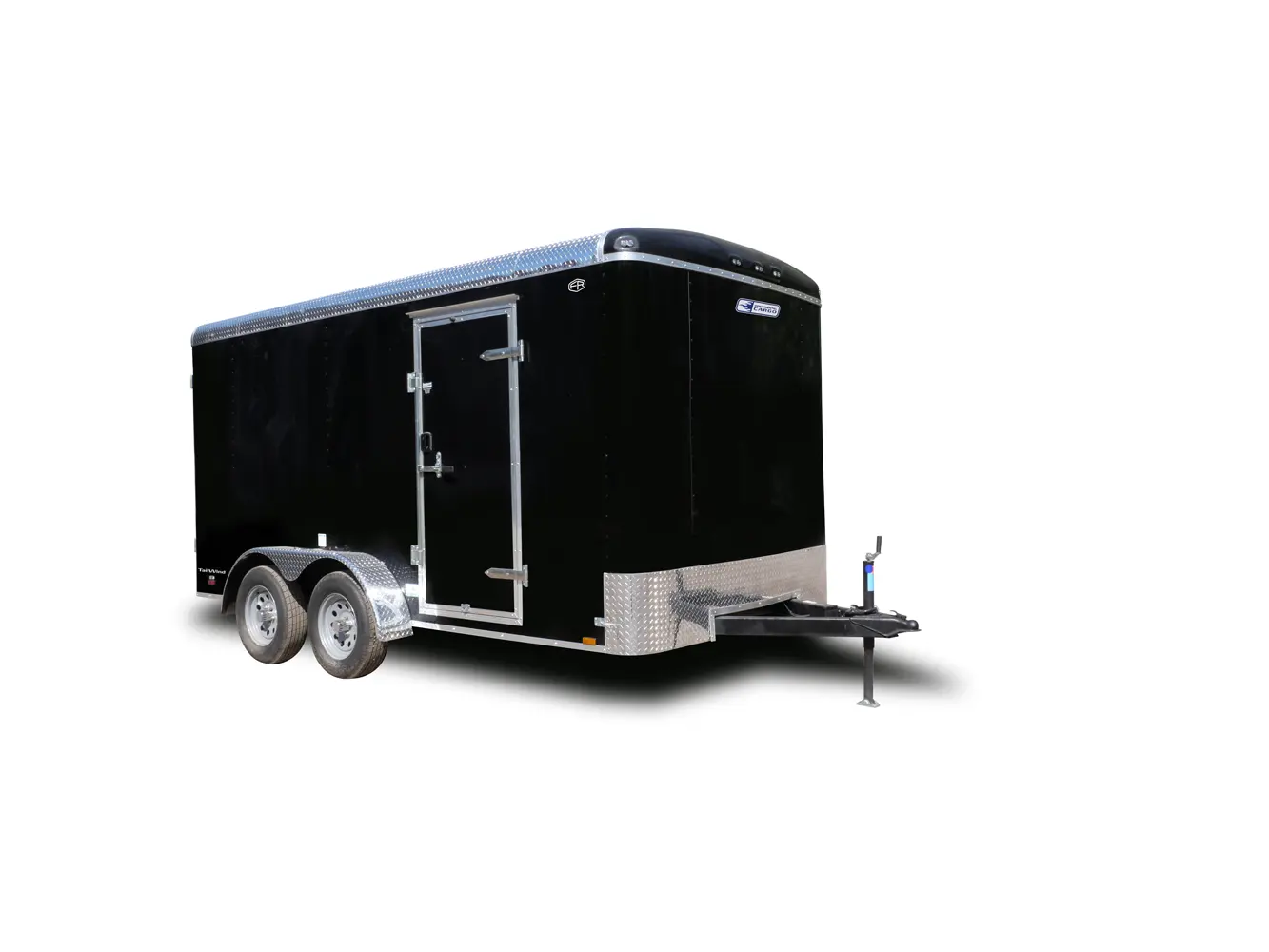

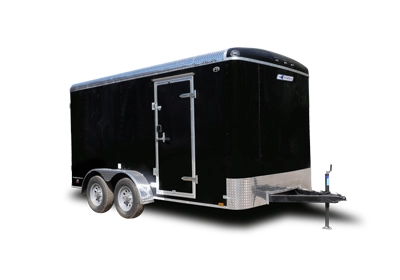

Tailwind cargo trailers range in size from a 5’ x 8’ single axle to 8’ x 24’ tandem axle model. Electric brakes are standard on 6' wide tandem axle trailers and larger. The 5’ - 7’ wide single axle models offer a standard payload capacity of 1,550 to 2,040 lb. while the 6’ - 8’ wide tandem axle models offer a standard payload capacity of 3,800 - 5,350 lb. Double barn doors are the standard rear door for the Tailwind cargo trailers with an optional ramp door available.
-

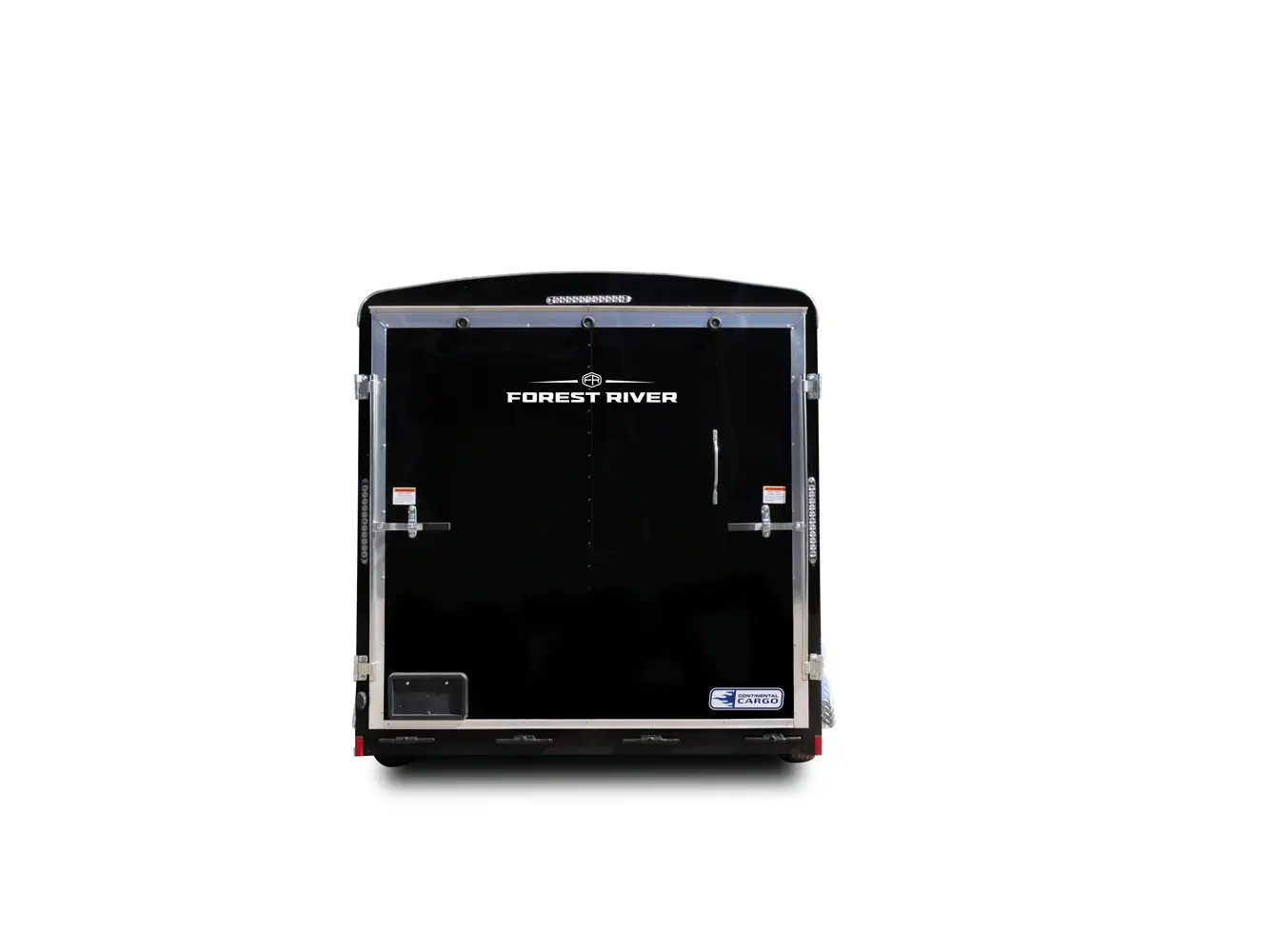

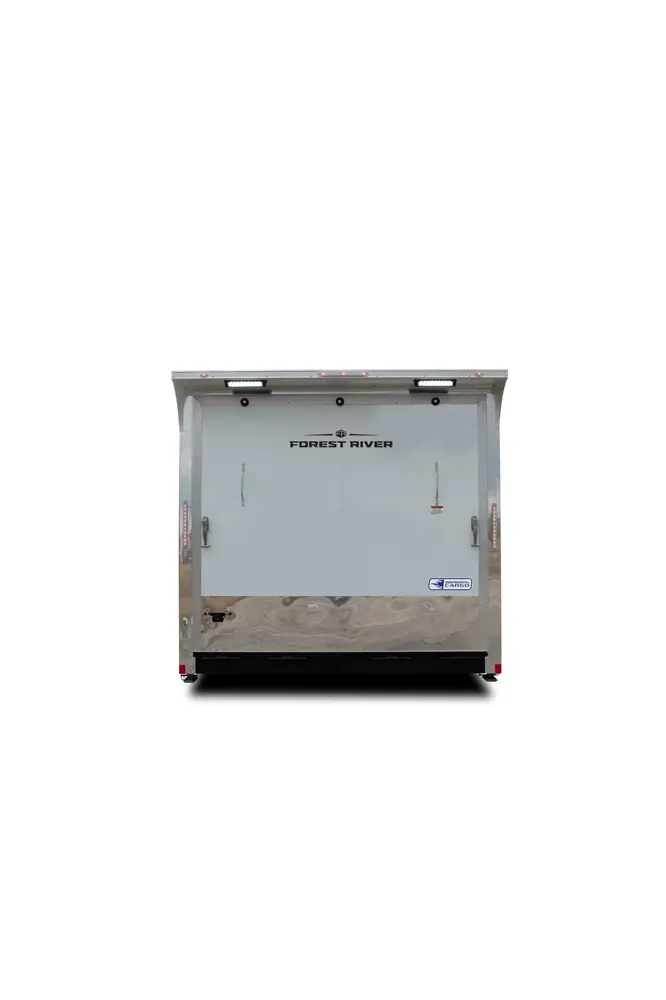

- Double Rear Doors
- Semi Style Camlock Door Latches
- Leaf-Spring Axles
- E-Z Lube Hubs
- All-Wheel Electric Brakesw/Breakaway (On models that require brakes)
- 12-Volt Breakaway Switch withBattery (On models that require brakes)
- Steel Powder Coated Wheels
- One-Piece Aluminum Roof (16" O/C)
- Colored Aluminum or ATP Top Wrap

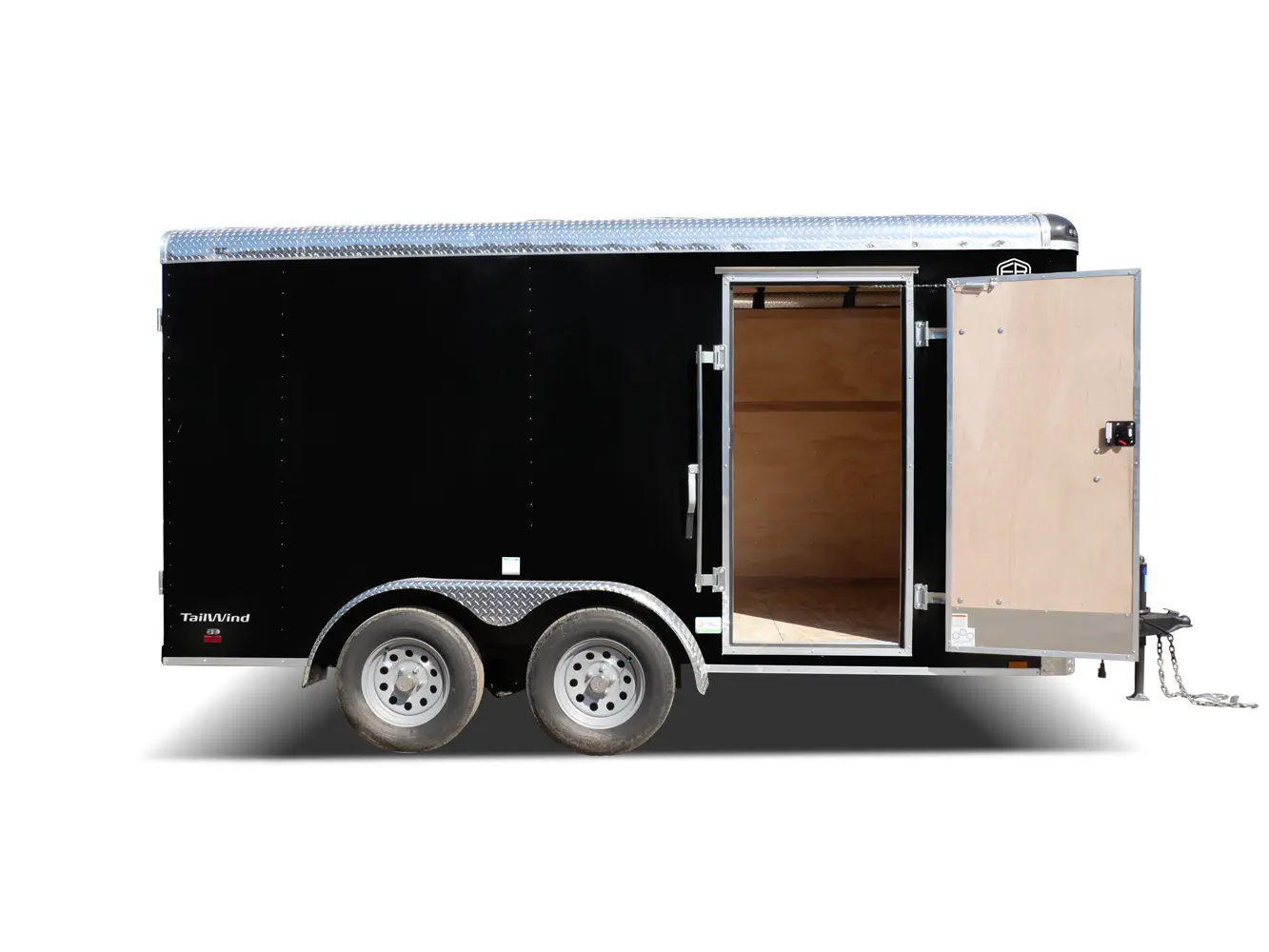

- C/S Door (24" on 5 wide, 32" on6 & 7 wide, 36" on 8 wide) withFlushlock
- 16" Stoneguard

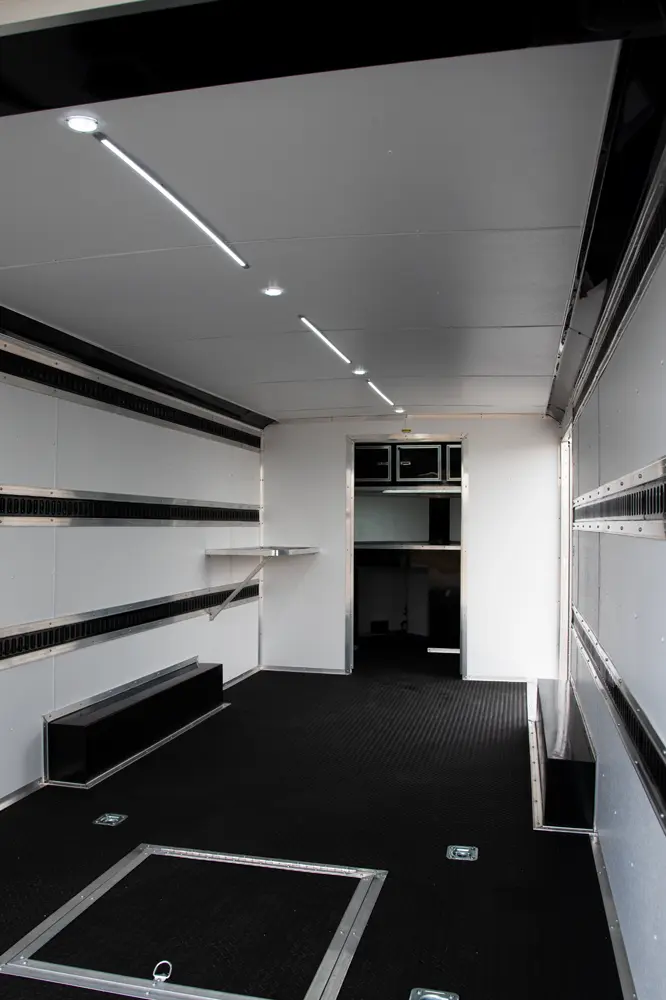

- 2 – Interior LED Dome Lights, and1 – Wall Switch
- Roof Vent
- 3/8" Plywood Walls with LauanTrim
- ATP Exterior Aluminum Fenders
- TPO Radius Front Cap
- DOT Approved Lighting
- Clear Lens LED Clearance Lights

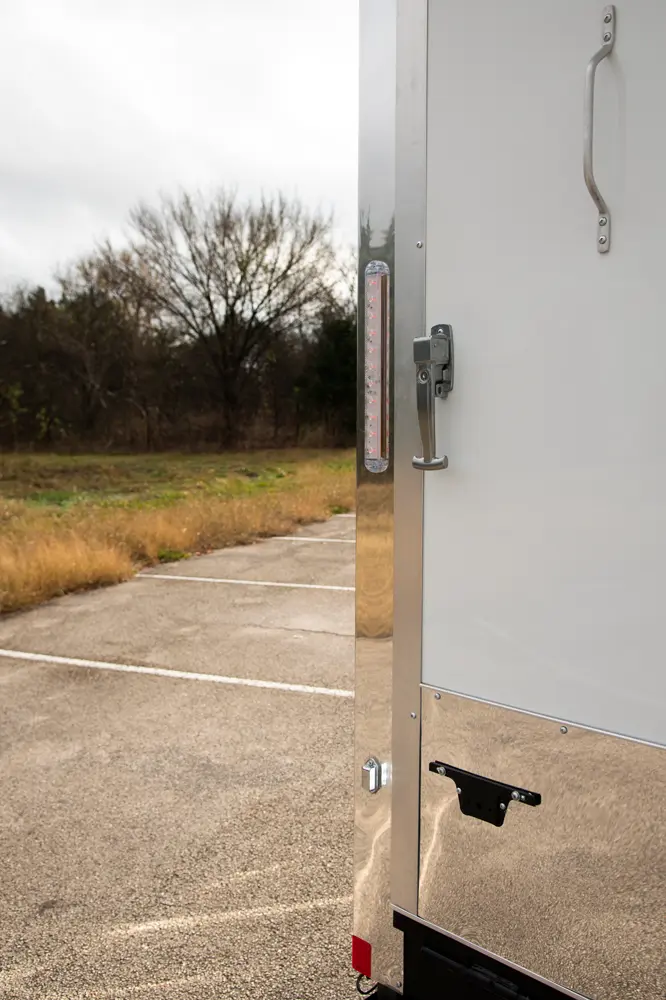

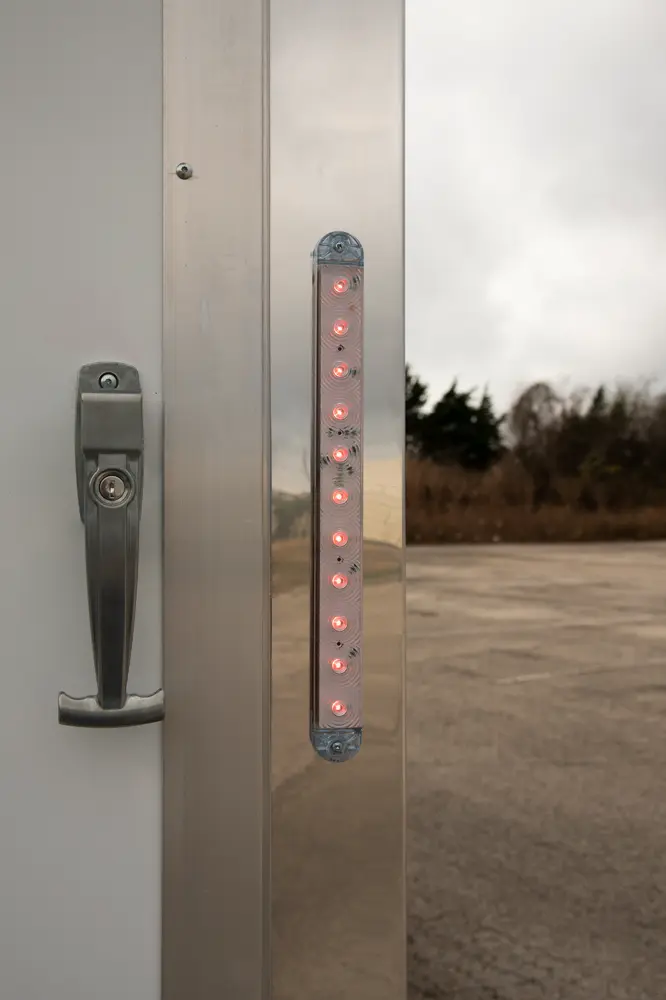

- Clear Lens LED Strip Tail Lights
- Molded License Plate Holder andLight
- .030 Aluminum Exterior (Availablein 14 Colors)
- Colored Aluminum Wrap on Rear
- Exposed Steel Painted Epoxy Black
- Tongue Jack w/ Sand Pad
- Welded Safety Chains
- Full-Color Decals
- Steel Sealed Sidewalls
- Grease Zerks on Hinges of Optional Rear Ramp
Specifications
| TW58SA | TW510SA | TW512SA | TW514SA | TW68SA | TW610SA | TW612SA | TW614SA | TW610TA2 | TW612TA2 | TW614TA2 | TW616TA2 | TW618TA2 | TW620TA2 | TW622TA2 | TW624TA2 | TW78SA | TW710SA | TW712SA | TW714SA | TW710TA2 | TW712TA2 | TW714TA2 | TW716TA2 | TW718TA2 | TW720TA2 | TW722TA2 | TW724TA2 | TW810TA2 | TW812TA2 | TW814TA2 | TW816TA2 | TW818TA2 | TW820TA2 | TW822TA2 | TW824TA2 | |
| GVWR: | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 3500 lb. | 3500 lb. | 3500 lb. | 3500 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. |
| Payload Capacity: | 2040 | 1965 | 1890 | 1815 | 1890 | 1790 | 1690 | 1590 | 5350 | 5200 | 5050 | 4850 | 4750 | 4600 | 4450 | 4300 | 2000 | 1850 | 1700 | 1550 | 5075 | 4900 | 4725 | 4550 | 4375 | 4200 | 4025 | 3875 | 4850 | 4700 | 4550 | 4400 | 4250 | 4100 | 3950 | 3800 |
| Exterior Length: | 11' 10" | 13' 10" | 15' 10" | 17' 10" | 11' 10" | 13' 10" | 15' 10" | 17' 10" | 13' 10" | 15' 10" | 17' 10" | 19' 10" | 21' 10" | 23' 10" | 25' 10" | 27' 10" | 11' 10" | 13' 10" | 15' 10" | 17' 10" | 13' 10" | 15' 10" | 17' 10" | 19' 10" | 21' 10" | 23' 10" | 25' 10" | 27' 10" | 13' 10" | 15' 10" | 17' 10" | 19' 10" | 21' 10" | 23' 10" | 25' 10" | 27' 10" |
| Exterior Width: | 7' 0" | 7' 0" | 7' 0" | 7' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" |
| Exterior Height: | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 8' 3" | 8' 3" | 8' 3" | 8' 3" | 8' 5" | 8' 5" | 8' 5" | 8' 5" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" |
| Interior Length: | 8' 7" | 10' 7" | 12' 7" | 14' 7" | 8' 7" | 10' 7" | 12' 7" | 14' 7" | 10' 7" | 12' 7" | 14' 7" | 16' 7" | 18' 7" | 20' 7" | 22' 7" | 24' 7" | 8' 5" | 10' 5" | 12' 5" | 14' 5" | 10' 7" | 12' 7" | 14' 7" | 16' 7" | 18' 7" | 20' 7" | 22' 7" | 24' 7" | 10' 7" | 12' 7" | 14' 7" | 16' 7" | 18' 7" | 20' 7" | 22' 7" | 24' 7" |
| Interior Width: | 4' 8" | 4' 8" | 4' 8" | 4' 8" | 5' 8" | 5' 8" | 5' 8" | 5' 8" | 5' 8" | 5' 8" | 5' 8" | 5' 8" | 5' 8" | 5' 8" | 5' 8" | 5' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" |
| Interior Height: | 4' 10" | 4' 10" | 4' 10" | 4' 10" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" |
| Rear Door Type: | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double |
| Rear Door Width: | 4' 0" | 4' 0" | 4' 0" | 4' 0" | 5' 0" | 5' 0" | 5' 0" | 5' 0" | 5' 0" | 5' 0" | 5' 0" | 5' 0" | 5' 0" | 5' 0" | 5' 0" | 5' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 7' 0" | 7' 0" | 7' 0" | 7' 0" | 7' 0" | 7' 0" | 7' 0" | 7' 0" |
| Rear Door Height: | 4' 2" | 4' 2" | 4' 2" | 4' 2" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 5' 10" | 5' 10" | 5' 10" | 5' 10" | 5' 10" | 5' 11" | 5' 11" | 5' 11" | 5' 11" | 5' 11" | 5' 11" | 5' 11" | 5' 11" |
| Coupler Size: | 2" | 2" | 2" | 2" | 2" | 2" | 2" | 2" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" |
| Curb Weight: | 950 | 1025 | 1100 | 1175 | 1100 | 1200 | 1300 | 1400 | 1650 | 1800 | 1950 | 2150 | 2250 | 2400 | 2550 | 2700 | 1500 | 1650 | 1800 | 1950 | 1925 | 2100 | 2275 | 2450 | 2625 | 2800 | 2975 | 3125 | 2150 | 2300 | 2450 | 2600 | 2750 | 2900 | 3050 | 3200 |
| Hitch Weight: | 95 | 103 | 110 | 118 | 110 | 120 | 130 | 140 | 165 | 180 | 195 | 215 | 225 | 240 | 255 | 270 | 150 | 165 | 180 | 195 | 193 | 210 | 228 | 245 | 263 | 280 | 298 | 313 | 215 | 230 | 245 | 260 | 275 | 290 | 305 | 320 |
| Hitch Height: | 17" | 17" | 17" | 17" | 17" | 17" | 17" | 17" | 18" | 18" | 18" | 18" | 20" | 20" | 20" | 20" | 18" | 18" | 18" | 18" | 18" | 18" | 18" | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 20" |
| Platform Height: | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 18 | 18 | 18 | 18 | 20 | 20 | 20 | 20 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Axle: | 1-2,990 | 1-2,990 | 1-2,990 | 1-2,990 | 1-2,990 | 1-2,990 | 1-2,990 | 1-2,990 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 1-3,500 | 1-3,500 | 1-3,500 | 1-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 |
| Suspension: | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring |
| Brakes: | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric |
| Tires: | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C |
| Wheels: | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt |
| Main Frame: | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 4" Tube | 4" Tube | 4" Tube | 4" Tube | 6" Tube | 6" Tube | 6" Tube | 6" Tube | 4" Tube | 4" Tube | 4" Tube | 4" Tube | 4" Tube | 4" Tube | 4" Tube | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam |
| Floor (16" O/C): | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood |
| Walls (16" O/C): | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood |
