Explore Auto Plus

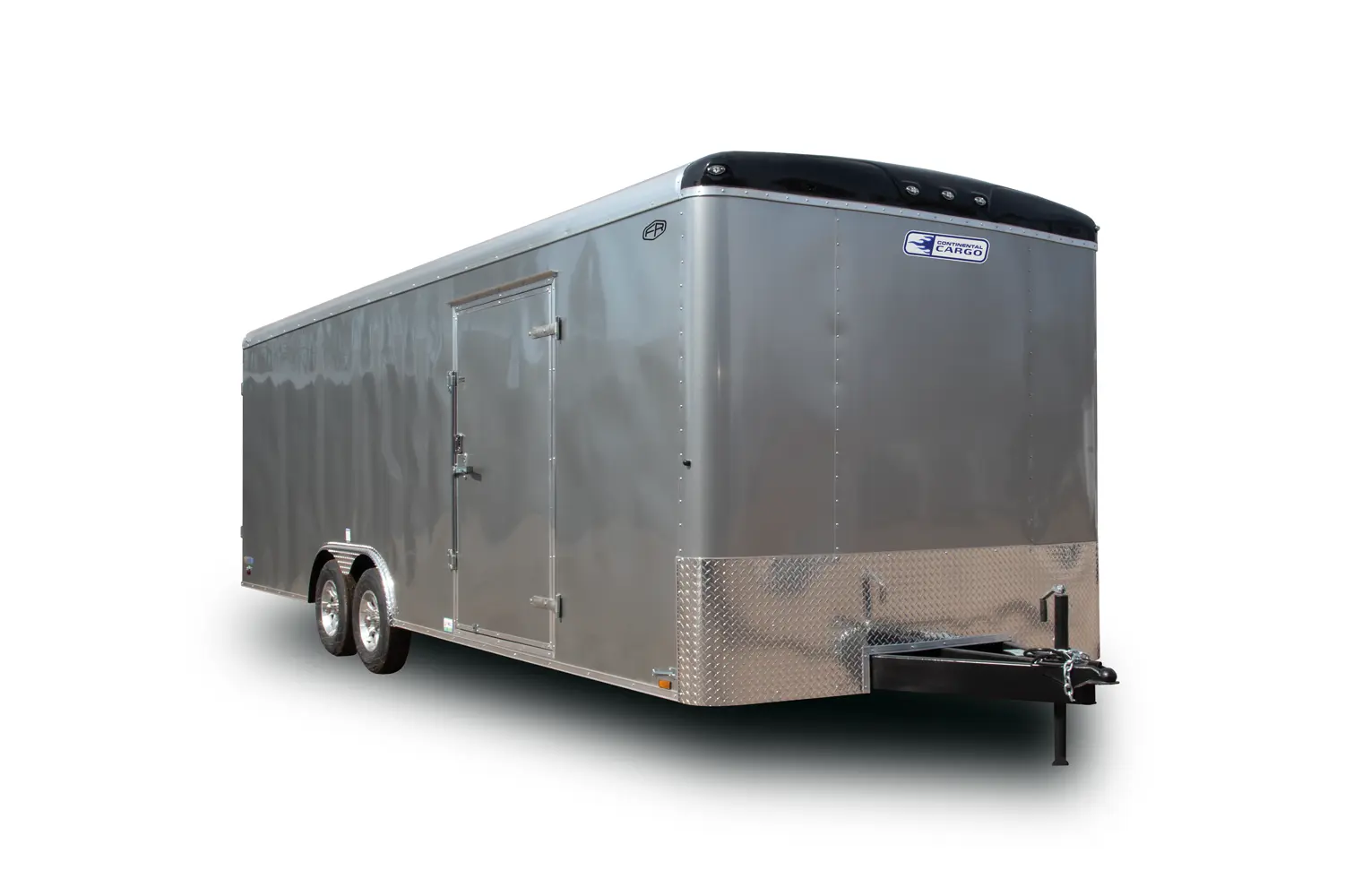

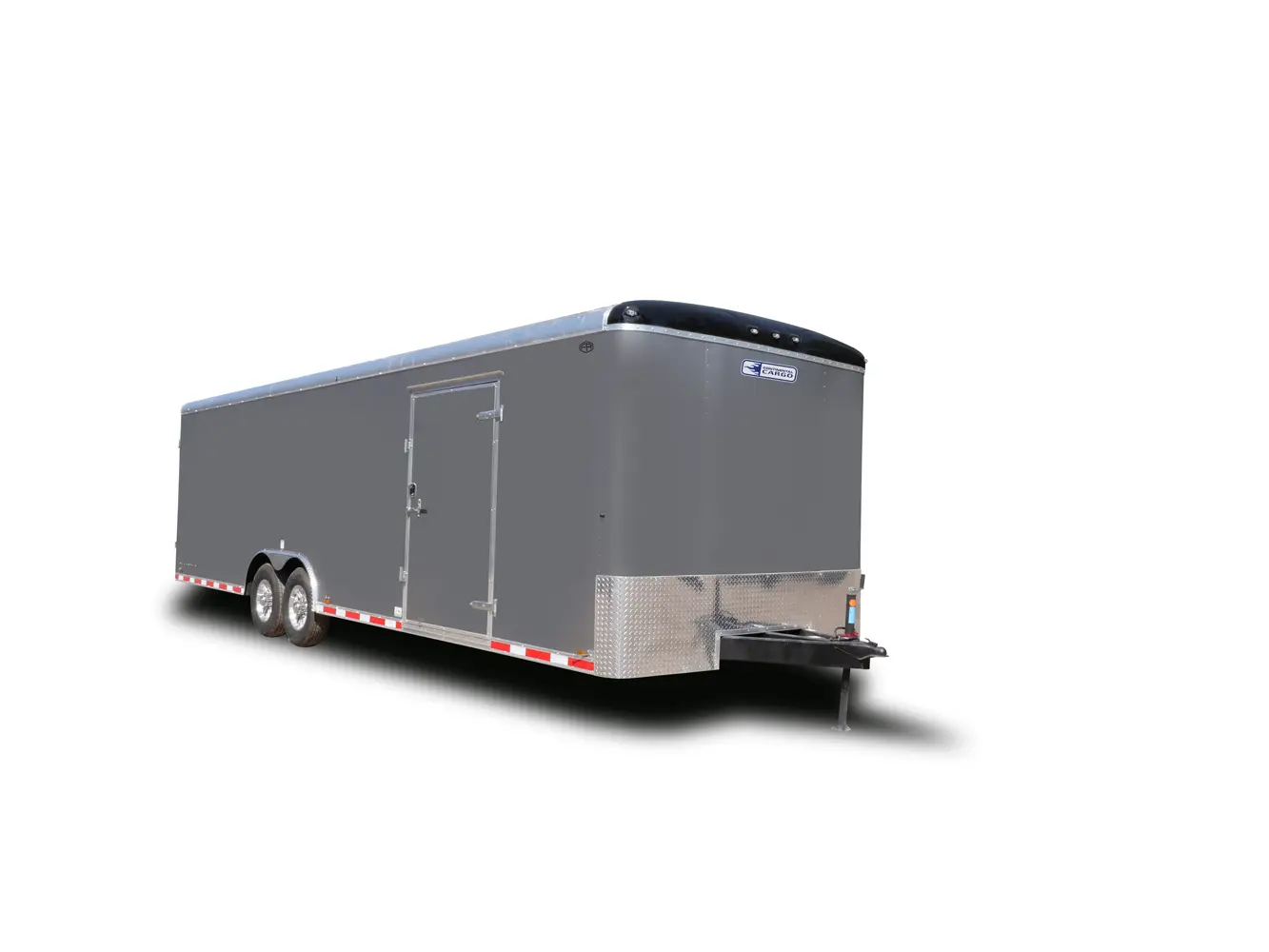

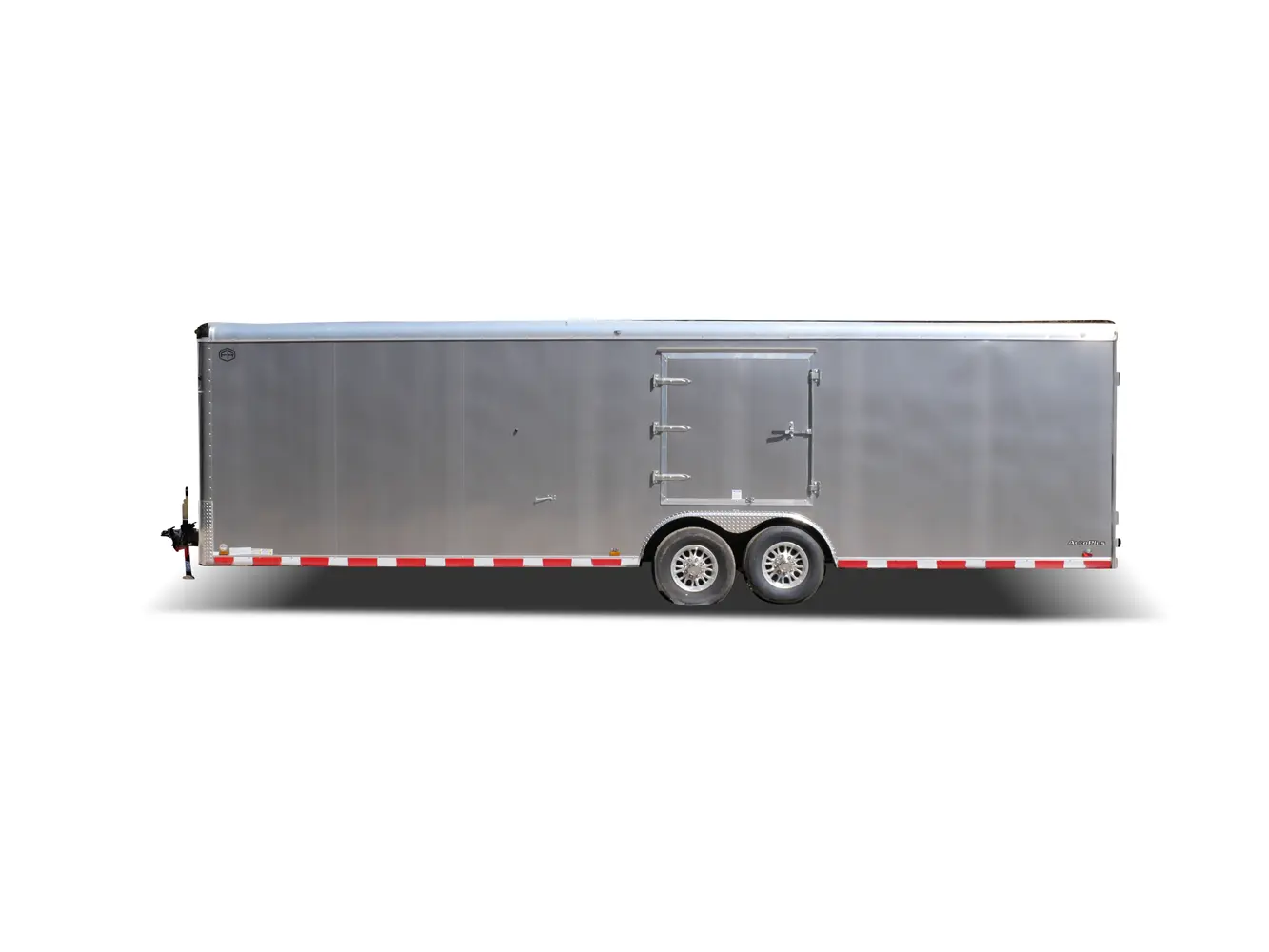

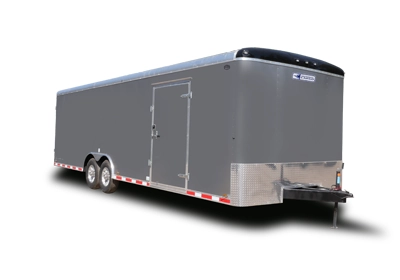

Auto Plus auto haulers range in size from a 8.5’ x 18’ tandem axle to a 8.5’ x 48’ triple axle model. Electric brakes are standard on all Auto Plus models. The standard payload capacities range from 3,460 to 6,750 lb. on tandem axle bumper pull models to 4,330 to 10,580 lb. on gooseneck models. A ramp door with no-show beavertail is standard on all Auto Plus auto haulers.
-
- 102" Wide Body Design

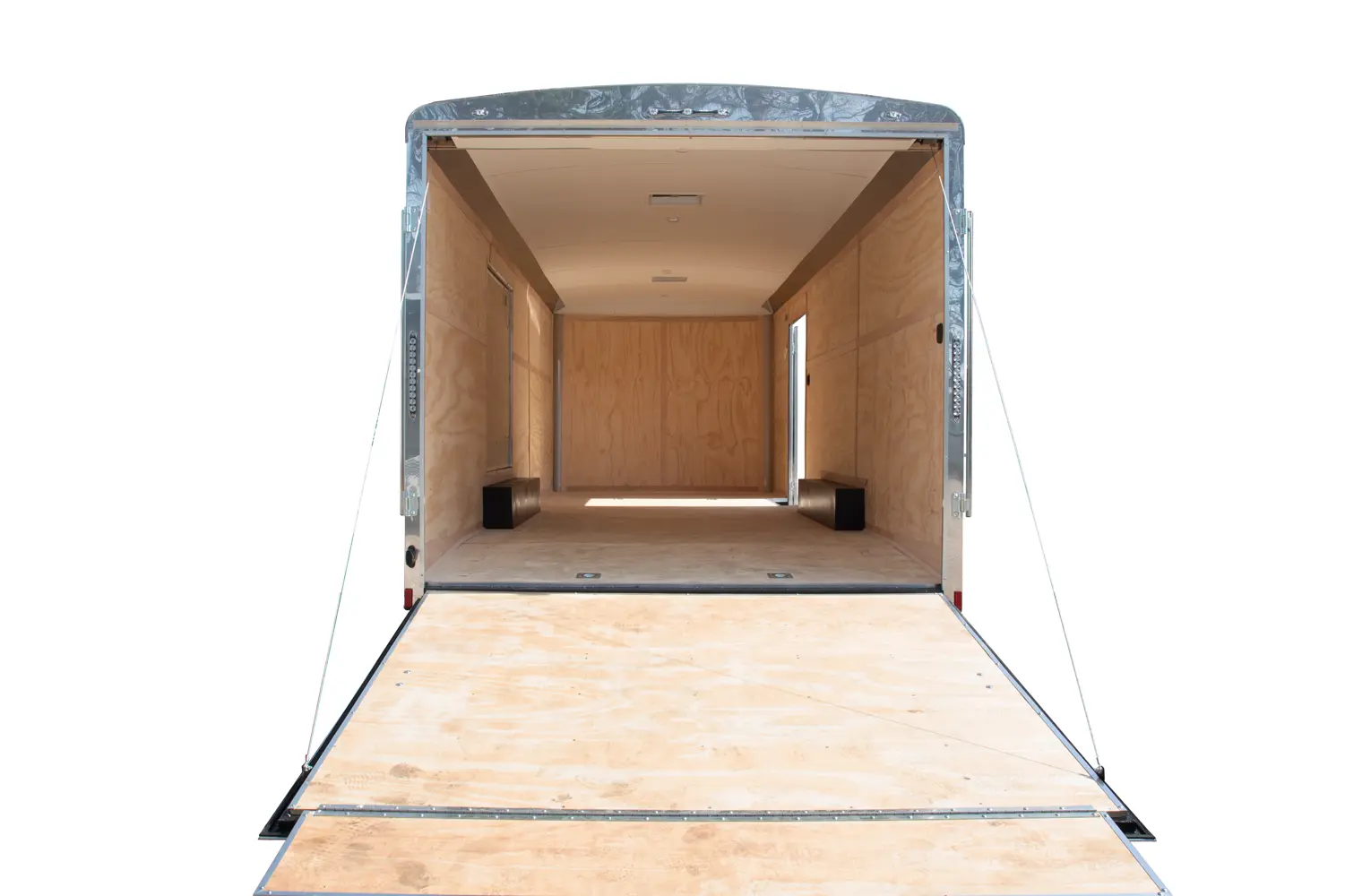

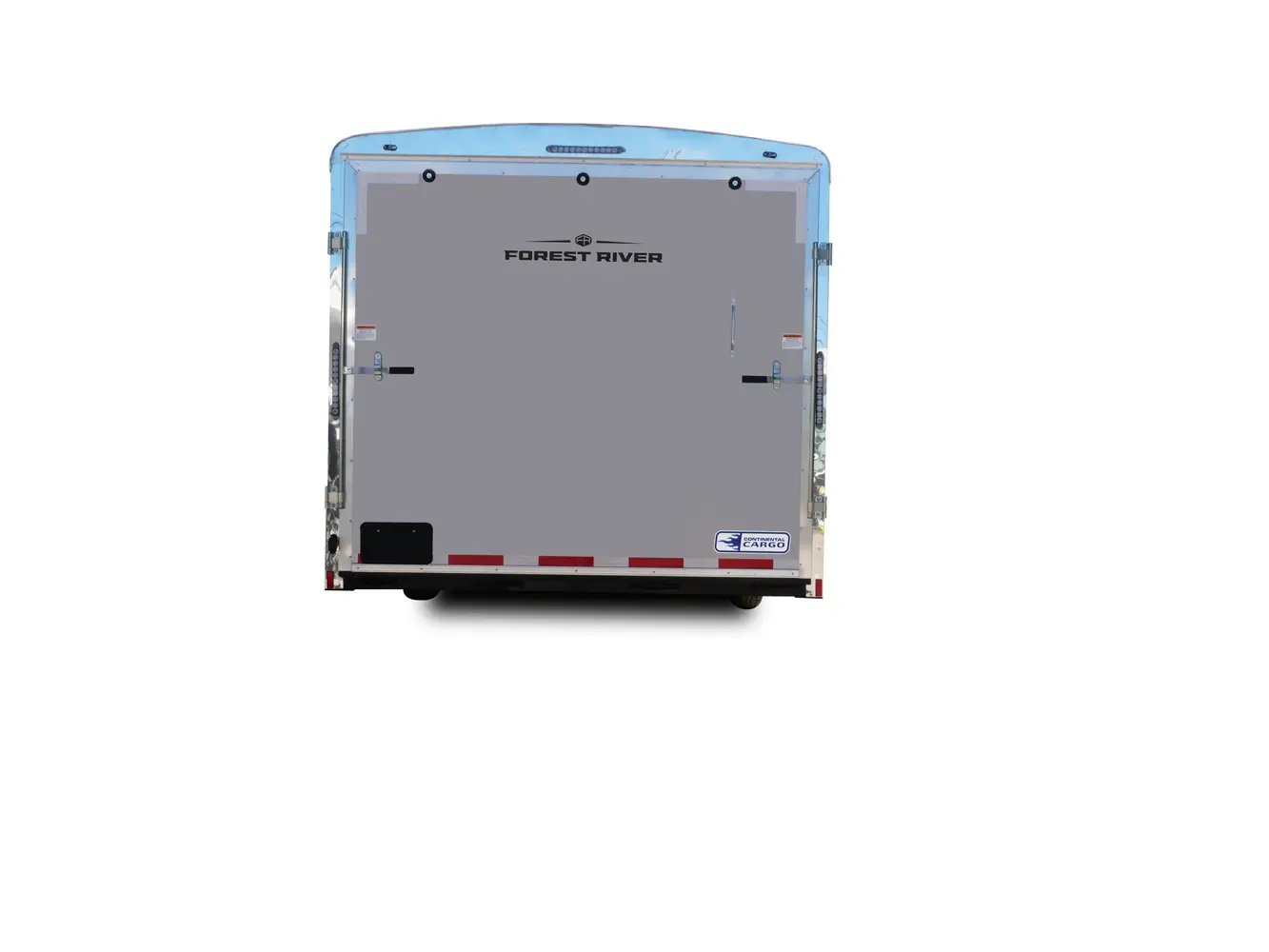

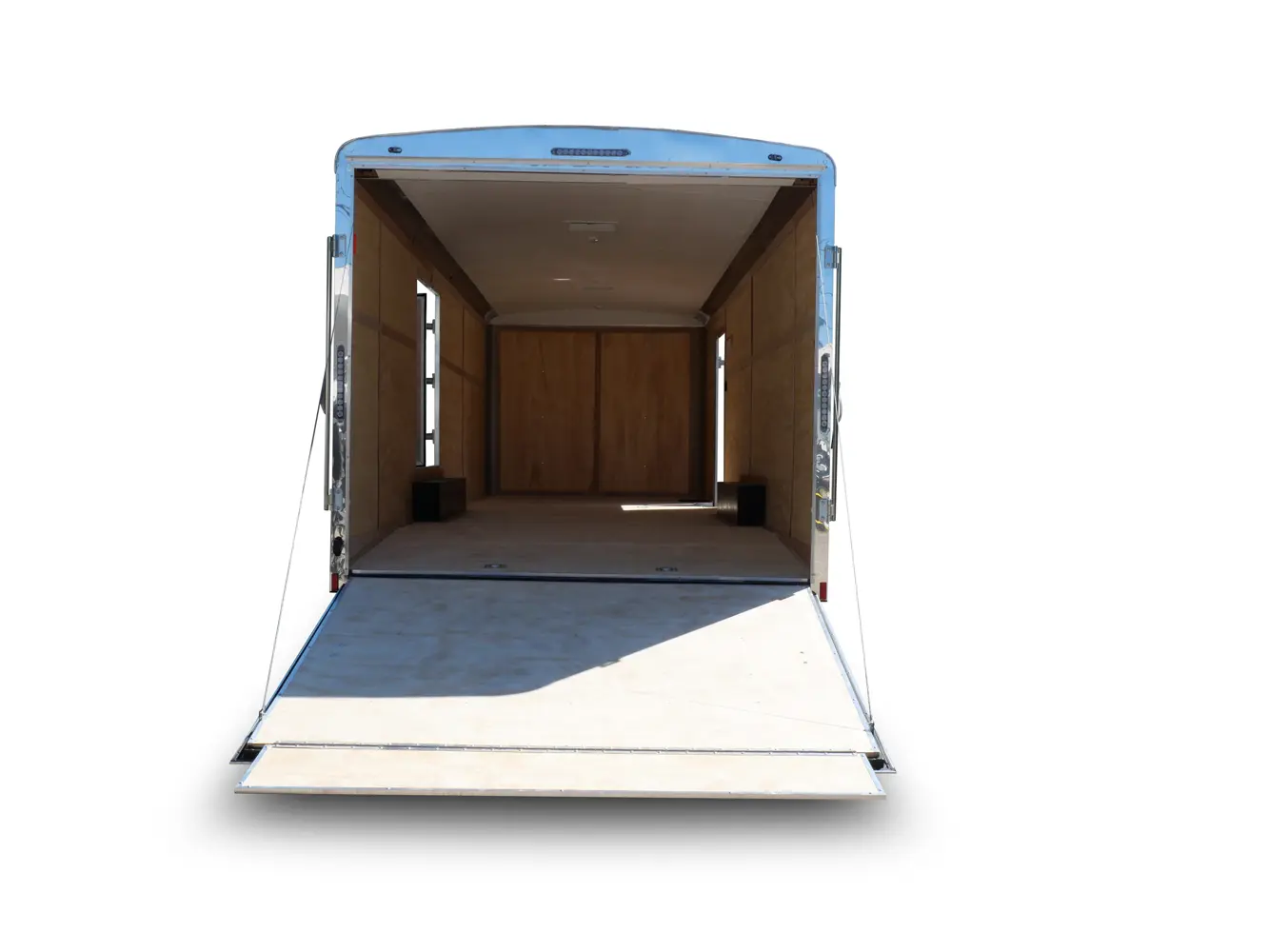

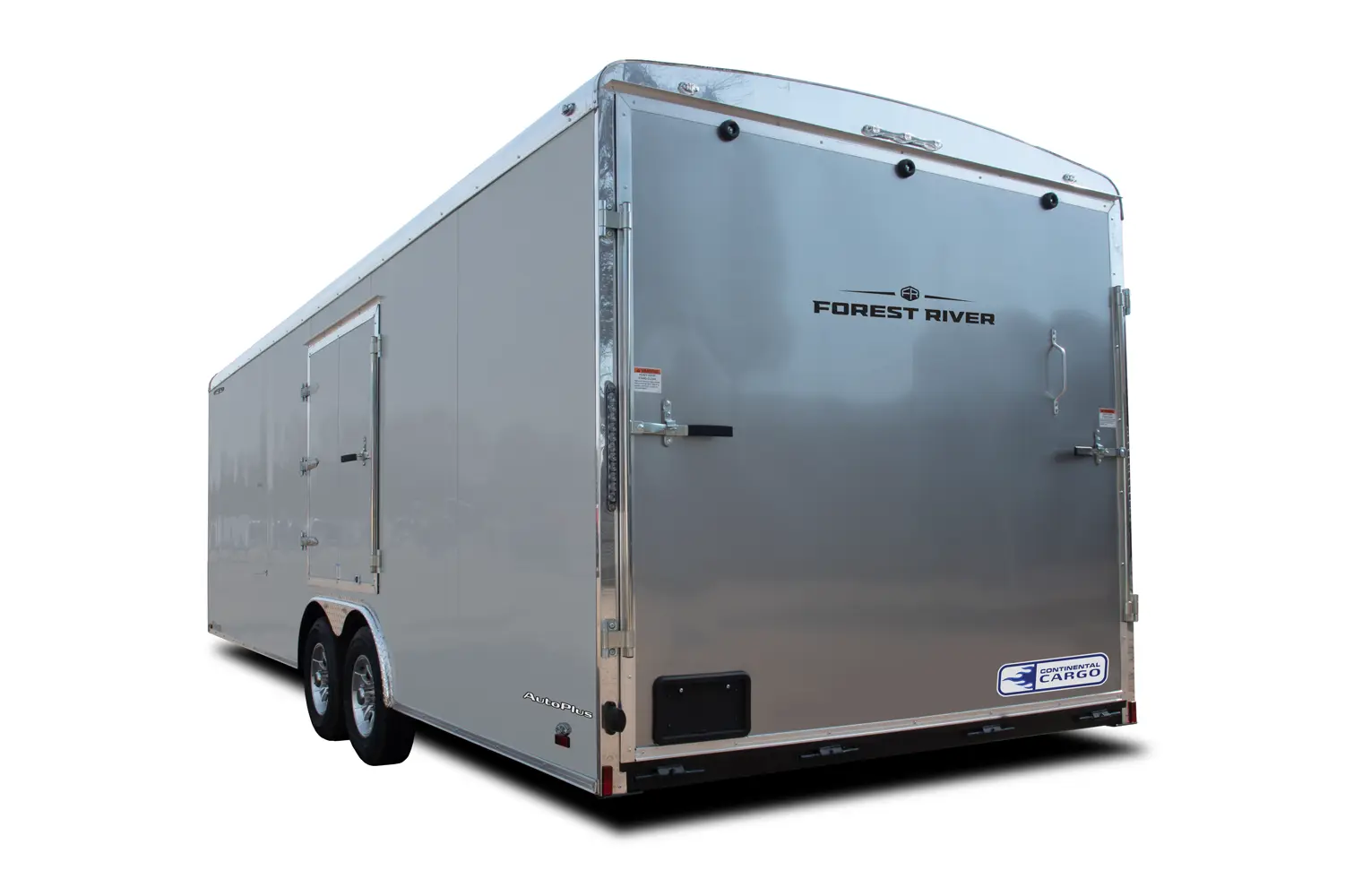

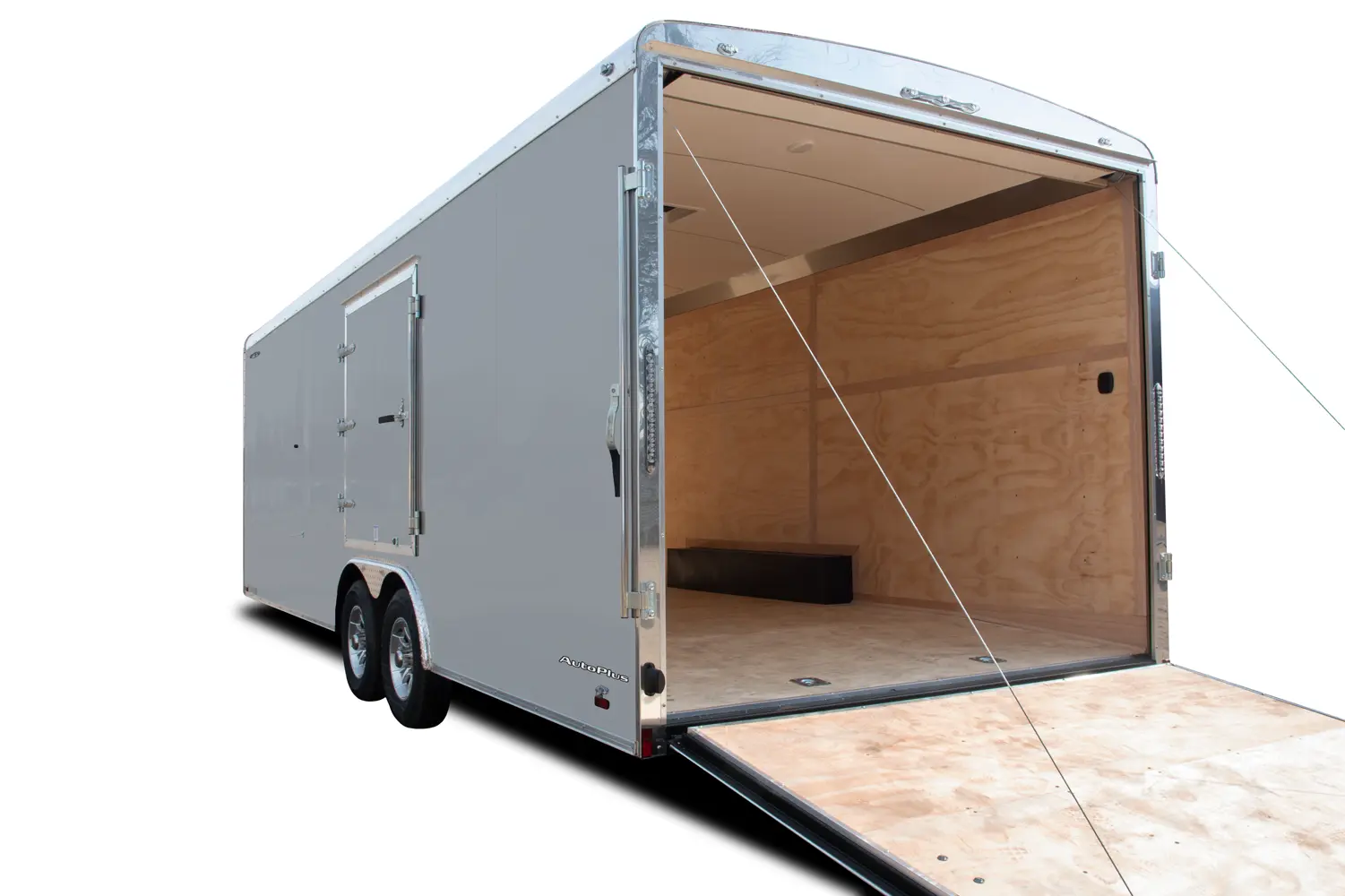

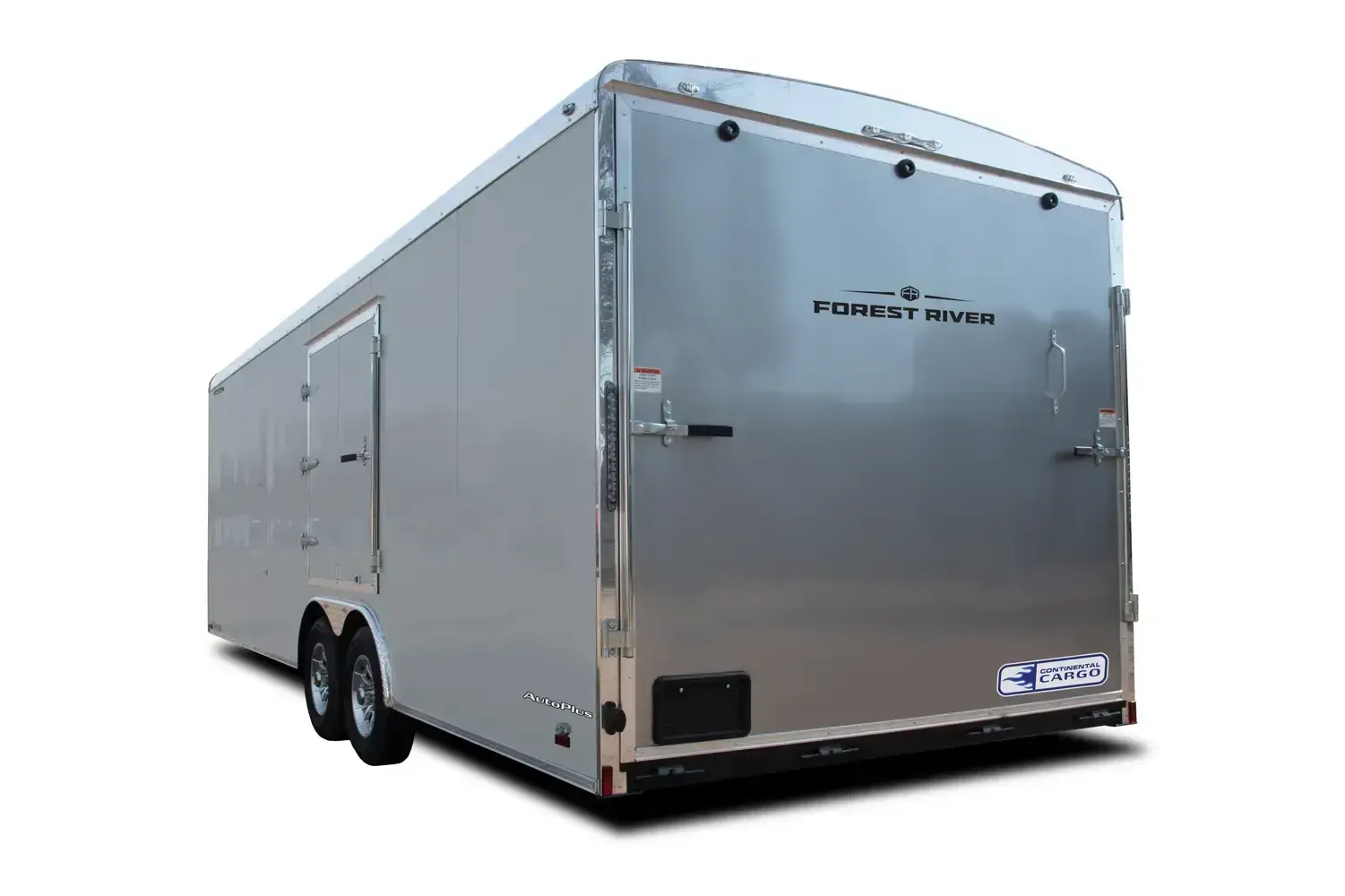

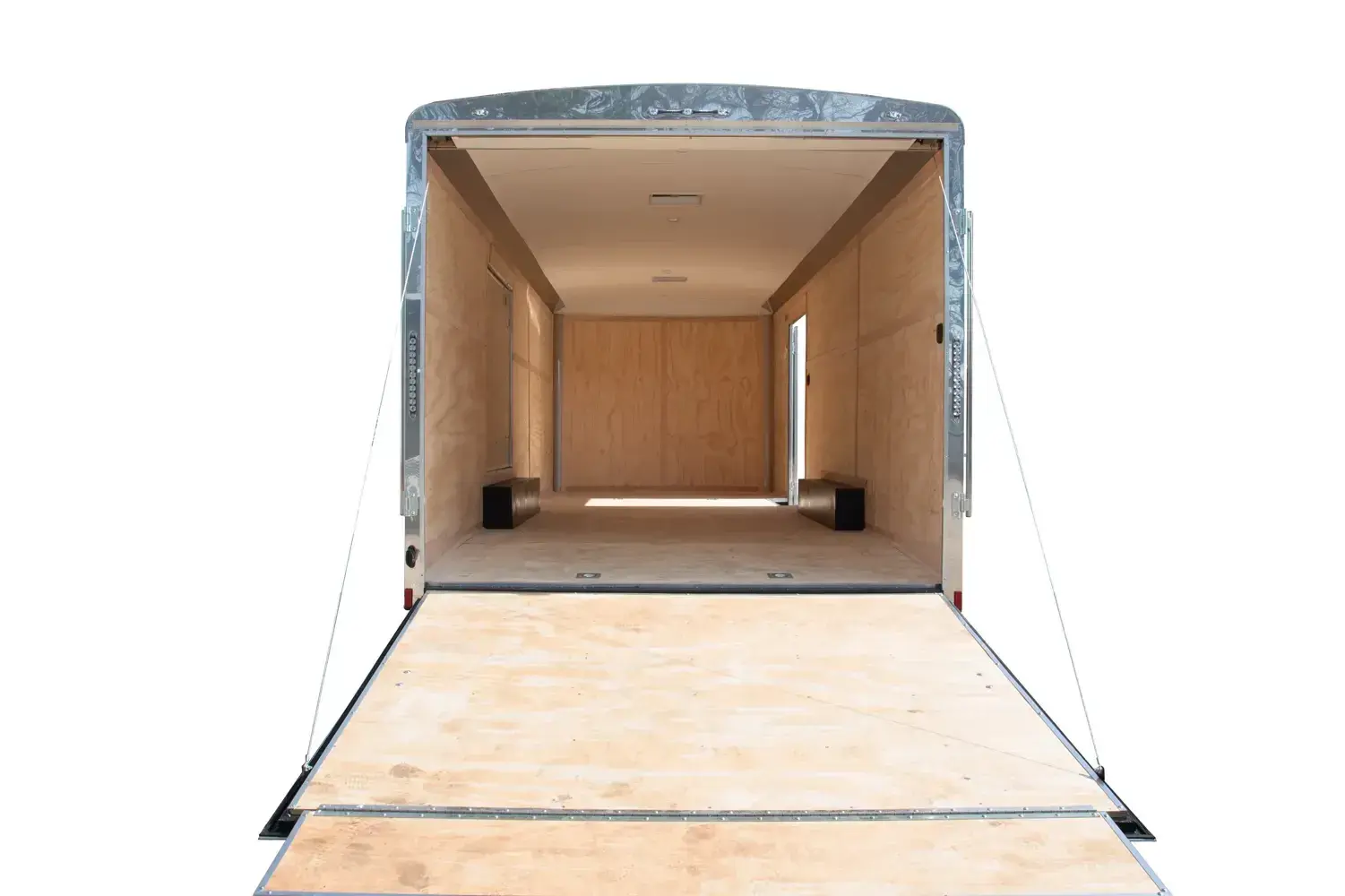

- Ramp Door with Spring Assist
- No-Show Beavertail

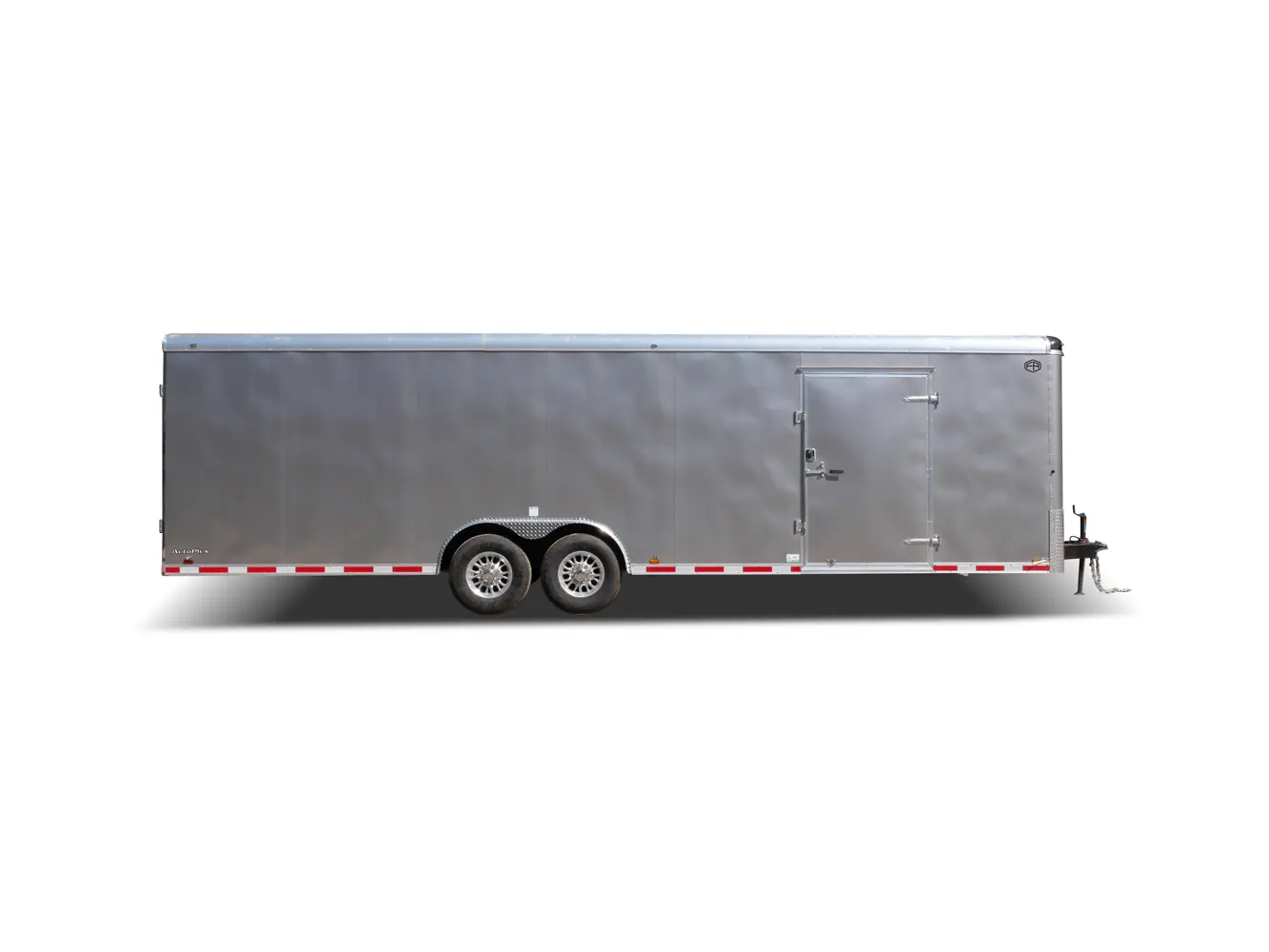

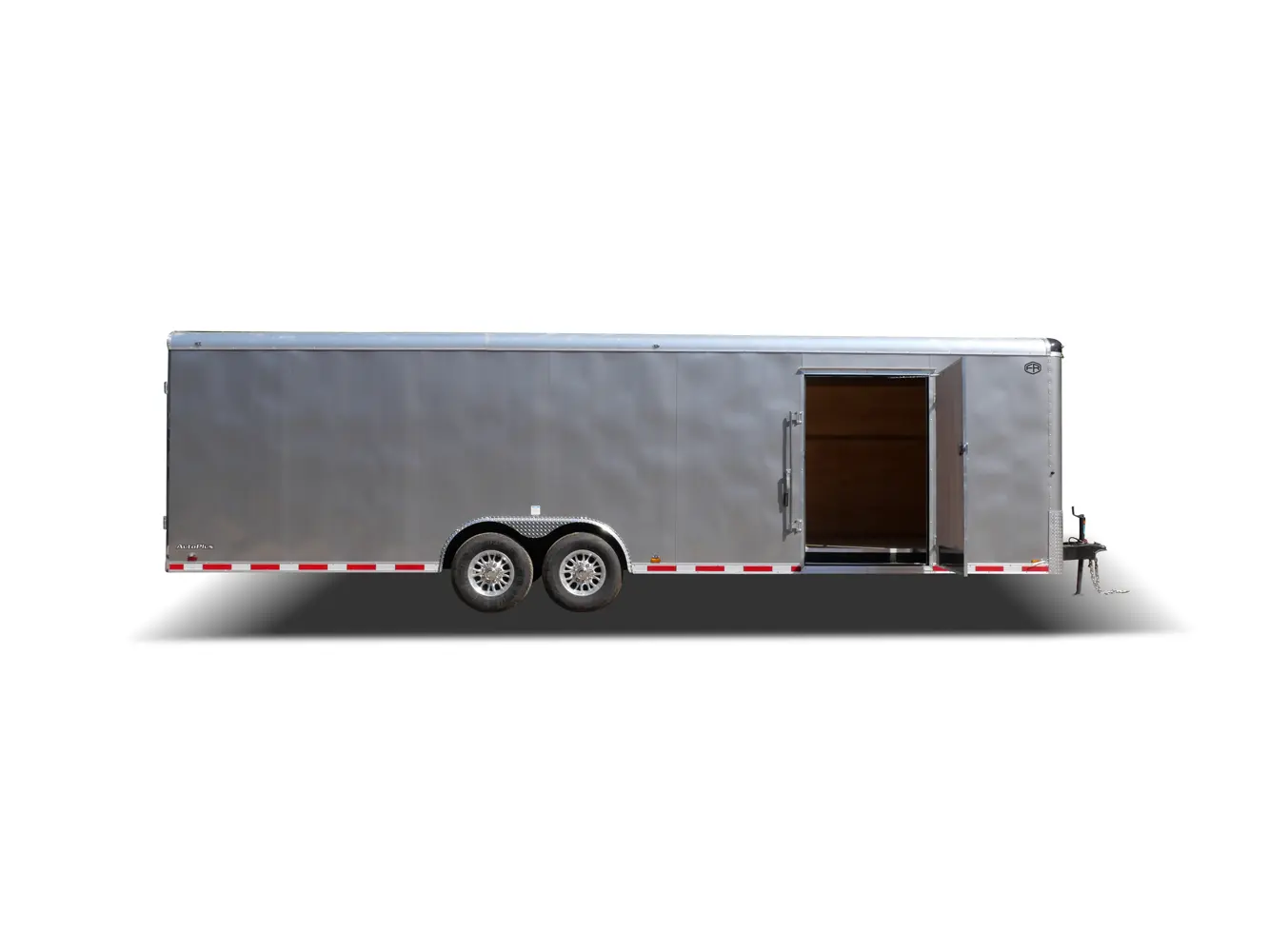

- 48" Side Door with Steel Step
- Flushlock on Side Door
- Semi-Style Camlock Door Latches
- Safety-Spring Chains on Side Door
- Door Hold-Backs on All Doors
- Torsion Wide-Track Axle
- All-Wheel Electric Brakes withBreakaway
- 12-Volt Breakaway Switch withBattery
- E-Z Lube Hubs with Grease Caps
- Aluminum Wheels
- Chrome Center Caps
- Radial Tires
- Steel Sealed Sidewalls
- 4 – LED Dome Lights
- 2 – 12 Volt Switches
- 2 – Roof Vents & 4 – 5,000 lb. D-Rings
- Aluminum Roof
- .080 Mill-Finish Aluminum Top Wrap

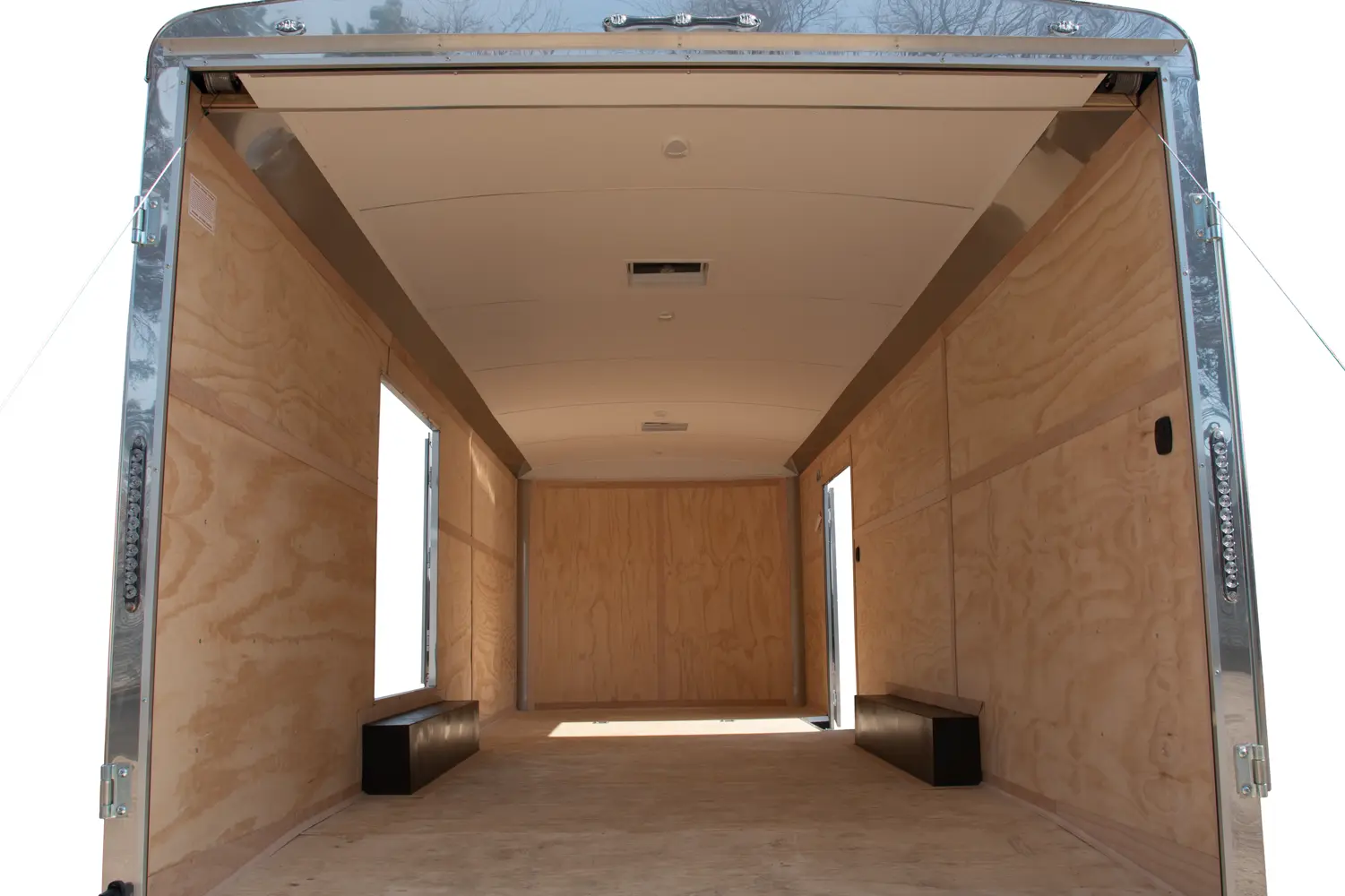

- 3/8" Plywood Wall Liner with LauanTrim
- White Vinyl Ceiling
- Exterior ATP Fenders
- TPO Radius Front Cap
- DOT Approved Lighting
- Clear Lens LED Clearance Lights
- Clear Lens LED Strip Tail Lights
- Molded License Plate Holder and Light
- .030 Aluminum Exterior (Avail. in 14Colors)
- Screwless Exterior Metal
- Anodized Rear Hoop
- 3/4" Plywood Floor
- Urethane Coating on Tongue and RearMember
- Tongue Jack w/ Sand Pad
- Undercoated Frame
- Welded Safety Chains
- Full-Color Decals
- Grease Zerks on Rear Ramp Hinges
- 24" ATP Stoneguard
Specifications
| AP8518TA2 | AP8520TA2 | AP8522TA2 | AP8524TA2 | AP8518TA3 | AP8520TA3 | AP8522TA3 | AP8524TA3 | AP8526TA3 | AP8528TA3 | AP8530TA3 | AP8532TA3 | APG/F8526TA3 | APG/F8528TA3 | APG/F8530TA3 | APG/F85532TA3 | APG/F8534TTA3 | APG/F8536TTA3 | APG/F8538TTA3 | APG/F8540TTA4 | APG/F8542TTA4 | APG/F8544TTA4 | APG/F8546TTA4 | APG/F8548TTA4 | |
| GVWR: | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 14700 lb. | 14700 lb. | 14700 lb. | 18000 lb. | 18000 lb. | 18000 lb. | 18000 lb. | 18000 lb. |
| Payload Capacity: | 4135 | 3910 | 3685 | 3460 | 6600 | 6375 | 6150 | 5925 | 5345 | 5025 | 4705 | 4386 | 4630 | 4480 | 4330 | 4180 | 8480 | 8180 | 7880 | 10580 | 10180 | 9780 | 9380 | 8980 |
| Exterior Length: | 21' 10" | 23' 10" | 25' 10" | 27' 10" | 21' 10" | 23' 10" | 25' 10" | 27' 10" | 29' 10" | 31' 10" | 33' 10" | 35' 10" | 21' 10" | 23' 10" | 25' 10" | 27' 10" | 34' 6" | 36' 6" | 38' 6" | 40' 6" | 42' 6" | 44' 6" | 46' 6" | 48' 6" |
| Exterior Width: | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" |
| Exterior Height: | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 9' 0" | 9' 0" | 9' 0" | 9' 0" | 9' 0" |
| Interior Length: | 18' 7" | 20' 7" | 22' 7" | 24' 7" | 18' 7" | 20' 7" | 22' 7" | 24' 7" | 26' 7" | 28' 7" | 30' 7" | 32' 7" | 26' 4" | 28' 4" | 30' 4" | 32' 4" | 34' 4" | 36' 4" | 38' 4" | 40' 4" | 42' 4" | 44' 4" | 46' 4" | 48' 4" |
| Interior Width: | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" |
| Interior Height: | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 10" | 6' 10" | 6' 10" | 6' 10" | 6' 10" |
| Rear Door Type: | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp |
| Rear Door Width: | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" | 7' 5" |
| Rear Door Height: | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" |
| Coupler Size: | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" |
| Curb Weight: | 2865 | 3090 | 3315 | 3540 | 3200 | 3425 | 3650 | 3875 | 4455 | 4775 | 5095 | 5415 | 5170 | 5320 | 5470 | 5620 | 6220 | 6520 | 6820 | 7420 | 7820 | 8220 | 8620 | 9020 |
| Hitch Weight: | 287 | 309 | 332 | 354 | 320 | 343 | 365 | 388 | 446 | 478 | 510 | 542 | 1034 | 1064 | 1094 | 1124 | 1244 | 1304 | 1364 | 1484 | 1564 | 1644 | 1724 | 1804 |
| Hitch Height: | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 22" | 22" | 22" | 22" | 40" | 40" | 40" | 40" | 40" | 40" | 40" | 40" | 40" | 40" | 40" | 40" |
| Platform Height: | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 20 |
| Axle: | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 3-5,200 | 3-5,200 | 3-5,200 | 3-6,000 | 3-6,000 | 3-6,000 | 3-6,000 | 3-6,000 |
| Suspension: | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion |
| Brakes: | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric |
| Tires: | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST235/80R16/E | ST235/80R16/E | ST235/80R16/E | ST235/80R16/E | ST235/80R16/E |
| Wheels: | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 8 Bolt | 8 Bolt | 8 Bolt | 8 Bolt | 8 Bolt |
| Main Frame: | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 10" I-Beam | 8" I-Beam | 10" I-Beam | 10" I-Beam | 10" I-Beam | 10" I-Beam | 10" I-Beam |
| Floor (16" O/C): | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood |
| Walls (16" O/C): | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood |
