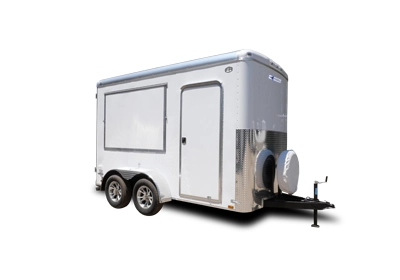

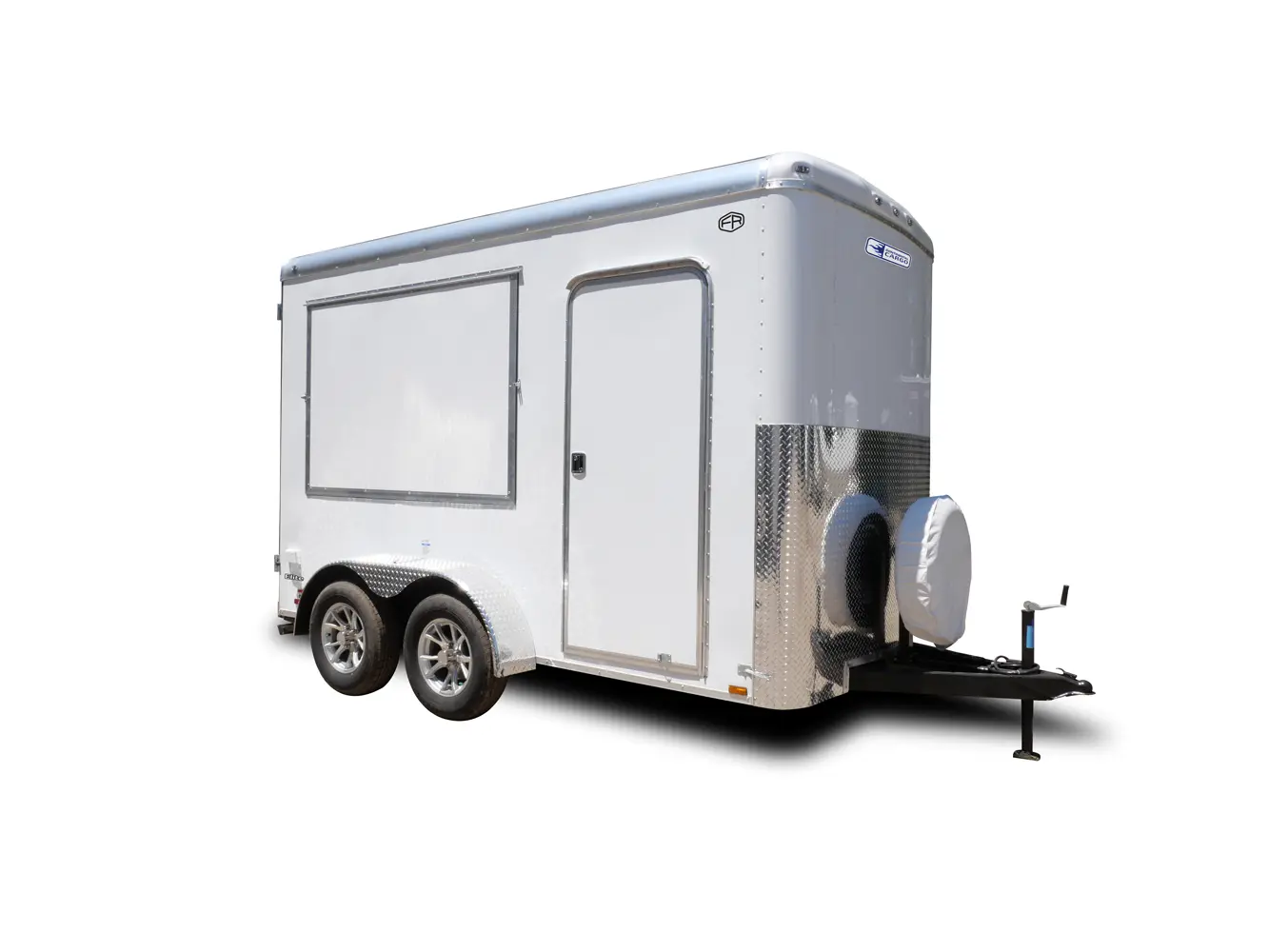

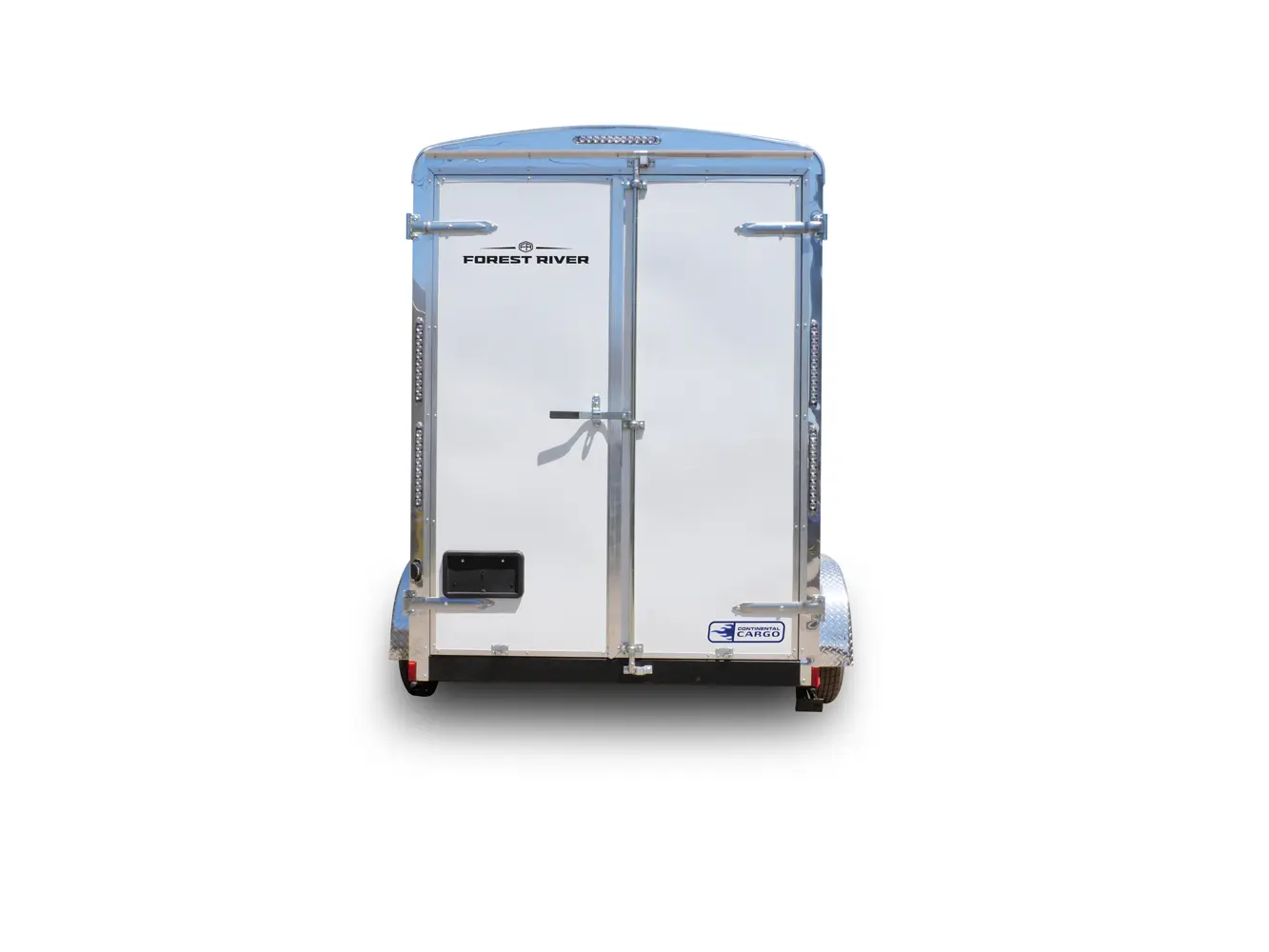

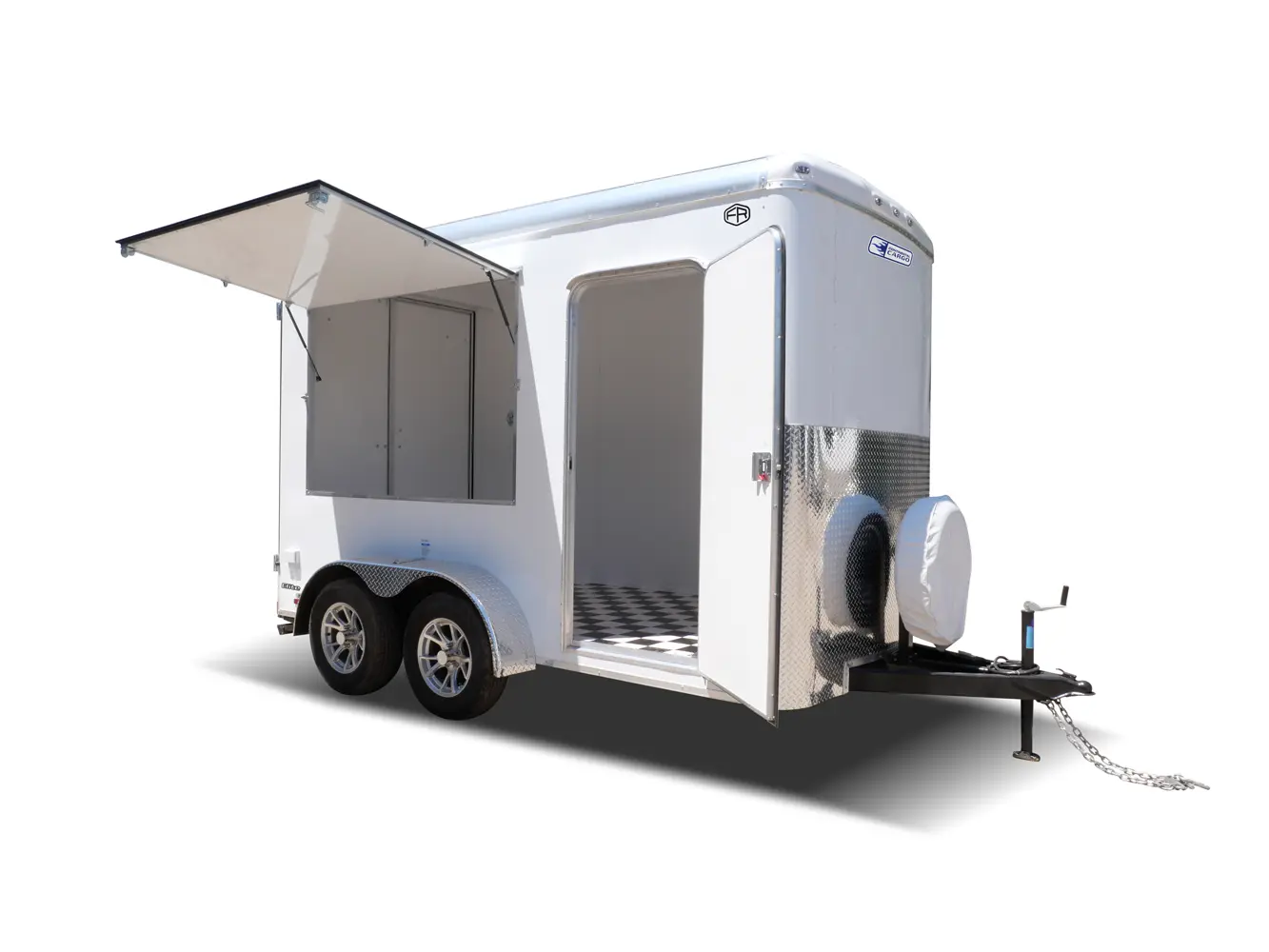

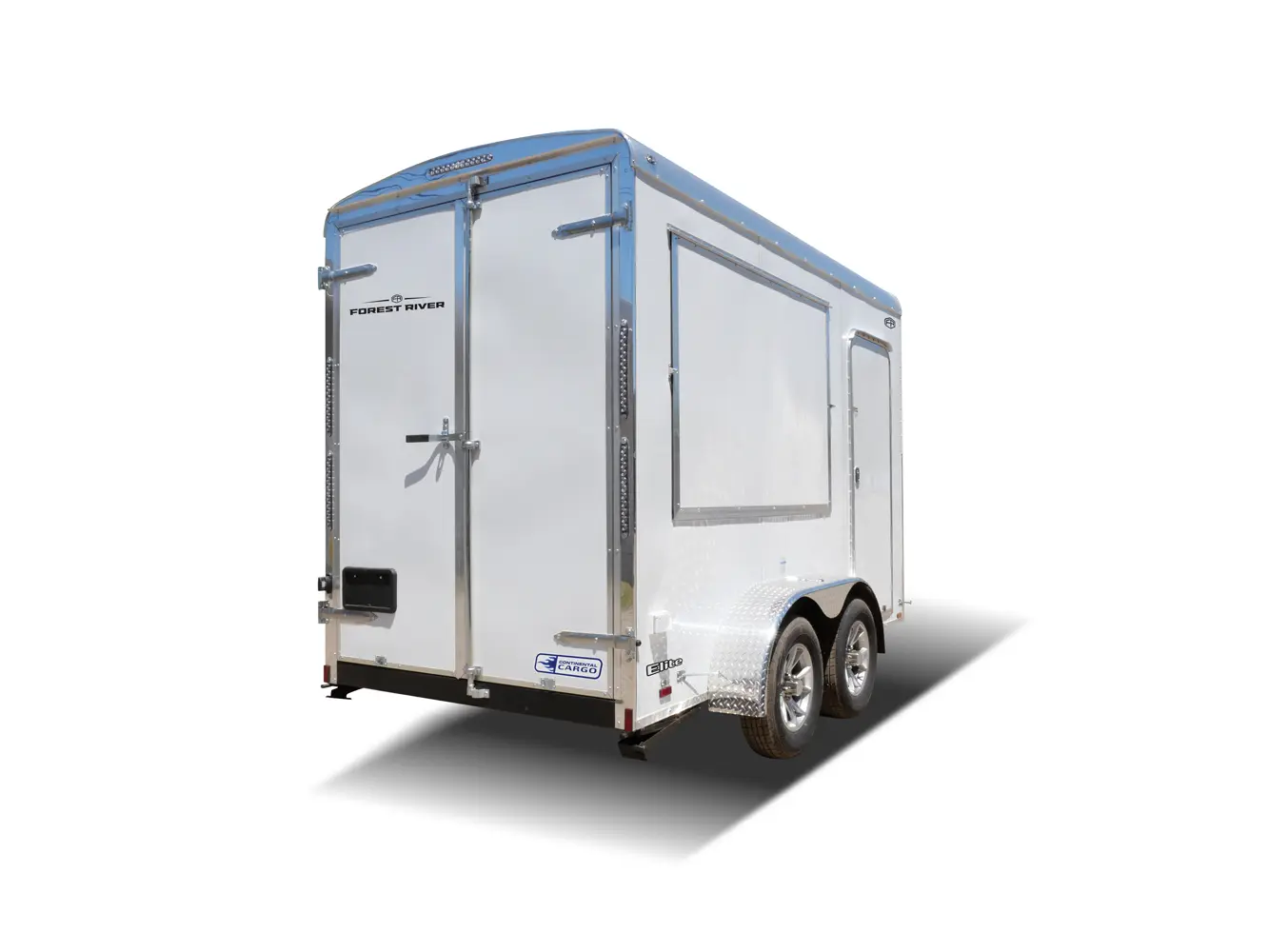

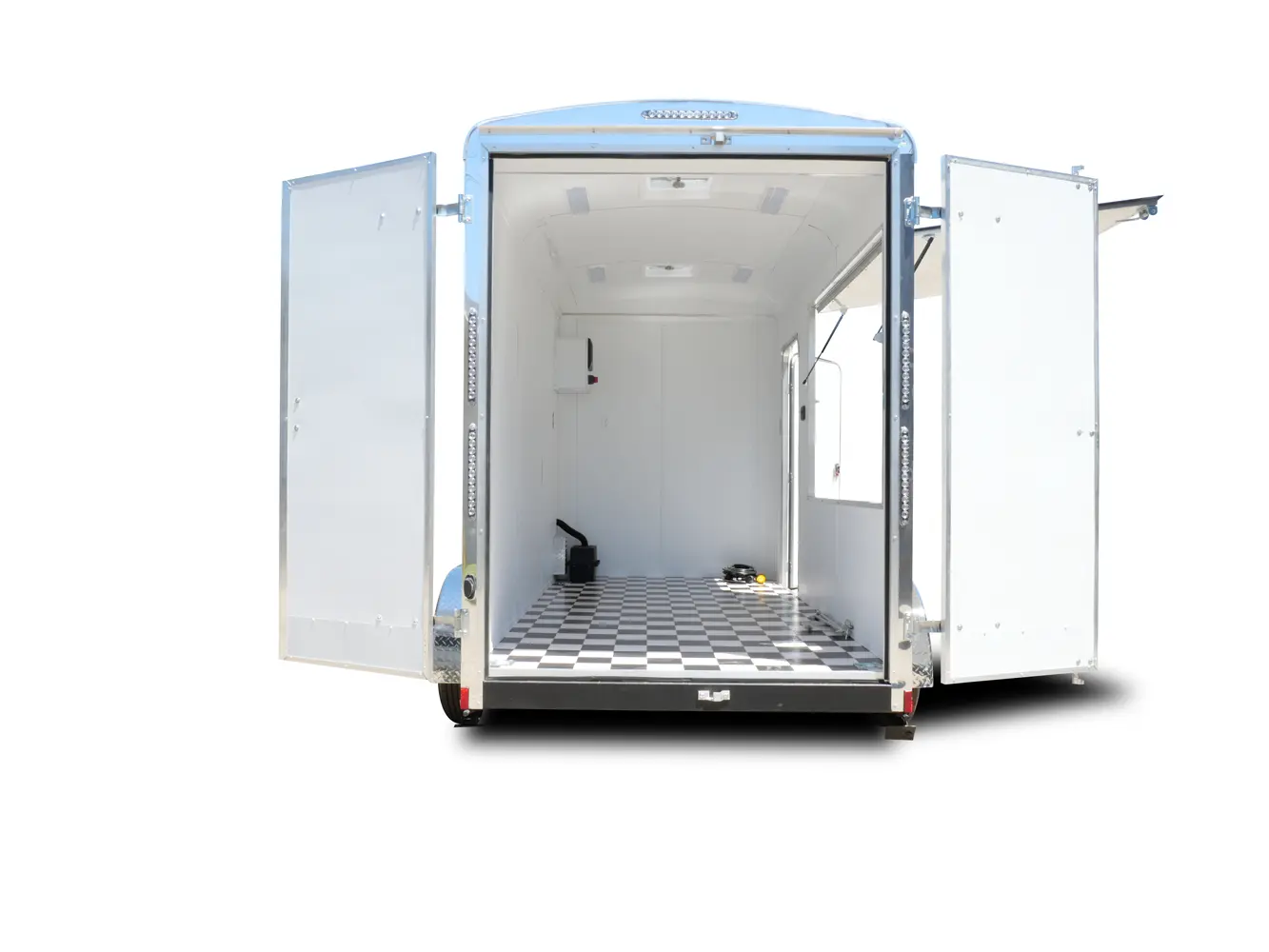

Explore Elite Series
Elite Series cargo trailers range in size from a 5’ x 8’ single axle 8’ x 48’ triple axle gooseneck model. Electric brakes are standard on 6' wide tandem axle trailers and larger. The 5’ - 7’ wide single axle models offer a standard payload capacity of 1,460 to 2,360 lb., tandem axle bumper pull trailers offer a standard payload of 3,110 - 6,210 lb., while the gooseneck trailers offer a payload capacity of 4550 - 11,500 lb.
-
- Rear Ramp Door
- C/S Door (24" on 5 wide, 32" on6 & 7 wide, 36" on 8 wide)
- Flushlock on C/S Door
- 2 - LED Dome Lights
- 1 - Wall Switch
- Non-Powered Roof Vent
- Semi-Style Camlock Door Latch
- Door Hold-Backs on Rear Doors
- Torsion Axle
- E- Z Lube Hubs with Grease Caps
- Aluminum Wheels
- Chrome Center Caps
- Radial Tires
- Aluminum Roof
- .080 Mill-Finish Aluminum Top Wrap
- 3/8" Plywood Wall Liner with Lauan Trim
- White Vinyl Ceiling
- TPO Radius Front Cap
- 24" ATP Stoneguard
- 3/4" Plywood Floor
- Molded License Plate Holderand Light
- .030 Aluminum Exterior (Available in 14 Colors)
- Screwless Exterior Metal
- Urethane Coating on Tongue andRear Member
- Clear Lens LED Clearance Lights
- Clear Lens LED Strip Tail Lights
- Exterior ATP Fenders
- Anodized Rear Hoop
- Tongue Jack w/ Sand Pad
- Welded Safety Chains
- Full-Color Decals
Specifications
| CC58SA | CC510SA | CC512SA | CC514SA | CC68SA | CC610SA | CC612SA | CC614SA | CC610TA2 | CC612TA2 | CC614TA2 | CC616TA2 | CC618TA2 | CC620TA2 | CC622TA2 | CC624TA2 | CC78SA | CC710SA | CC712SA | CC714SA | CC710TA2 | CC712TA2 | CC714TA2 | CC716TA2 | CC718TA2 | CC720TA2 | CC722TA2 | CC724TA2 | CCG/F718TA3 | CCG/F720TA3 | CCG/F722TA3 | CCG/F724TA3 | CCG/F726TA3 | CCG/F728TA3 | CCG/F730TA3 | CCG/F732TA3 | CC810TA2 | CC812TA2 | CC814TA2 | CC816TA2 | CC818TA2 | CC820TA2 | CC822TA2 | CC824TA2 | CC826TA3 | CC828TA3 | CC830TA3 | CC832TA3 | CCG/F826TA3 | CCG/F828TA3 | CCG/F830TA3 | CCG/F832TA3 | CCG/F834TTA3 | CCG/F836TTA3 | CCG/F838TTA3 | CCG/F840TTA4 | CCG/F842TTA4 | CCG/F844TTA4 | CCG/F846TTA4 | CCG/F848TTA4 | |
| GVWR: | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 3500 lb. | 3500 lb. | 3500 lb. | 3500 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 14700 lb. | 14700 lb. | 14700 lb. | 18000 lb. | 18000 lb. | 18000 lb. | 18000 lb. | 18000 lb. |
| Payload Capacity: | 1950 | 1830 | 1710 | 1590 | 1890 | 1790 | 1690 | 1590 | 1950 | 1950 | 1950 | 1950 | 1950 | 1950 | 1950 | 1950 | 2360 | 2060 | 1760 | 1460 | 5460 | 5160 | 4860 | 4510 | 4160 | 3810 | 3460 | 3110 | 6400 | 6250 | 6100 | 5950 | 5800 | 5650 | 5500 | 5350 | 4880 | 4720 | 4560 | 4400 | 4240 | 4080 | 3920 | 3760 | 6060 | 5860 | 5660 | 5460 | 5000 | 4800 | 4600 | 4400 | 9100 | 8900 | 8700 | 11500 | 11250 | 11000 | 10750 | 10500 |
| Exterior Length: | 11' 10" | 13' 10" | 15' 10" | 17' 10" | 11' 10" | 13' 10" | 15' 10" | 17' 10" | 13' 10" | 15' 10" | 17' 10" | 19' 10" | 21' 10" | 23' 10" | 25' 10" | 27' 10" | 11' 10" | 13' 10" | 15' 10" | 17' 10" | 13' 10" | 15' 10" | 17' 10" | 19' 10" | 21' 10" | 23' 10" | 25' 10" | 27' 10" | 18' 6" | 20' 6" | 22' 6" | 24' 6" | 26' 6" | 28' 6" | 30' 6" | 32' 6" | 13' 10" | 15' 10" | 17' 10" | 19' 10" | 21' 10" | 23' 10" | 25' 10" | 27' 10" | 29' 10" | 31' 10" | 33' 10" | 35' 10" | 26' 6" | 28' 6" | 30' 6" | 32' 6" | 34' 6" | 36' 6" | 38' 6" | 40' 6" | 42' 6" | 44' 6" | 46' 6" | 48' 6" |
| Exterior Width: | 7' 0" | 7' 0" | 7' 0" | 7' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" |
| Exterior Height: | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 8' 3" | 8' 3" | 8' 3" | 8' 3" | 8' 5" | 8' 5" | 8' 5" | 8' 5" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 9' 0" | 9' 0" | 9' 0" | 9' 0" | 9' 0" |
| Interior Length: | 8' 7" | 10' 7" | 12' 7" | 14' 7" | 8' 7" | 10' 7" | 12' 7" | 14' 7" | 10' 7" | 12' 7" | 14' 7" | 16' 7" | 18' 7" | 20' 7" | 22' 7" | 24' 7" | 8' 5" | 10' 5" | 12' 5" | 14' 5" | 10' 7" | 12' 7" | 14' 7" | 16' 7" | 18' 7" | 20' 7" | 22' 7" | 24' 7" | 18' 4" | 20' 4" | 22' 4" | 24' 4" | 26' 4" | 28' 4" | 30' 4" | 32' 4" | 10' 7" | 12' 7" | 14' 7" | 16' 7" | 18' 7" | 20' 7" | 22' 7" | 24' 7" | 26' 7" | 28' 7" | 30' 7" | 32' 7" | 26' 4" | 28' 4" | 30' 4" | 32' 4" | 34' 4" | 36' 4" | 38' 4" | 40' 4" | 42' 4" | 44' 4" | 46' 4" | 48' 4" |
| Interior Width: | 4' 8" | 4' 8" | 4' 8" | 4' 8" | 5' 8" | 5' 8" | 5' 8" | 5' 8" | 5' 8" | 5' 8" | 5' 8" | 5' 8" | 5' 8" | 5' 8" | 5' 8" | 5' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" |
| Interior Height: | 4' 10" | 4' 10" | 4' 10" | 4' 10" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" |
| Rear Door Type: | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp |
| Rear Door Width: | 4' 0" | 4' 0" | 4' 0" | 4' 0" | 5' 0" | 5' 0" | 5' 0" | 5' 0" | 5' 0" | 5' 0" | 5' 0" | 5' 0" | 5' 0" | 5' 0" | 5' 0" | 5' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" |
| Rear Door Height: | 4' 2" | 4' 2" | 4' 2" | 4' 2" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 5' 10" | 5' 10" | 5' 10" | 5' 10" | 5' 10" | 5' 9" | 5' 9" | 5' 9" | 5' 9" | 5' 9" | 5' 9" | 5' 9" | 5' 9" | 5' 11" | 5' 11" | 5' 11" | 5' 11" | 5' 11" | 5' 11" | 5' 11" | 5' 11" | 5' 11" | 5' 11" | 5' 11" | 5' 11" | 5' 9" | 5' 9" | 5' 9" | 5' 9" | 5' 9" | 5' 9" | 5' 9" | 6' 1" | 6' 1" | 6' 1" | 6' 1" | 6' 1" |
| Coupler Size: | 2" | 2" | 2" | 2" | 2" | 2" | 2" | 2" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" | 2-5/16" / 2" |
| Curb Weight: | 1040 | 1160 | 1280 | 1400 | 1100 | 1200 | 1300 | 1400 | 1040 | 1040 | 1040 | 1040 | 1040 | 1040 | 1040 | 1040 | 1140 | 1440 | 1740 | 2040 | 1540 | 1840 | 2140 | 2490 | 2840 | 3190 | 3540 | 3890 | 3400 | 3550 | 3700 | 3850 | 4000 | 4150 | 4300 | 4450 | 2120 | 2280 | 2440 | 2600 | 2760 | 2920 | 3080 | 3240 | 3740 | 3940 | 4140 | 4340 | 4800 | 5000 | 5200 | 5400 | 5600 | 5800 | 6000 | 6500 | 6750 | 7000 | 7250 | 7500 |
| Hitch Weight: | 104 | 116 | 128 | 140 | 110 | 120 | 130 | 140 | 172 | 184 | 196 | 208 | 222 | 236 | 250 | 264 | 114 | 144 | 174 | 204 | 154 | 184 | 214 | 249 | 284 | 319 | 354 | 389 | 680 | 710 | 740 | 770 | 800 | 830 | 860 | 890 | 212 | 228 | 244 | 260 | 276 | 292 | 308 | 324 | 374 | 394 | 414 | 434 | 960 | 1000 | 1040 | 1080 | 1120 | 1160 | 1200 | 1300 | 1350 | 1400 | 1450 | 1500 |
| Hitch Height: | 17" | 17" | 17" | 17" | 17" | 17" | 17" | 17" | 18" | 18" | 18" | 18" | 18" | 18" | 18" | 18" | 18" | 18" | 18" | 18" | 18" | 18" | 18" | 20" | 20" | 20" | 20" | 20" | 40" | 40" | 40" | 40" | 40" | 40" | 40" | 40" | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 22" | 22" | 22" | 22" | 40" | 40" | 40" | 40" | 40" | 40" | 40" | 40" | 40" | 40" | 40" | 40" |
| Platform Height: | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 18 | 18 | 18 | 18 | 20 | 20 | 20 | 20 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 20 | 20 | 20 | 20 | 20 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 24 | 24 | 24 | 24 | 24 |
| Axle: | 1-2,990 | 1-2,990 | 1-2,990 | 1-2,990 | 1-2,990 | 1-2,990 | 1-2,990 | 1-2,990 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-2,990 | 1-3,500 | 1-3,500 | 1-3,500 | 1-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 3-5,200 | 3-5,200 | 3-5,200 | 3-6,000 | 3-6,000 | 3-6,000 | 3-6,000 | 3-6,000 |
| Suspension: | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion | Torsion |
| Brakes: | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Electric | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric |
| Tires: | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST205/75R15/c | ST205/75R15/c | ST205/75R15/c | ST205/75R15/c | ST205/75R15/c | ST205/75R15/c | ST205/75R15/c | ST205/75R15/c | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST235/80R16/E | ST235/80R16/E | ST235/80R16/E | ST235/80R16/E | ST235/80R16/E |
| Wheels: | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 8 Bolt | 8 Bolt | 8 Bolt | 8 Bolt | 8 Bolt |
| Main Frame: | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 4" Tube | 4" Tube | 4" Tube | 4" Tube | 6" Tube | 6" Tube | 6" Tube | 6" Tube | 4" Tube | 4" Tube | 4" Tube | 4" Tube | 4" Tube | 4" Tube | 4" Tube | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 10" I-Beam | 10" I-Beam | 10" I-Beam | 10" I-Beam | 10" I-Beam |
| Floor (16" O/C): | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood |
| Walls (16" O/C): | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood |
