EXPLORE Open Aluminum Utility Trailer

share icon
Share


Open Aluminum trailers range in size from a 5’ x 8’ single axle to 7’ x 18’ tandem axle car hauler. The standard payload capacities range from 1,800 to 5,985 lb. with open utility trailers and 5,400 lb. on the 7’ x 18’ open car hauler. The standard flooring is constructed from 5/4 x 6" treated wood planks.

VIEW THE TOP REASONS TO BUY CONTINENTAL CARGO

Care Camps, fighting cancer and making memories

Specifications

Print

Floorplan:CCOA510SACCOA58SACCOA6510SACCOA6512SACCOA6514SACCOA6514TA2CCOA6516TA2CCOA6518TA2
GVWR:2990 lb.2990 lb.2990 lb.2290 lb.2990 lb.7000 lb.7000 lb.7000 lb.
Payload Capacity:2390 lb.2440 lb.2290 lb.2240 lb.2190 lb.5985 lb.5840 lb.5695 lb.
Exterior Length:14' 0"12' 0"14' 0"16' 0"18' 0"18' 0"20' 0"22' 0"
Exterior Width:6' 10"6' 10"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"
Exterior Height:0' 0"0' 0"0' 0"0' 0"0' 0"0' 0"0' 0"0' 0"
Interior Length:10' 0"8' 0"10' 0"12' 0"14' 0"14' 0"16' 0"18' 0"
Interior Width:5' 0"5' 0"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"
Interior Height:0' 0"0' 0"0' 0"0' 0"0' 0"0' 0"0' 0"0' 0"
Rear Door Type:Removable RampRemovable RampRemovable RampRemovable RampRemovable RampRemovable RampRemovable RampRemovable Ramp
Rear Door Width:5' 5' 6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"
Rear Door Height:
Coupler Size:2"2"2"2"2"2"2"2"
Curb Weight:600 lb.550 lb.700 lb.750 lb.800 lb.1015 lb.1160 lb.1305 lb.
Hitch Weight:60 lb.55 lb.70 lb.75 lb.80 lb.90 lb.100 lb.115 lb.
Hitch Height:17"17"17"17"17"18"18"18"
Platform Height:19"19"19"19"19"20"20"20"
Axle:Single Leaf SpringSingle Leaf SpringSingle Leaf SpringSingle Leaf SpringSingle Leaf SpringTandem Leaf SpringTandem Leaf SpringTandem Leaf Spring
Brakes:OptionalOptionalOptionalOptionalOptionalElectricElectricElectric
Tires:ST205/75D15ST205/75D15ST205/75D15ST205/75D15ST205/75D15ST205/75D15ST205/75D15ST205/75D15
Wheels:5-Bolt5-Bolt5-Bolt5-Bolt5-Bolt5-Bolt5-Bolt5-Bolt
Main Frame:4" Tube4" Tube4" Tube4" Tube4" Tube5" Tube5" Tube5" Tube
Floor:Treated 5/4 x 8" PlanksTreated 5/4 x 8" PlanksTreated 5/4 x 8" PlanksTreated 5/4 x 8" PlanksTreated 5/4 x 8" PlanksTreated 5/4 x 8" PlanksTreated 5/4 x 8" PlanksTreated 5/4 x 8" Planks
Walls:15″ Side Rails15″ Side Rails15″ Side Rails15″ Side Rails15″ Side Rails15″ Side Rails15″ Side Rails15″ Side Rails

Features & Options

Print
  • Aluminum Tube Frame
  • 15" Side Rails

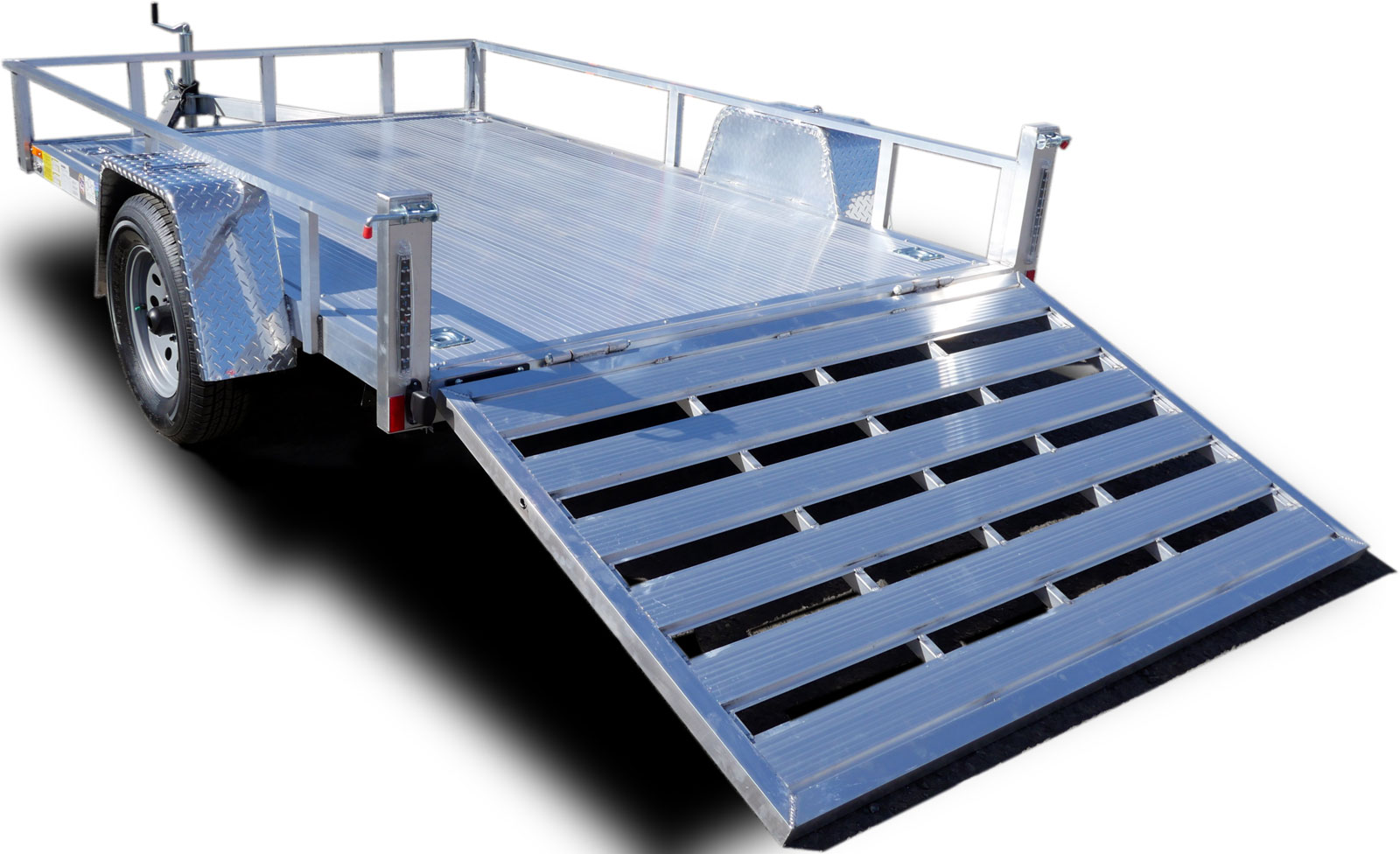

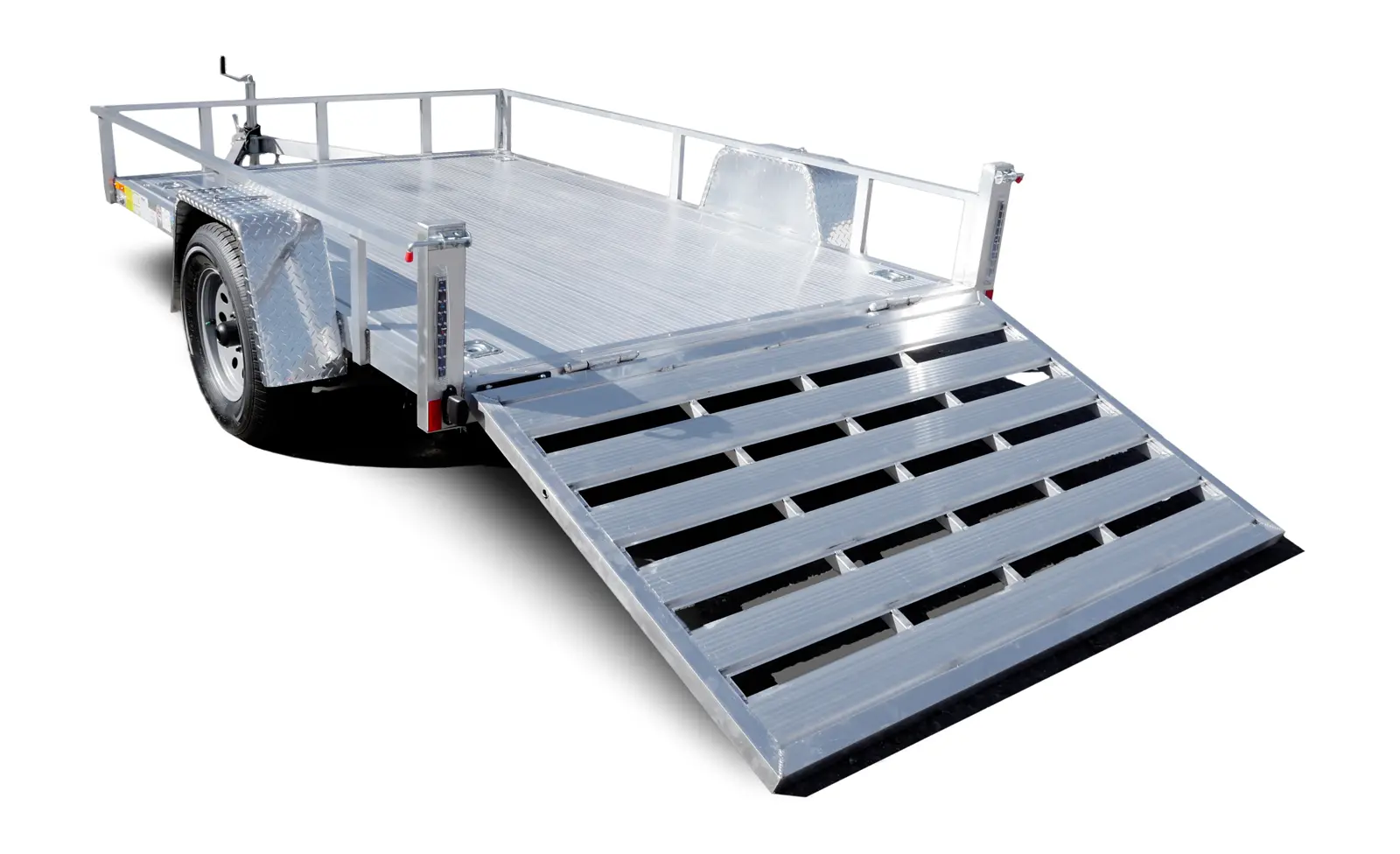

  • Removable Rear Ramp
  • Treated Wood Deck
  • Electric Brakes w/Breakaway and Battery (Tandem Axle Models)
  • E-Z Lube Hubs
  • Silver Powder-Coat Wheels
  • Safety Chains
  • Aluminum Tube Tongue
  • LED Lights
  • Spring Loaded Gate Latches
  • Silver Jack Coupler
  • Spare Tire Carrier with Cover (Tongue Mount)
  • Fold-Down Stabilizer Jacks (1,000 lb. Capacity)
  • Extruded Aluminum Floor
  • ST205/75D15 Spare Tire with 5-Bolt Silver Wheel
  • Aluminum Wheel with Center Cap and Lug Nuts (5-Bolt; 3.500 lb.)
  • Motorcycle Wheel Chocks (Removable, Shipped Loose)
  • Recessed Floor-Mount D-Ring Tie-Down (Installed)
  • Mesh Enclosed Sides
  • ATP Enclosed Sides
  • 48" Side Ramp Gate
  • 60" Side Ramp Gate
  • Reinforce Existing Standard Rear Ramp Door
